4. Select the Charger Mode drop-down list to set the desired charger
mode (Figure 2-7). Current Mode displays the charging battery:
a, b, or none (off).
• Off – receiver will not charge batteries
• Charge A – receiver charges only battery A
• Charge B – receiver charges only battery B
• Auto – receiver automatically detects and charges both
batteries

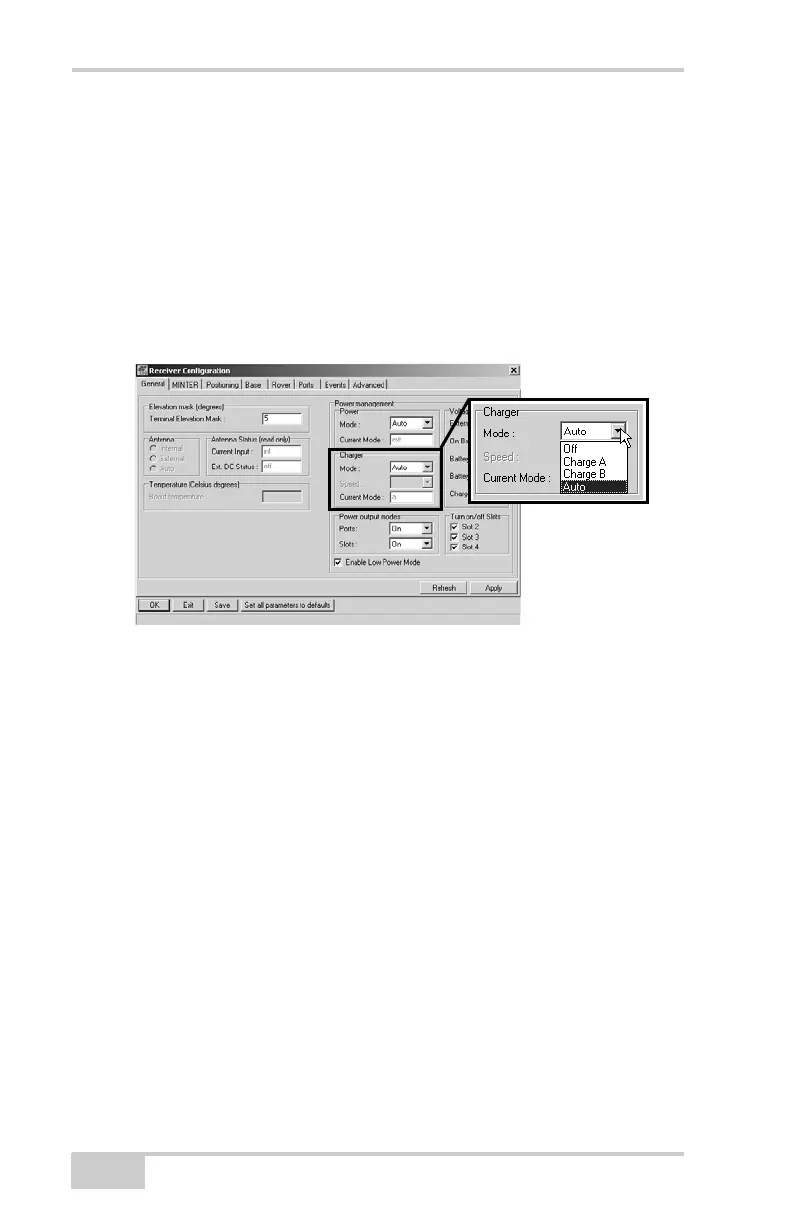

Figure 2-7. Select Charger Mode
5. Select the Power output modes Ports drop-down list to set power
output on the serial ports (Figure 2-8 on page 2-11).
• On – the power board will deliver voltage on pin one of all
serial port connectors when the receiver is turned on. If the
receiver is turned off, there will be no power on any ports.
• Off – power will be absent even if the receiver is on.
• Always – the power board will deliver voltage on pin one of
all serial port connectors even if the receiver is turned off.
6. Select the Power output modes Slots drop-down list to set power
output on internal slots (Figure 2-8 on page 2-11).
• On – all slots are powered if the receiver is turned on
• Off – internal slots will not be powered even if the receiver is
turned on
• Always – internal slots will be powered even if the receiver is
turned off
