Power Management
P/N 7010-0526
2-11

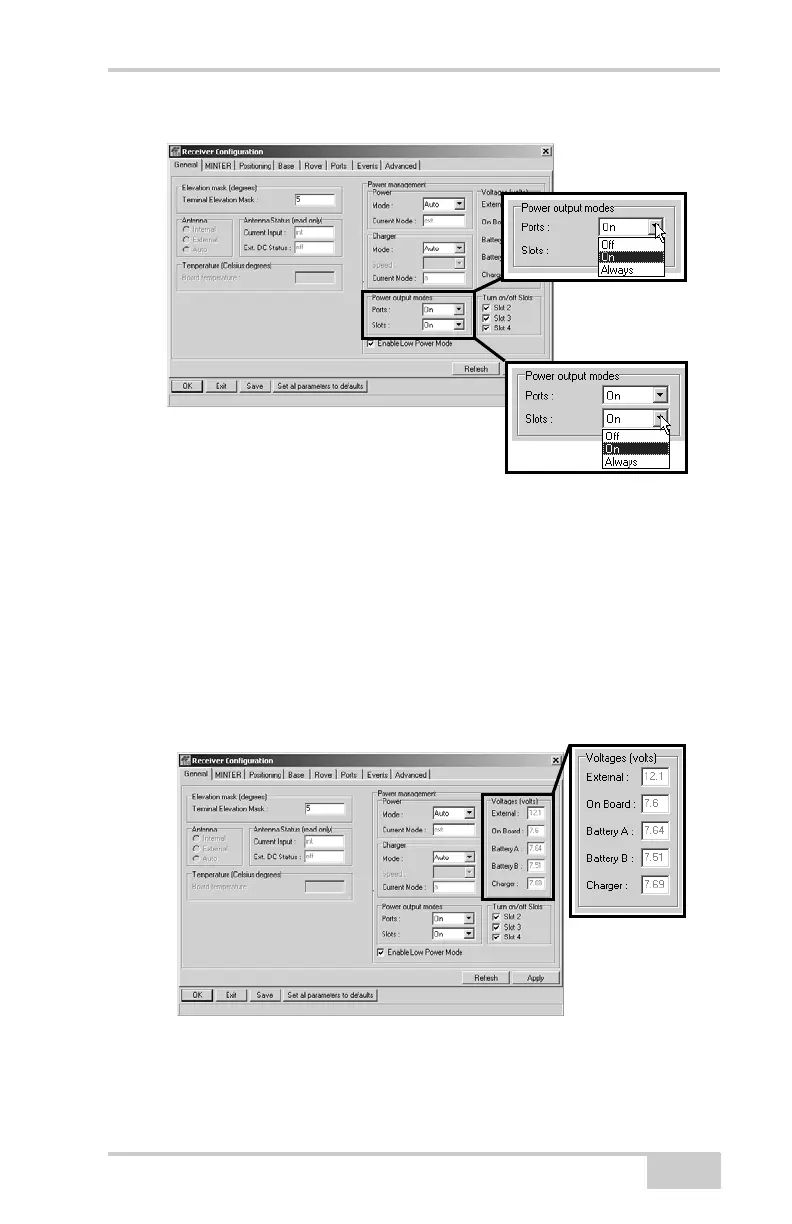

Figure 2-8. Select Power Output Modes – Ports and Slots
7. View the Voltages information (Figure 2-9).
• External – displays the external power supply’s voltage
• On Board – displays the voltage drawn by the receiver board
• Battery A – displays the voltage of battery A
• Battery B – displays the voltage of battery B
• Charger – displays the charger’s output voltage during battery
charging
Figure 2-9. View Voltages Information
