Pre-survey Preparation
HiPer+ Operator’s Manual
2-18
3. From the drop-down list in the upper left corner, select the
computer serial port (usually COM1) used for communication
(Figure 2-13).
4. Click Connect to connect the computer and Bluetooth module.

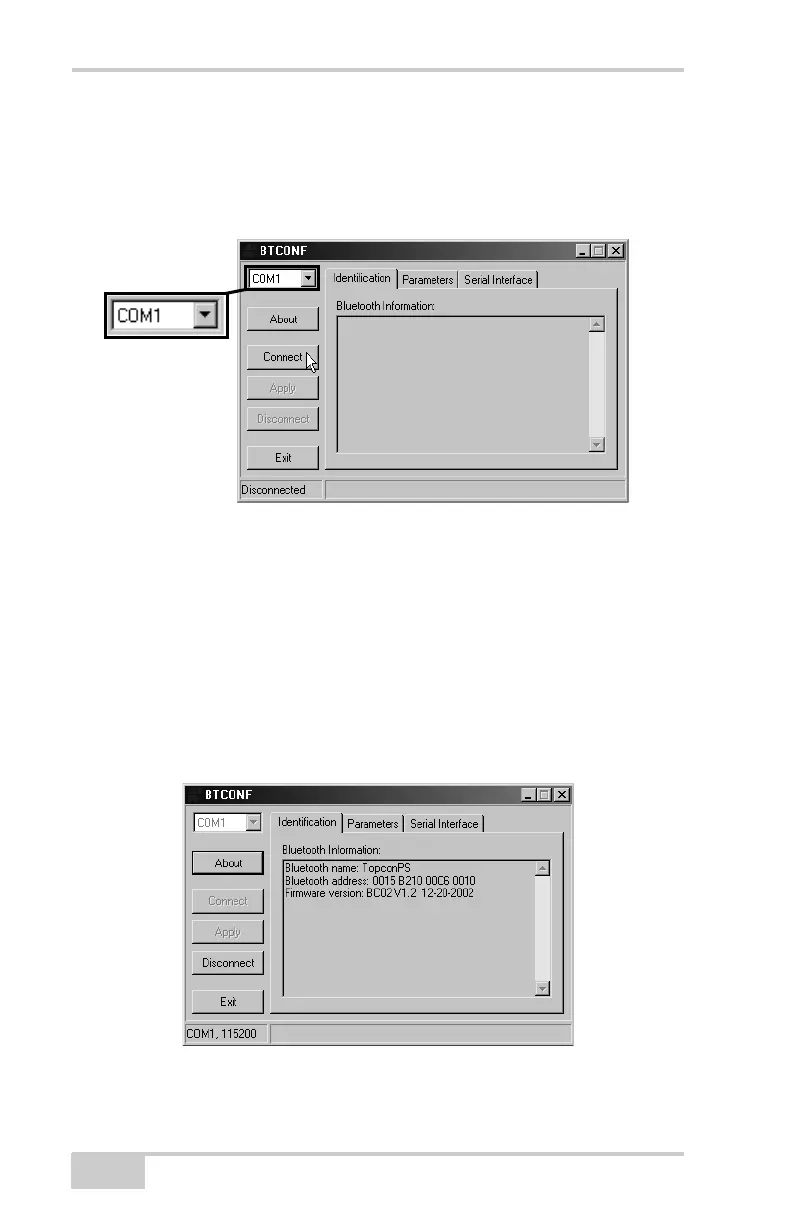

Figure 2-13. Select Communication Port and Click Connect
Once the receiver and computer connect through BTCONF, the
Identification tab (Figure 2-14) displays the following
information.
• Bluetooth name – the name of the Bluetooth module.
• Bluetooth address – the unique electronic address for the
module.
• Firmware version – the current firmware version of the
Bluetooth module.
Figure 2-14. BTCONF Identification Tab
The COM port and baud rate display in the lower left corner.
