Configuring the Receiver
P/N 7010-0526
3-23

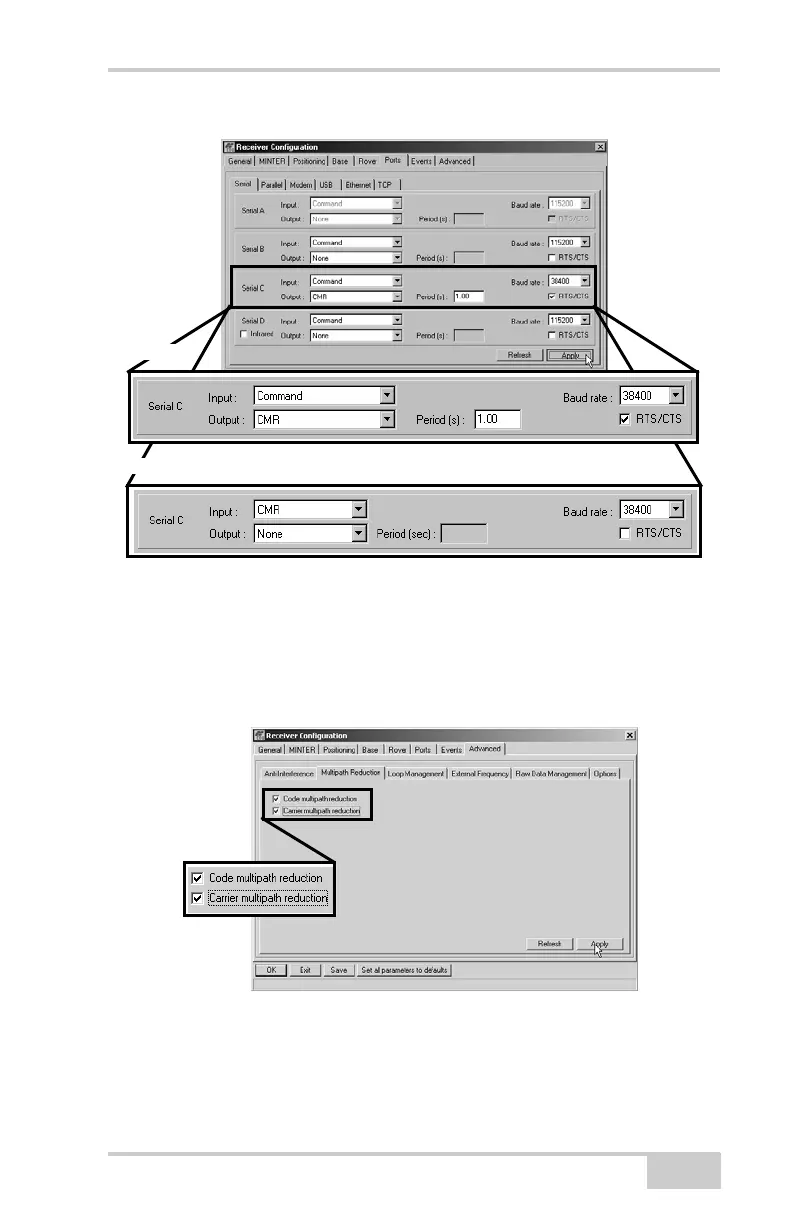

Figure 3-22. Base and Rover Configuration for RTK Surveys – Ports
12. Click the Advanced tab and then the Multipath tab. Set the
following parameters and click Apply (Figure 3-23).
• Code multipath reduction – enable
• Carrier multipath reduction – enable
Figure 3-23. Configure Mulitpath Parameters
Base
Rover
To Next Page
