Receiver Setup
P/N 7010-0526
4-3
8. Also setup and connect the cables for accessory equipment
(external power source, field controller).

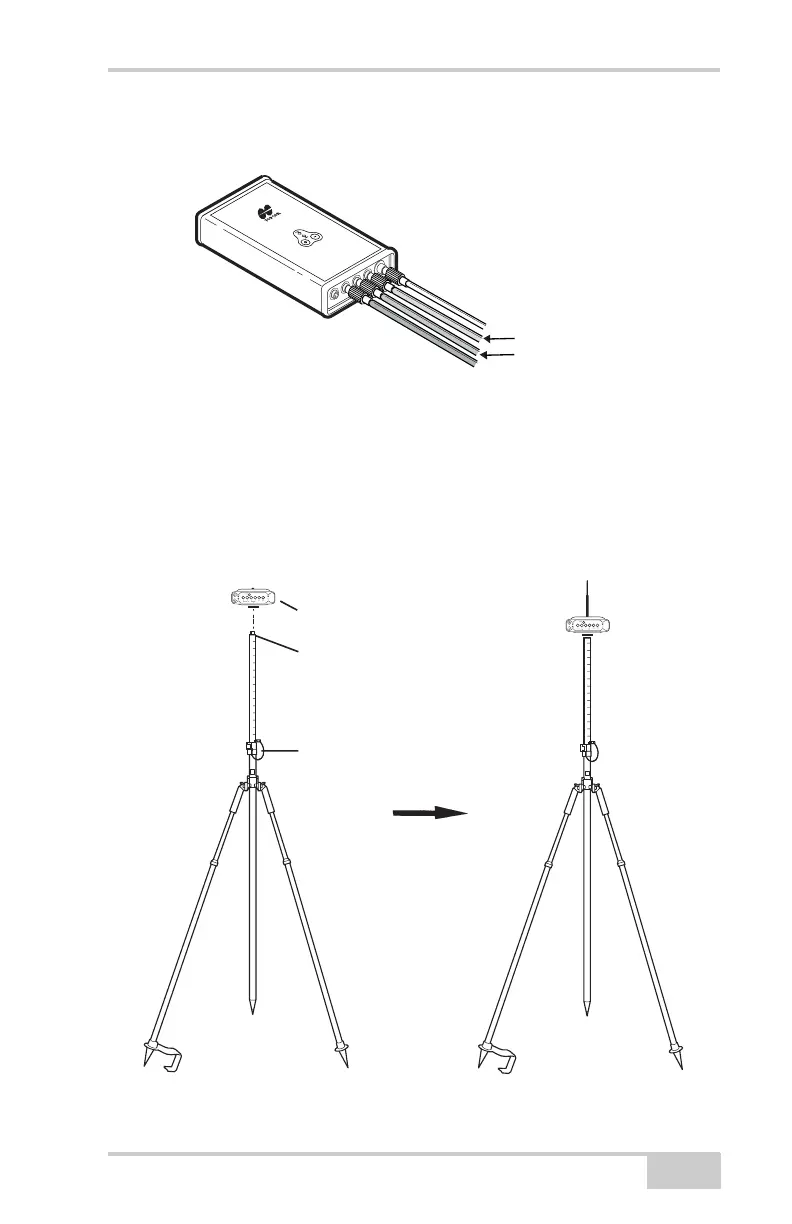

Figure 4-2. Connect Cables to GPS Receiver
To set up the Rover receiver (Figure 4-3):
Use a bipod during surveys to ensure the antenna/receiver remains
steady during data logging.
1. Attach the receiver to the pole, locking it into place.
2. Attach the radio antenna to the antenna connector.
Figure 4-3. Connect Receiver to Bipod
To GPS Antenna
To Radio Modem
To Field ControllerTo Power/Battery
Lock
HiPer+ Recevier
5/8 inch screw
