Control Box Setup for Elevation
P/N 7010-0341 www.topconpositioning.com
5-9
After you begin paving, check the mat depth to ensure the desired
thickness is being laid (Figure 5-9). The blocks initially placed
under the screed may cause the mat to be too thick or too thin.
Check the mat several times to get an average before making any
corrections.

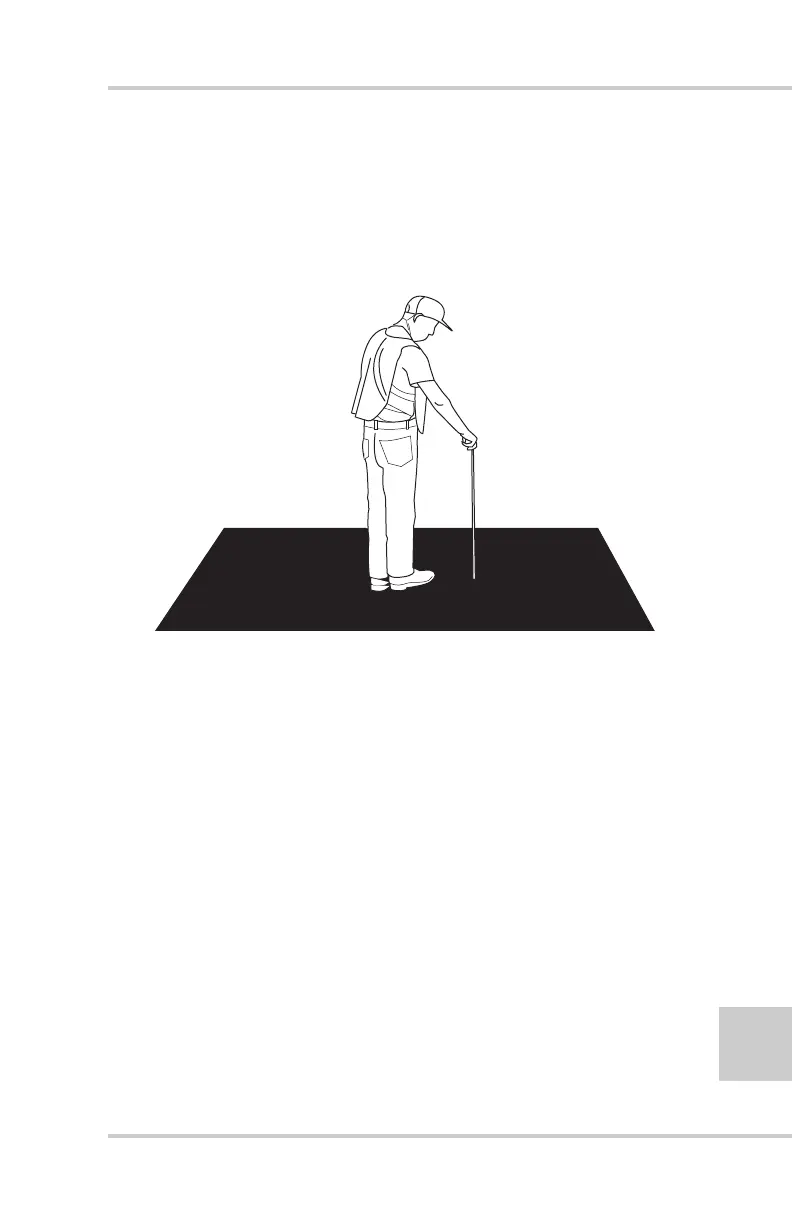

Figure 5-9. Checking Pad Thickness
For example, if a 2.50 inch mat is required, but a 3.0 inch mat is
being laid, then an adjustment is necessary. You must first get the
box to display the same number as the mat depth.
To change the mat depth being laid,
1. Press the Auto/manual button to put the Control Box and Paver
into manual mode. The Auto LED goes dark.
2. Press and hold the Set button while turning the Grade
Adjustment Knob to read 3.0 inches (Figure 5-10 on
page 5-10). Release the Set button to apply the setting.
