46
BASIC OPERATIONS
BASIC OPERATIONS
MEASUREMENT IN REF/KRTTONO/PACHO CONTINUOUS MEASUREMENT MODE
2 Alignment starts automatically. While moving the main body toward the patient, the focus of
measurement screen is changed, then measurement is performed. The measuring head
moves automatically to the other eye side and measurement is performed. The measurement
results are displayed.
NOTE
When the measuring head is at the limit of movement in the forward direc-
tion, "TOO CLOSE" is displayed and the buzzer sounds, and when it is at
the limit of movement in the backward direction, "TOO FAR" is displayed.

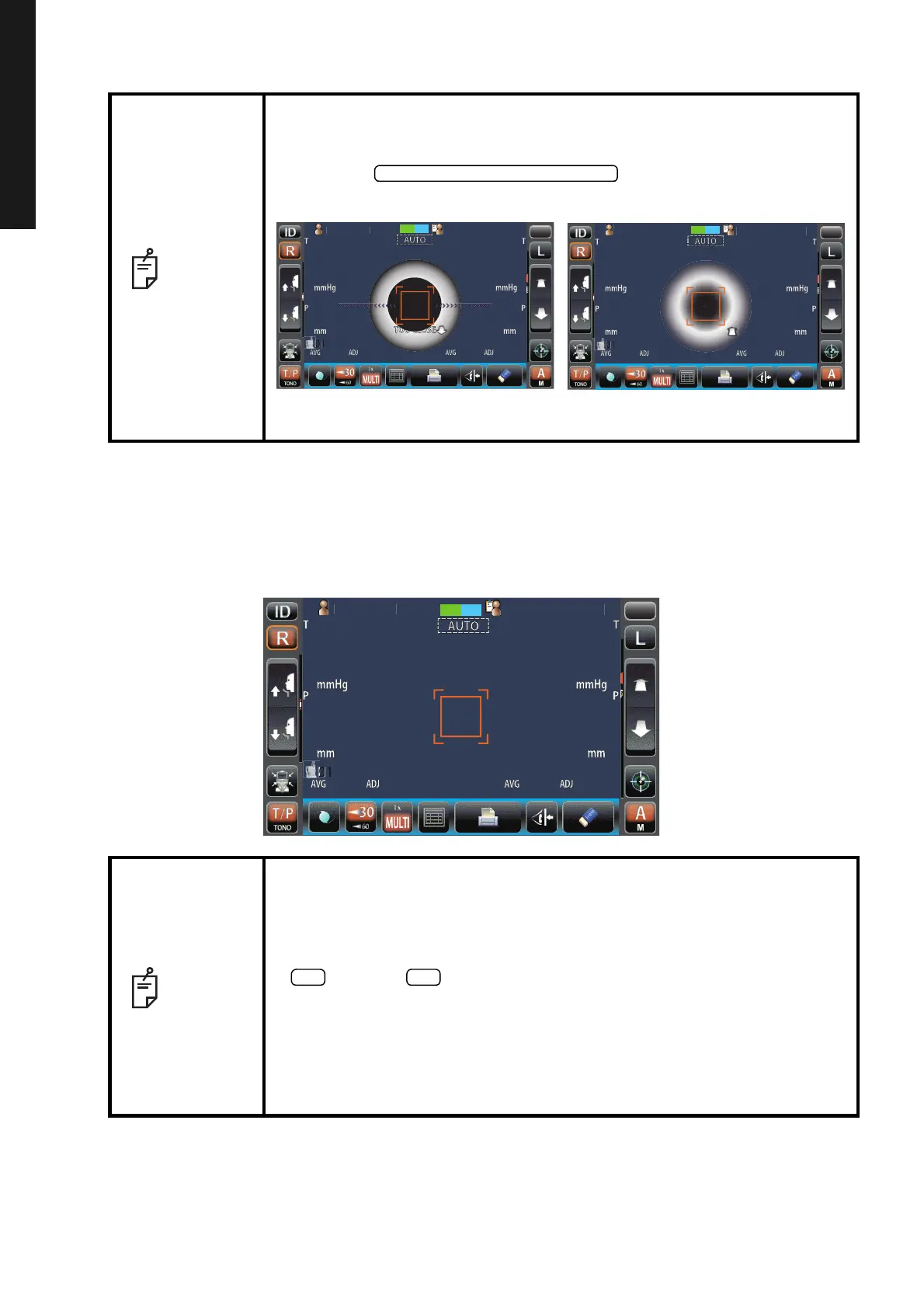

Using the button, move the measuring
head to a position that aligning is possible.
NOTE
When the "Full Auto" of "R/L move" is selected in the "TONO/PACHO" of
the "Initial", the instrument measuring head moves automatically to the
other eye side for measuring. If the patient closes or blinks their eyes at
the time of the right-and-left eye change, the change may be unable to be
performed correctly. If the "Manual" of "R/L move" is selected, press the
button or button of the other eye side. If the "Auto(RL)" of "R/L
move" is selected, the measuring head moves automatically to the other
eye side, however a measurement is not performed.
Auto print (available only under Auto mode)
When the "Auto print" is set to "ON" in the "Common" of the "Initial", mea-
surement results are printed out automatically after measuring the right
and left eyes. (See page 84.)
Measuring head forward/backward
PatientID
PatientID
/3
/3
/3
/3
/3
/3
/3
/3
1
1
T
OPCON
T
ARO
U
TOPCONTAROU
Pleasetouch
pupilonthescreen.
TOOFARTOOFAR
MODE
R/K T/P
PatientID
PatientID
/3
/3
/3
/3
/3
/3
/3
/3
1
1
T
OPCON
T
ARO
U
TOPCONTAROU
Pleasetouch
pupilonthescreen.
TOOCLOSE
MODE
R/K T/P
Limit of movement in the forward direction Limit of movement in the backward direction
