Topcon X-63 - Tilt Bucket Sensor Mounting

Installation
SensorInstallation
13
X‐63/X‐63i/X‐62/X‐33/X‐32InstallationandCalibrationManual P/N:7010‐0697
Tilt Bucket Sensor Mounting (Optional)
Ifusingtiltbucket,anadditionalsensormaybemountedtothebucket(Figure16).Tiltbucketsensor
mountingdiffersfromallothersensors.Determinethelocationandorien tationofthesensorwiththe
buckethangingvertically.
Therecommendedlocationofthesensorisonthetopsideofthebucket—fromthecabperspective—with
thearrowpointingforward(towardthedirectionoftravel).IfusingaTS‐i3sensor,mountiteitheronthe
topleftortoprightwiththearrowpointingtowardthedirection
oftravel.

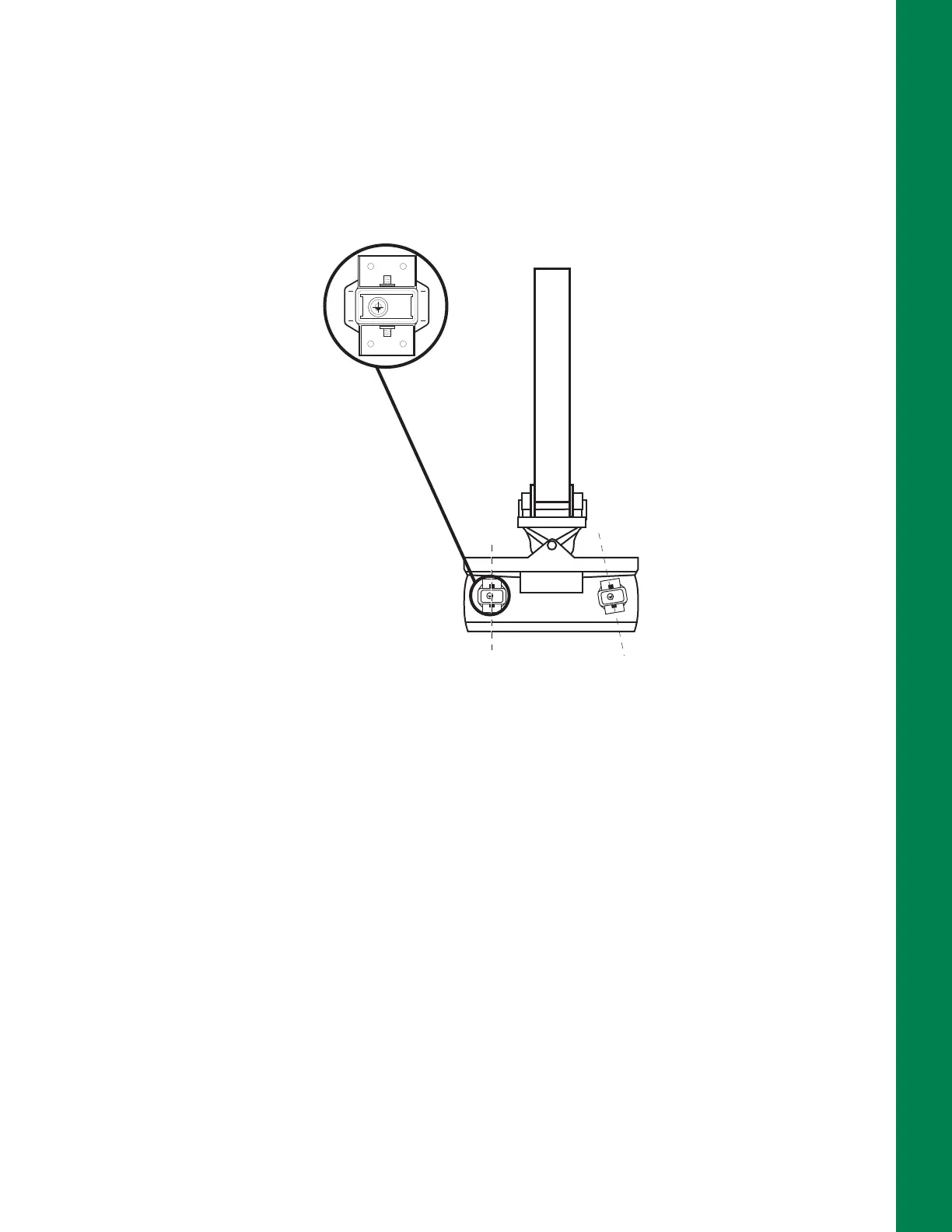

Figure16:TiltBucketSensorMounting
Correct Incorrect
