X‐63/X‐63i/X‐62/X‐33/X‐32InstallationandCalibrationManual P/N:7010‐0697
Stick Sensor Calibration
Thesticksensorcalibrationrequiresboththepitchandtherollcalibration.Whenperformingthestick
sensorcalibrationpositionthestickat‐90degrees.
Positionthemachineonastablesurfacefreeofobstructionsandrotatethebodyparalleltothetracks.
1. Positionthestickat‐90°(Figure34onpage29).
2. Aligntheboom‐stickpivotandthebucketpivot.

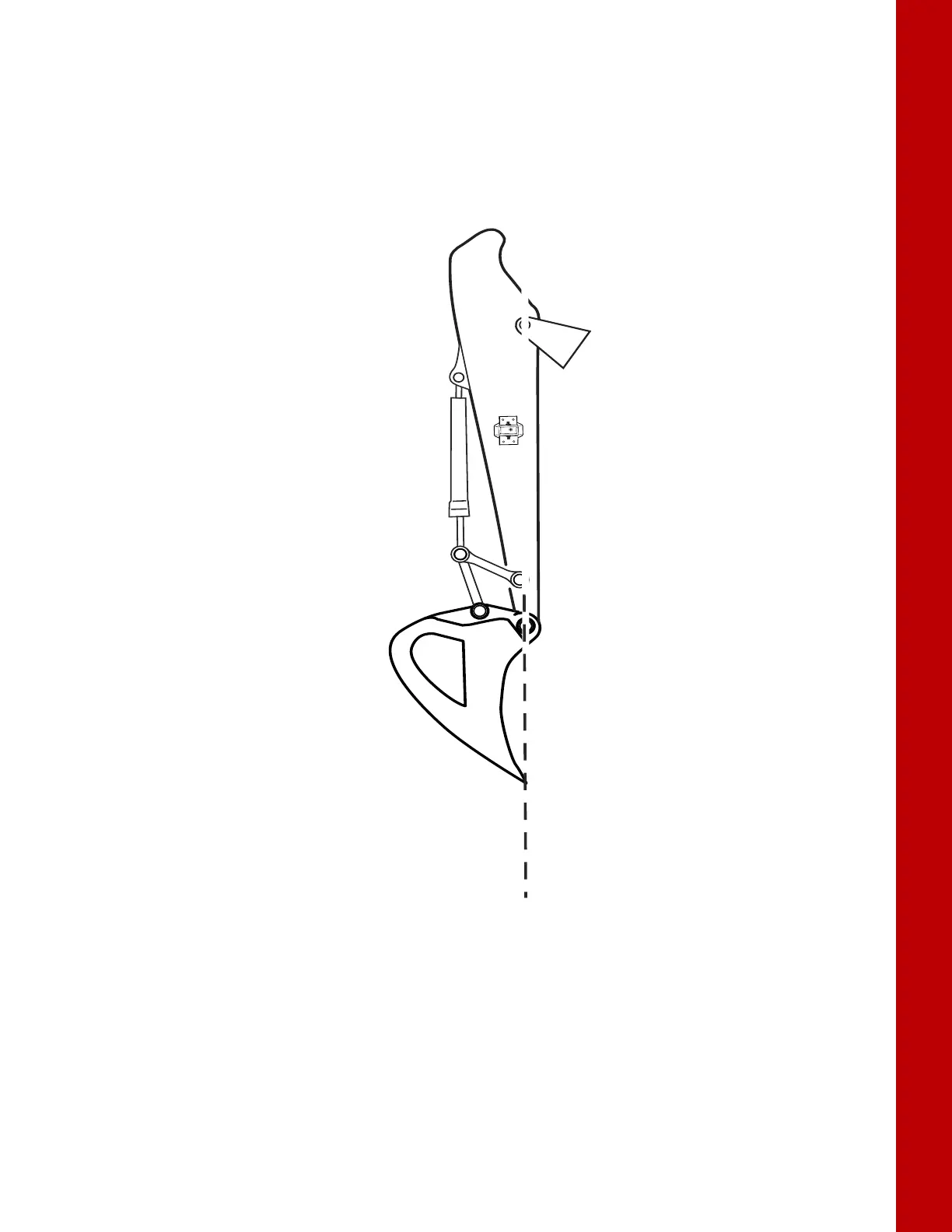

Figure34:Stickat‐90°
3. In3D‐MC,tapTopconMenuButtonControlMachinesetup.Selecttheapplicablemachine
fileforthejobandtapEdit.TapNexttonavigatetotheExcavatorStickscreen.
4. TaptheWrenchiconforthesticksensor(Figure35onpage30).
