Verifying Setup

50
X‐63/X‐63i/X‐62/X‐33/X‐32InstallationandCalibrationManual P/N:7010‐0697
4. Comparethemeasuringtapevalueswiththoseshownin3D‐MC.
5. Ifthemeasurementscomparedagainst3D‐MCmatch,therecouldbeanissuewithoneofthe
othersensors;repeatsteps1‐4andreverify.
6. Ifthemeasurementscomparedagainst3D‐MCstillmatch,followthestepsin“Troubleshooting
theBoomSensor”below.
7. Ifthemeasurementscomparedagainst3D‐MCdonotmatch,eachsensormustbeevaluatedfor
machinemeasurementorcalibrationerrors.
Troubleshooting the Boom Sensor
1. Positionthebucketabovethestringlinesothatthebucketteethoredgeareattheirclosest
pointtothestring.
2. Placethebucketteethoredgeonthestring,andzerothebucketin3D‐MC.
3. Curlonlytheboominandoutatvariouspositions,andmeasurethedistancefromthestringline
tothebucketteethwithameasuringtape(Figure70).

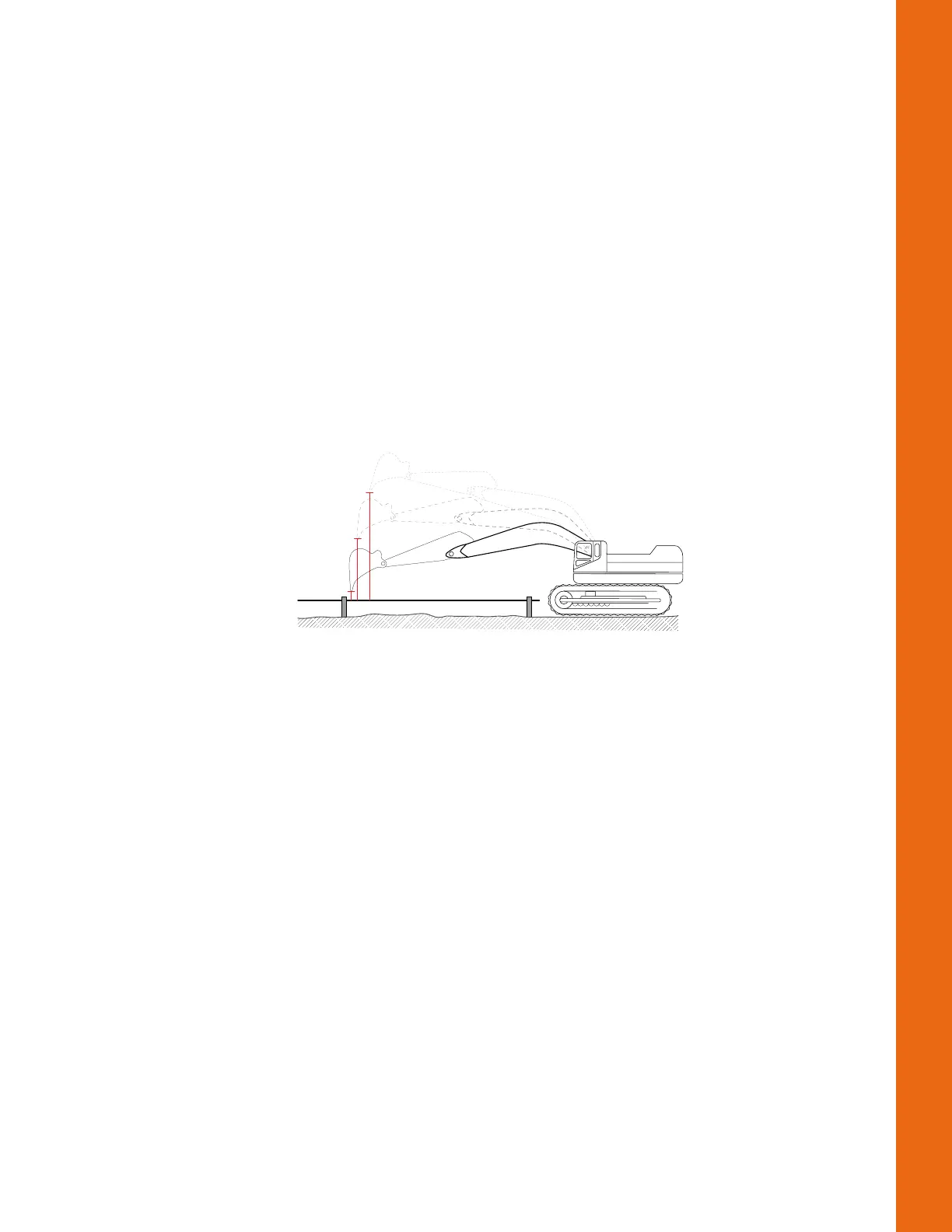

Figure70:StringLineVerification‐Boom
4. Comparethemeasuringtapevalueswiththoseshownin3D‐MC.
5. Ifthemeasurementscomparedagainst3D‐MCmatch,repeatsteps1‐4andreverify.
6. Ifthevaluesstillmatch,checkthesecondaryboomsensor(ifused),andthenthebodysensor.
7. Ifthemeasurementscomparedagainst3D‐MCdonotmatch,eachsensormustbeevaluatedfor
machinemeasurementorcalibrationerrors.
