Topcon X-63 - Verifying aux Antenna Height

Verifying Setup

62
X‐63/X‐63i/X‐62/X‐33/X‐32InstallationandCalibrationManual P/N:7010‐0697
Verifying Aux Antenna Height
Thisvalueisnotcriticaltomeasuringelevation,soverifyingisnotrequired.

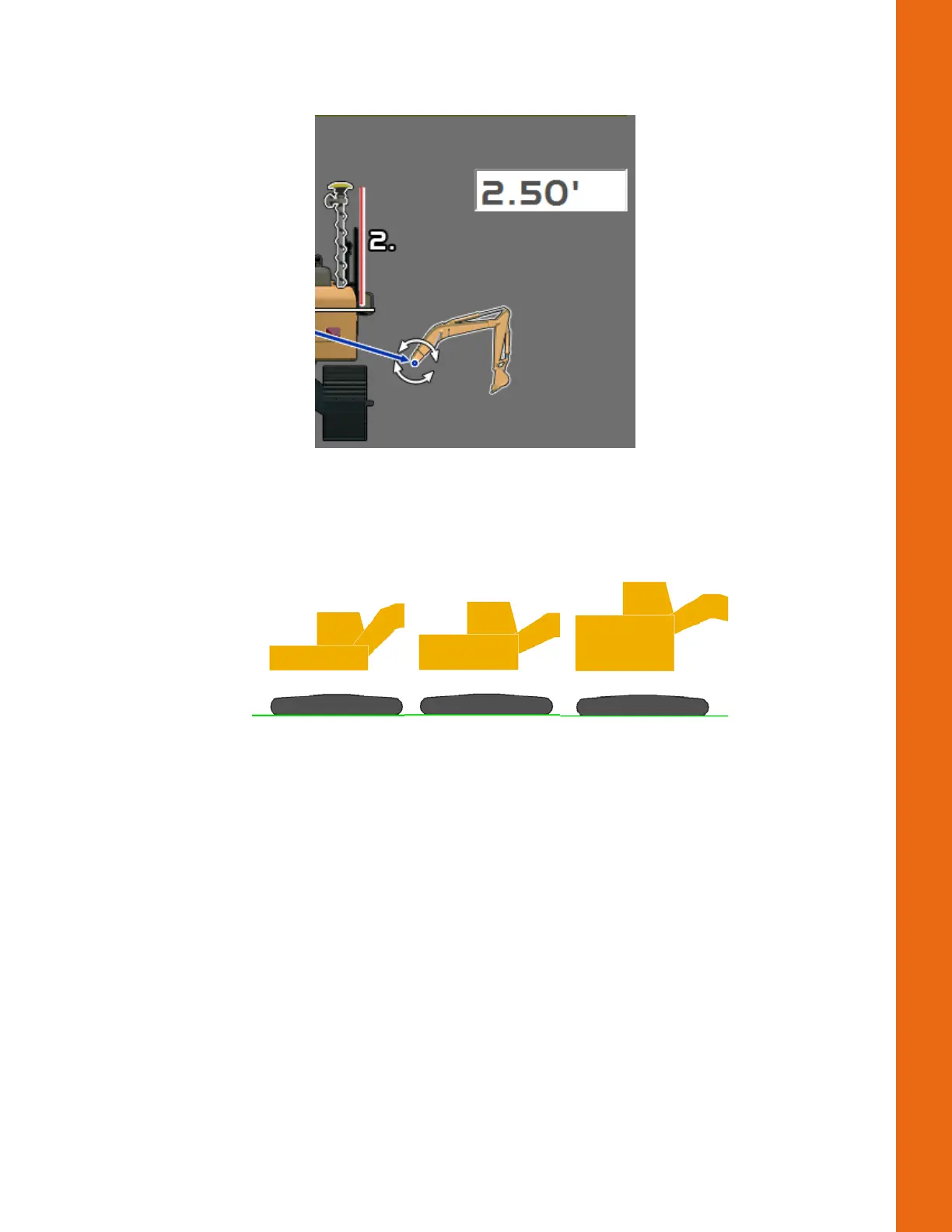

Figure76:VerifyingAuxAntennaHeight
Theheightoftheboompivotsimplyallows3D‐MCtocreateamoreaccuraterepresentationofthe
machineinthesoftware’sgraphics.Thismeasurementdoesnotaffectelevationaccuracy,soverificationis
notnecessary.
Figure77:MachineBodySizein3D‐MCGraphics
