Topcon X-63 - Bucket Edge Calibration and System Setup

Calibration
MachineCalibration
33
X‐63/X‐63i/X‐62/X‐33/X‐32InstallationandCalibrationManual P/N:7010‐0697
14. Ifthisisthelastsensorphysicallyconnectedtothemachine,see“CANTermination”onpage41.
Bucket Edge Calibration
Performthefollowingbucketedgecalibrationproceduresforallbuckettypes.Thesecalibrationsmustalso
beperformedforeachindividualbucketwhenusingmultiple buckets.
1. SelectabucketfromtheExcavatorBucketsscreen.

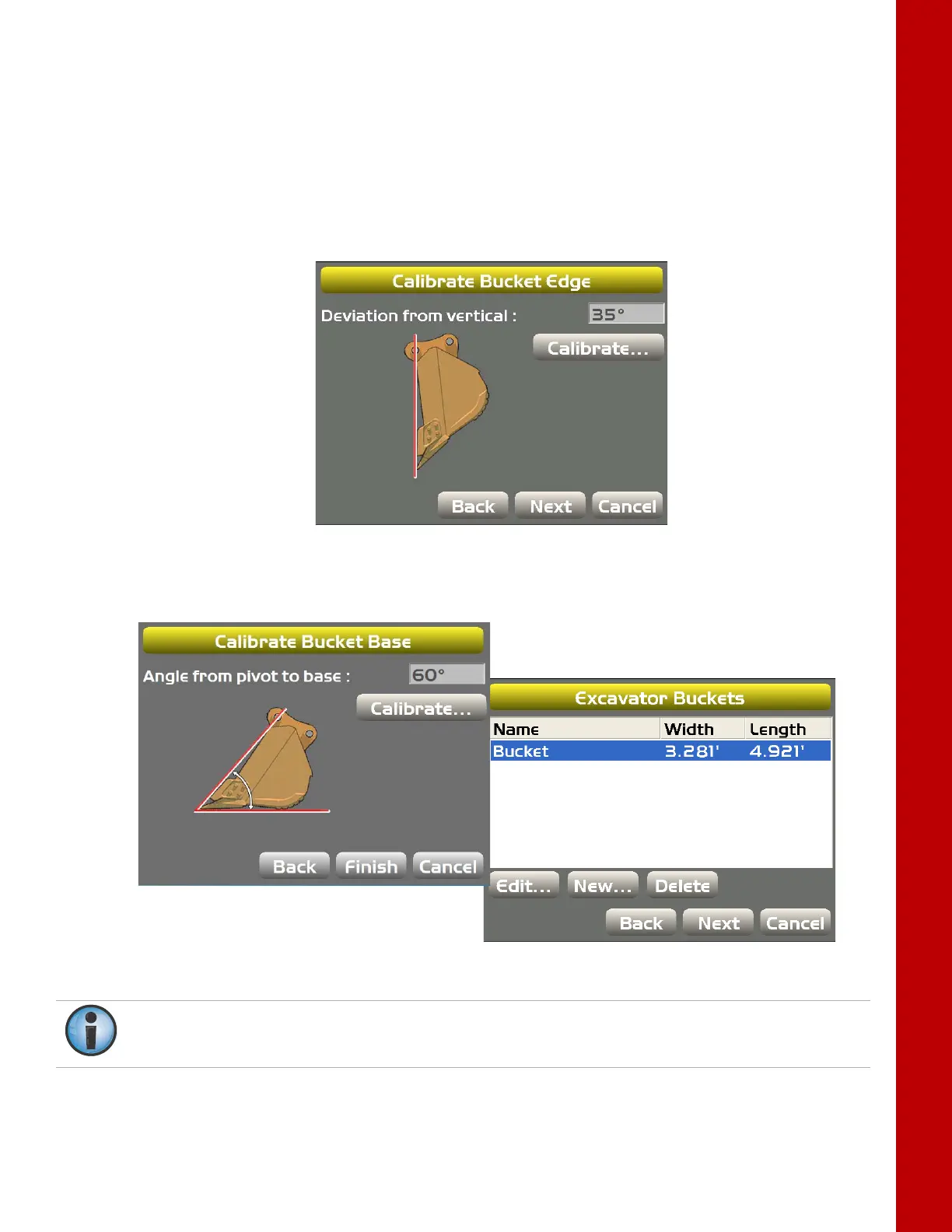

2. Withthebucketplumb,tapCalibratefromtheCalibrateBucketEdgescreen(Figure41);tap
NexttogototheCalibrateBucketBasescreen.
Figure41:CalibrateBucketEdge
3. Movethebucketsothatthebottomofthebucketlaysflatontheground,andtapCalibrate;tap
FinishtogototheExcavatorBucketsscreen(Figure42).
Figure42:CalibrateBucketBase
Ifsettingupmultiplebucketsofanykind,skipto“MultipleBucketCalibration”onpage37
