Calibration
MachineCalibration
32
X‐63/X‐63i/X‐62/X‐33/X‐32InstallationandCalibrationManual P/N:7010‐0697


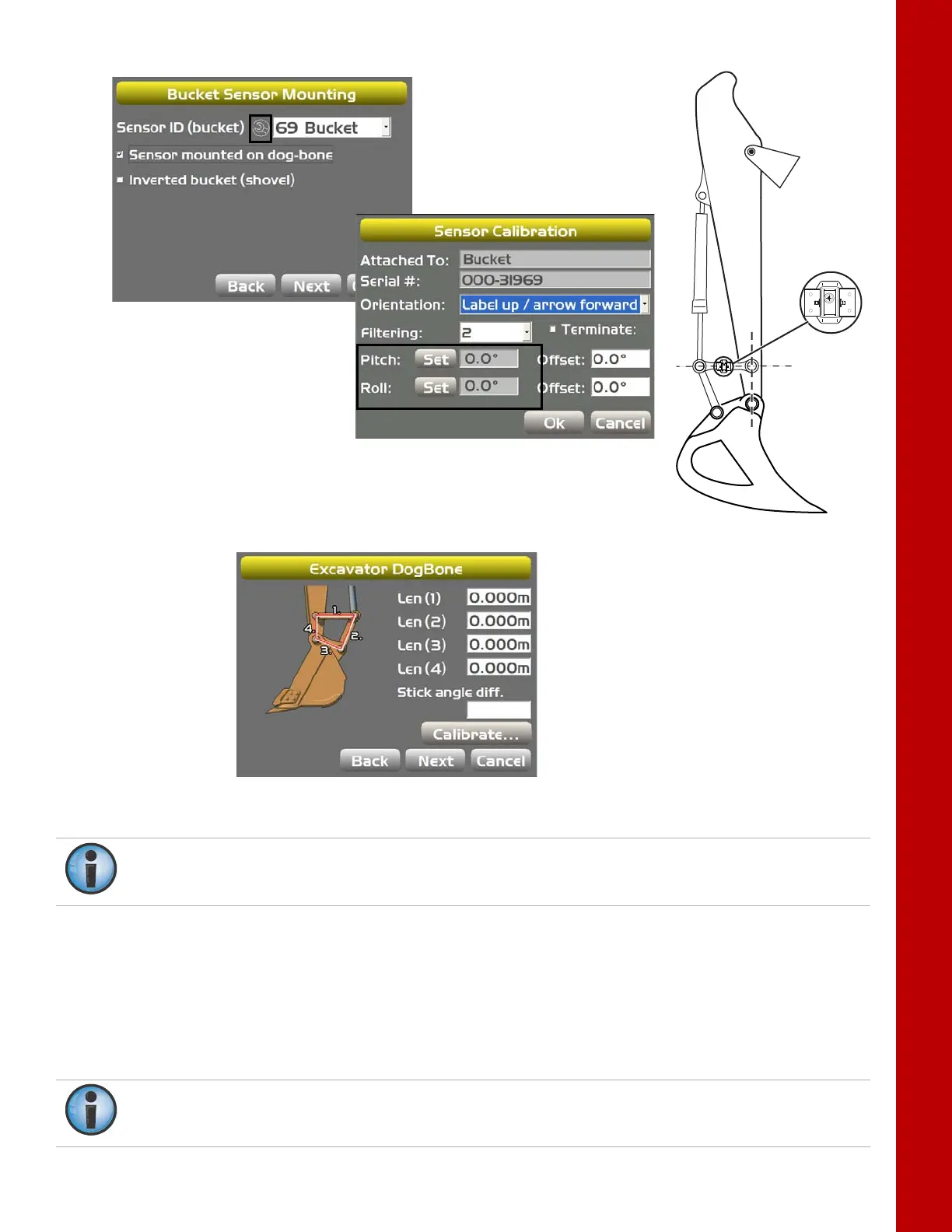

Figure39:SetPitchValuetoZero
9. TapOK,andthentapNext;theEx cavatorDogBonescreenappears
(Figure40).
Figure40:DetermineStickAngleDifference
10. Measureandenterthefourlengthsofthedog‐bonejoint.
11. Setpins2and3vertical,andpins3and4horizontal;thepinscanbesetusingcrosshairsina
totalstationorabuilder’slevel.
12. TapCalibrate;theDogBoneCalibrationscreenappears.
13. Enter90°,andtapOK;theExcavatorDogBonescreenappearswithastickangledifference
displayed
1
2
3
4
Correct Side
Location
Thedog‐bonesensorisnormallymounted ontheleftside,thoughtheExcava torDogBone
screendepictsthesensormountedontherightside.
