Verifying Setup

63
X‐63/X‐63i/X‐62/X‐33/X‐32InstallationandCalibrationManual P/N:7010‐0697
LS-B10W Test
PerformingaLS‐B10WLaserReceivertestverifiestheaccuracyofthelaserreceiveronthemachine.The
Zerotolaserfunctionbecomesactivein3D‐MCwhenthelaserreceiverreceivesalasersignal.
1. Start3D‐MC.
2. SetupalaserinfrontofthemachineasareferencefortheLS‐B10W.
3. Setupastringline,orsecondlaser,asareferencetoverifythepositionofthebucketteeth.
4. MeasuretheoffsetbetweentheLS‐B10Wreferencelaserandthebucketteethreferencelaser
(e.g.5.184Feet).
5. TaptheElevationControlKey.

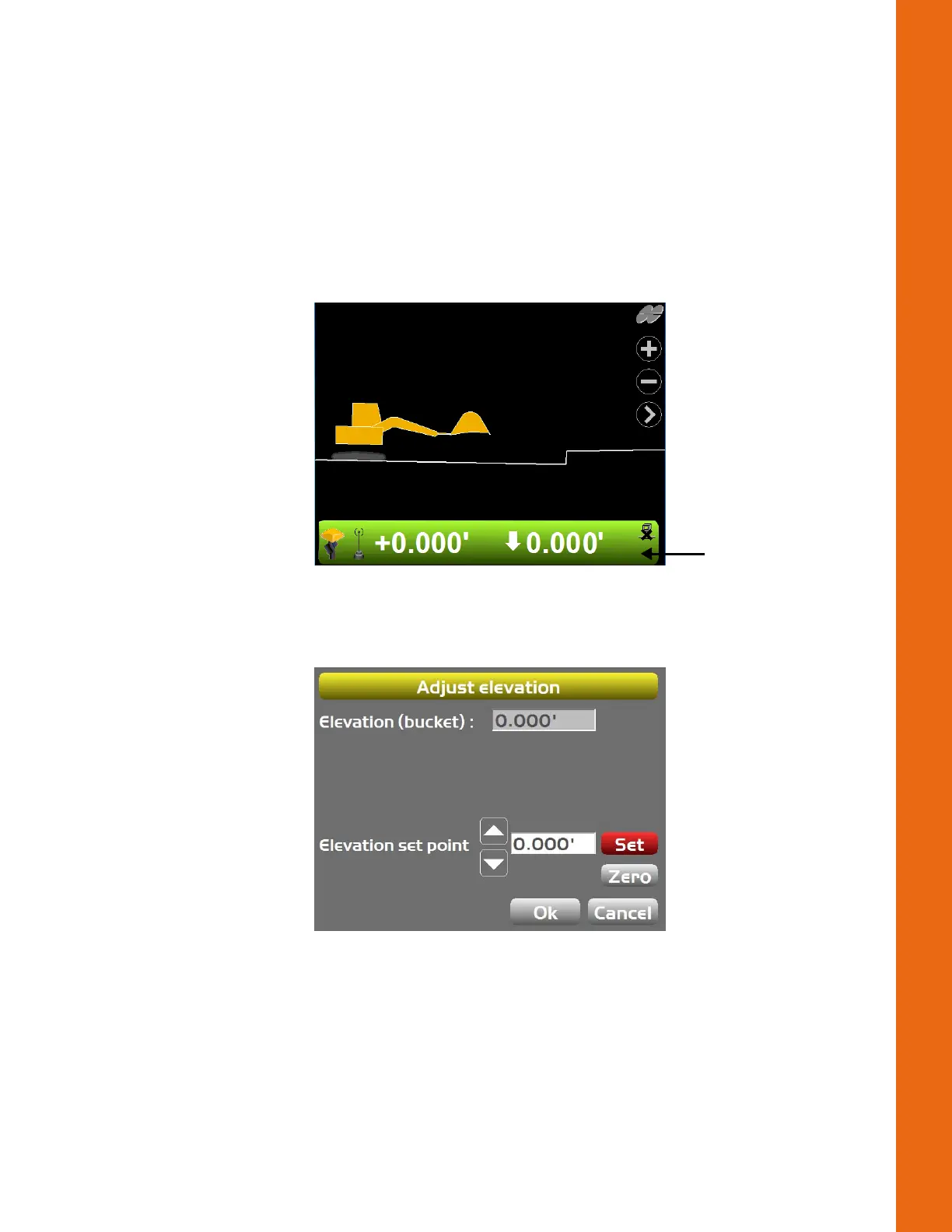

Figure78:PressElevationControlKey
6. EntertheoffsetmeasurementastheElevationsetpointintheAdjustElevationcontrolscreen
(Figure79).
Figure79:EnterOffset
7. StartingwiththeLS‐B10Wabovethereferencelaserheight,lowertheboomtopositiontheLS‐
B10Winthelaserbeam.TheZerotolaserfunctionbecomesavailable.TapZerotolaser
