Boom Sensor Calibration
TheboomsensorcalibrationrequiresthePitchandRollcalibration.Whenperformingtheboom
sensorcalibration,alaserisrecommendedtocorrectlypositiontheboomatzerodegrees.
Positionthemachineonaflatandstablesurfacefreeofobstructions,androtatethebodyparallelto
thetracks.
1. Placeazerosloperotatinglaseralongthesideofthemachinetoshineonboththeboompivot
andstickpivot.
2. Adjustthelaserheighttostrik ethecenteroftheboompivo t(Figure30).
3. Movetheboomtoalignthestickpivotwiththelaser 
(Figure30).

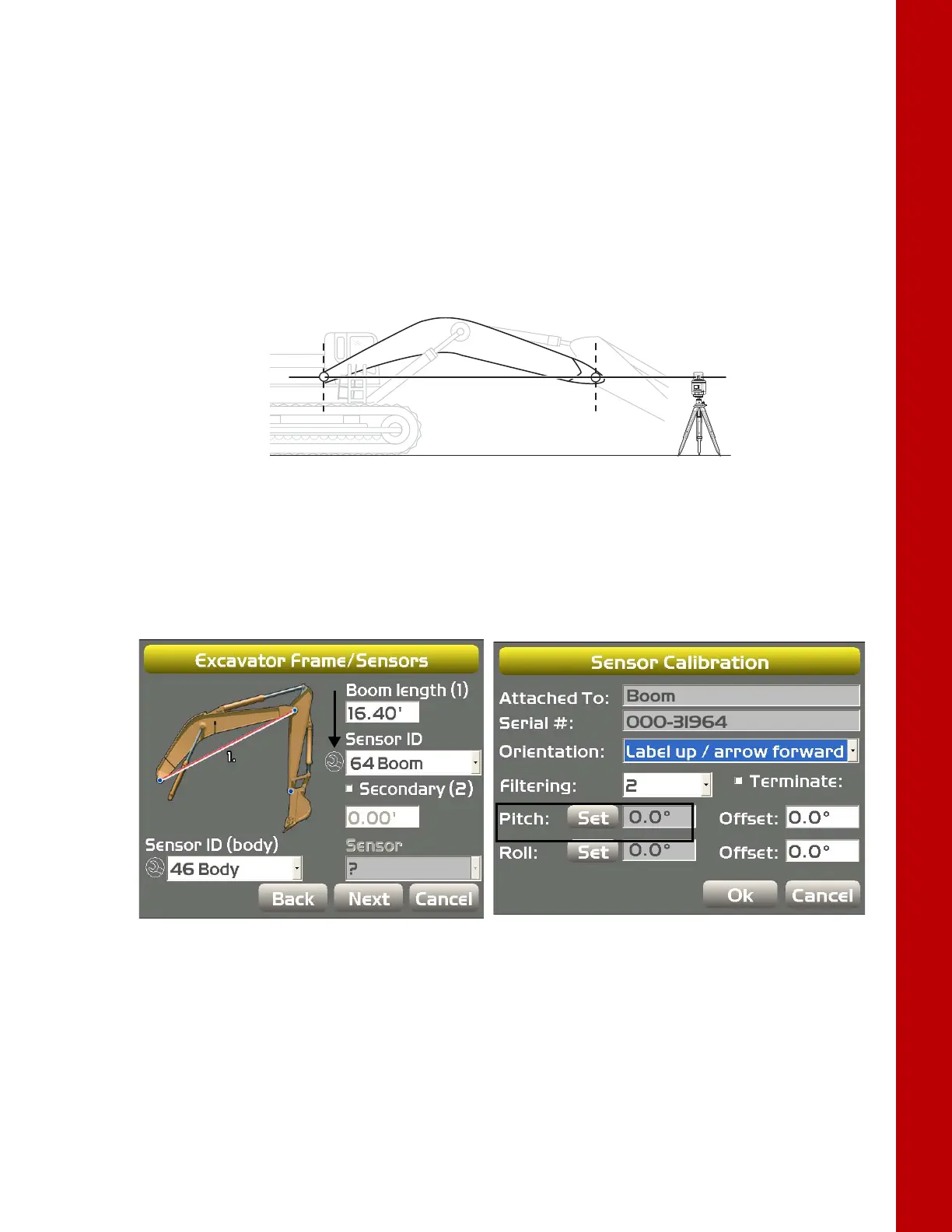

Figure30:PlaceLasertoStrikeCenterofBoomPivot
4. In3D‐MC,tapTopconMenuButtonControlMachinesetup.
5. SelecttheapplicablemachinefileforthejobandtapEdit.TapNexttonavigatetotheExcavator
Frame/Sensorsscreen.
6. TaptheWrenchiconthatcorrespondstotheboomsensor(Figure31).
7. TapSetnexttoPitch,enterthevalueaszero,andtapSetagain(Figure31).
Figure31:SetPitchValuetoZero
