Calibration
MachineCalibration
26
X‐63/X‐63i/X‐62/X‐33/X‐32InstallationandCalibrationManual P/N:7010‐0697
6. TapSetnexttoPitch,enterthevalueaszero,andtapSetagain(Figure28);repeatfortheRoll
value.

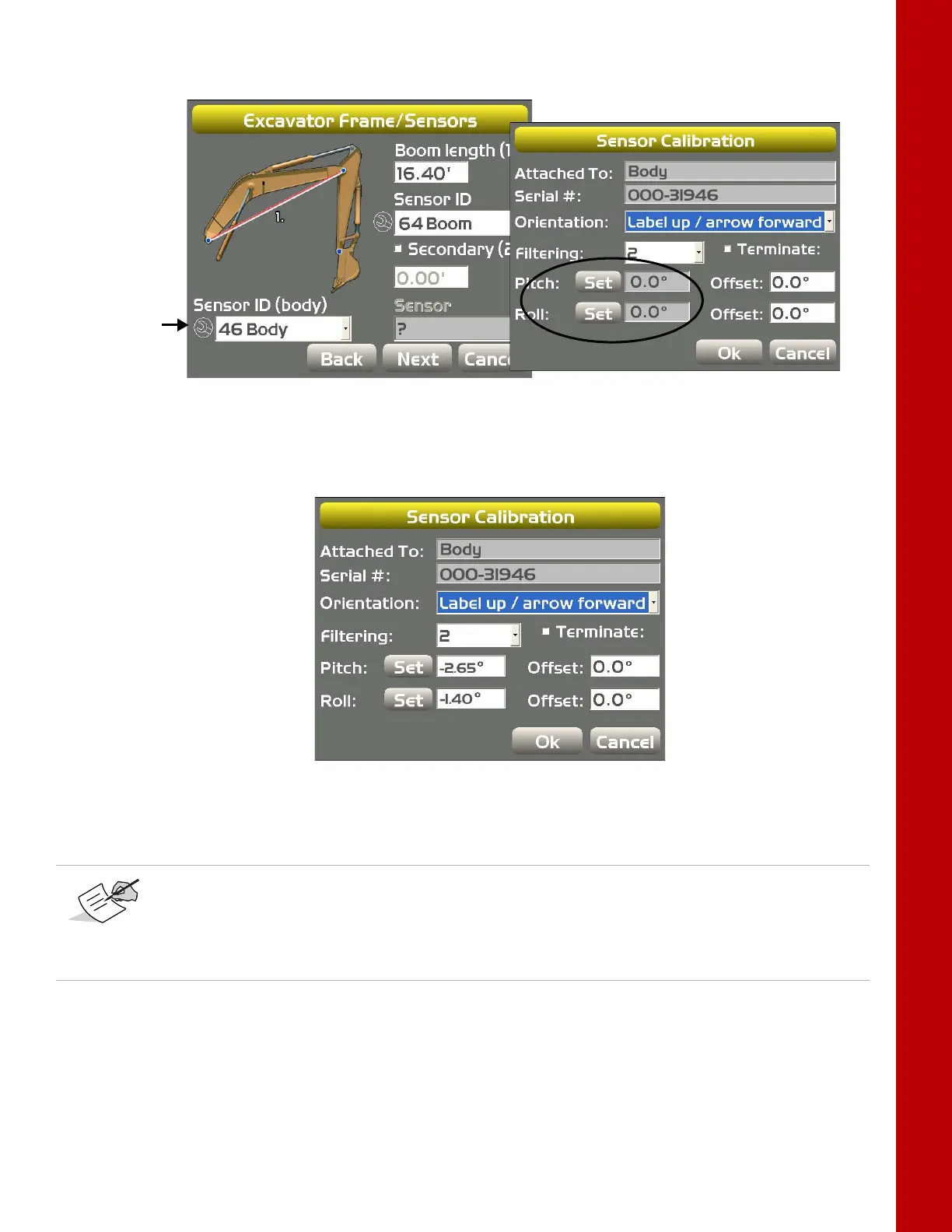

Figure28:SetPitchandRollValuestoZero
7. Withoutmovingthetracks,rotatethemachine180°(position2).
8. TapSetnexttoPitch,setthevaluetohalfthedisplayedvalues,andtapSetagain
(i.e.‐5.3/2=‐2.65and‐2.8/2=‐1.4)(Figure29);repeatfortheRollvalue,andthentapOK.
Figure29:SetPitchandRollValuetoHalfofDisplayedValues
9. CheckthePitchandRollvaluesinbothpositions.Thetwovaluesforeachpositionshouldbe
equal,butonewillbepositiveandtheothernegative. 
Oncethebodysensorrollvalueiscalibrated,recordthevaluesomewherethatisaccessible
fortheremainderofthecalibrationprocess.Aslongasthebodypitchandrolldoesnot
change,thisvaluecanbeenteredforallothersensorrollvalues.Ifthebodypitchandroll
valueschange(i.e.themachinetracksaremovedorthemachineisrotated),thenewroll
valuemustbereferenced.
