Verifying Setup

64
X‐63/X‐63i/X‐62/X‐33/X‐32InstallationandCalibrationManual P/N:7010‐0697
(Figure80).

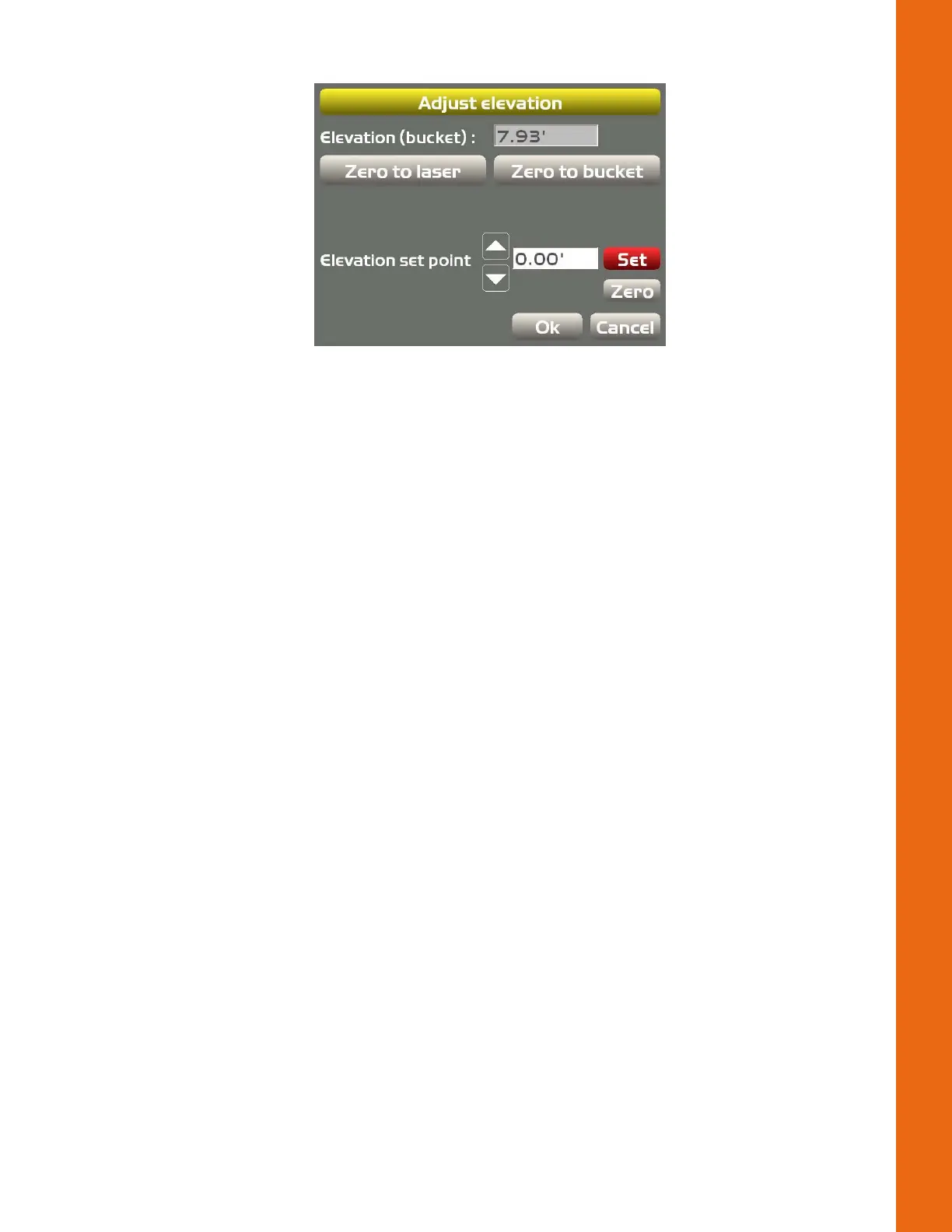

Figure80:ZerotoLaser
8. Placethebucketteethonthebucketlaserref erencelineandcheckthatthecut/fillvalueonthe
mainscreeniscloseto0.00.
9. StartingwiththeLS‐B10Wbelowthereferencelaserheight,raisetheboomtopositiontheLS‐
B10Winthelaserbeam.TheZerotolaserfunctionbecomesavailable.TapZerotolaser
(Figure80).
10. Placethebucketteethonthebucketlaserreferencelineandcheckthatthecut/fillvalueonthe
mainscreeniscloseto0.00.
11. Repeatsteps7‐10atvariouspointsalongthereferenceline.
