Full System Test

67
X‐63/X‐63i/X‐62/X‐33/X‐32InstallationandCalibrationManual P/N:7010‐0697
RecordBucketPositionswithBoomandStickRetracted
Ifahubwithaknownpositionisavailable,usethosecoordinatesastheref erence.Otherwise,usethefirst
positionasareference.Compareeachpositiontothereference.Thedifferenceshouldbewithin±0.2Ft.

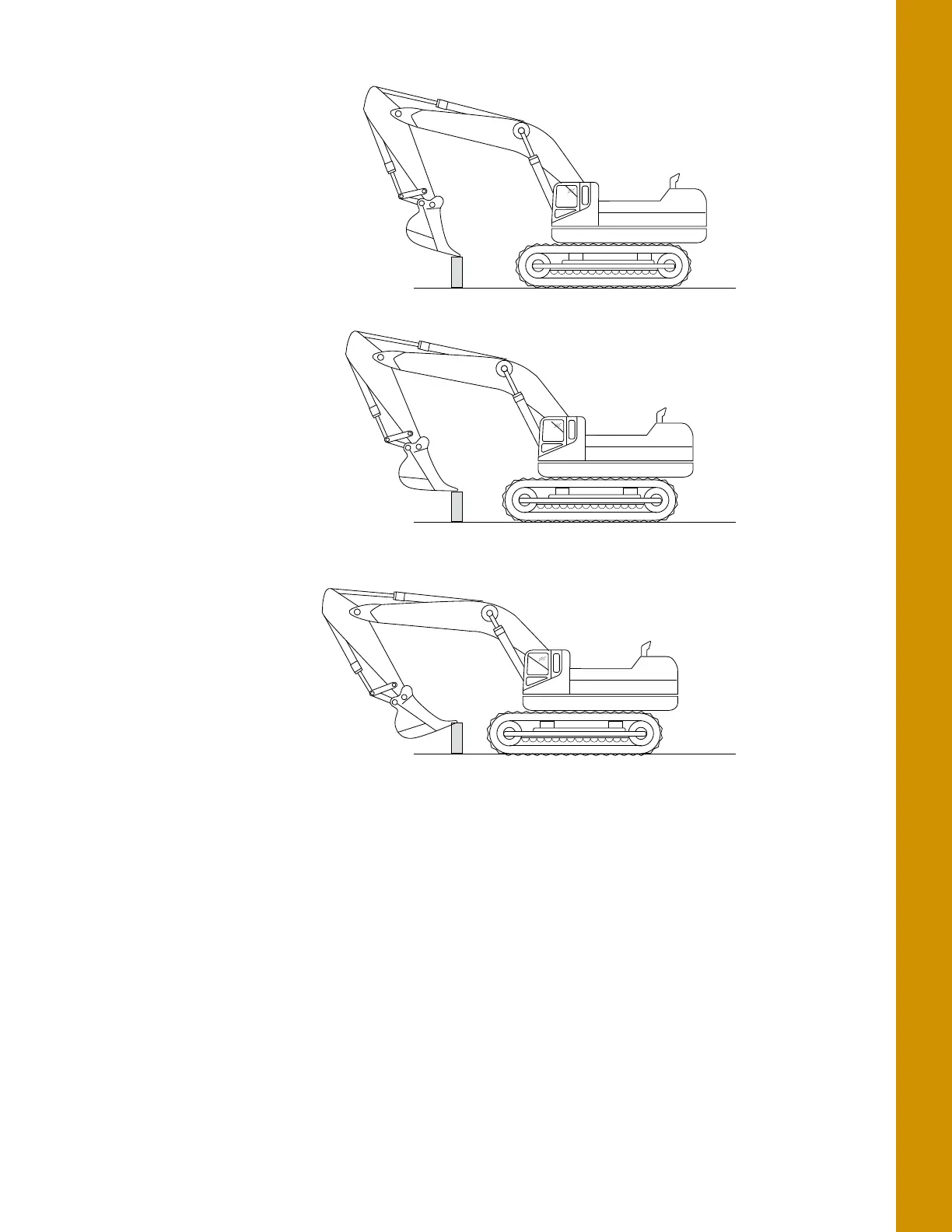

Bucket extended
Bucket mid-position
Bucket curled
