Figure 5.6 Simple Side-Stream Configuration
5.6 HYBRID BLENDING (EXCLUDING SMP)
The MultiLoad architecture permits hybrid blending schemes, where there may be multiple side-streams or
multiple, major components that flow through the primary stream.
5.6.1 MULTIPLE SIDE-STREAMS
Since five flow meters can be assigned to one load arm, it is possible to have multiple side-streams serving a
primary meter. The key to supporting multiple side-streams is designating meters as side-stream meters when
performing the meter-level configuration.
P
T1
CV
M1
Comp #1
P
Comp #3
T3
CV
M3
P
Comp #2
T2
CV
M2

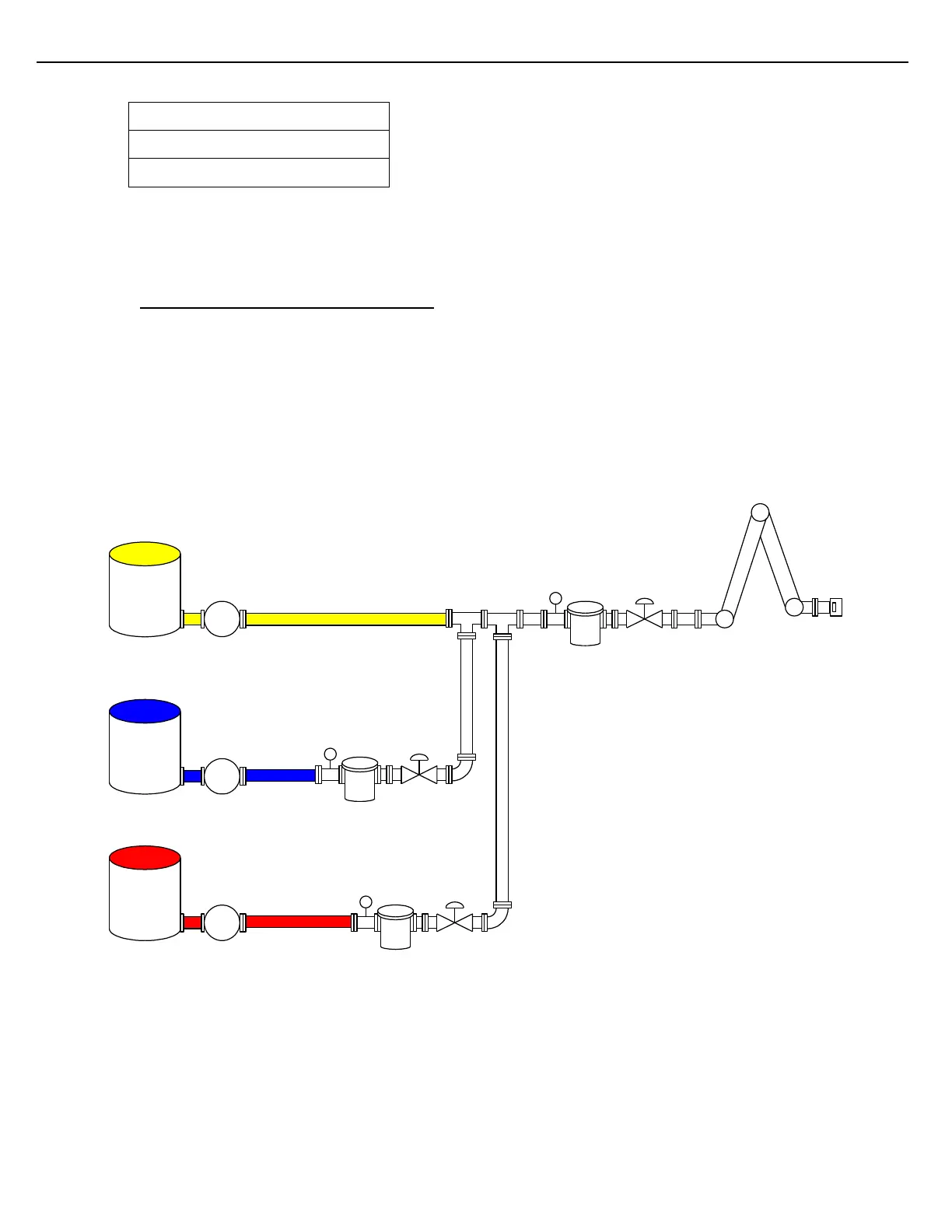

Figure 5.7 Multiple Side-Stream Application
Weights & Measures - Meters
Minimum Flow Rate 5 gpm
Maximum Flow Rate 100 gpm
