Toptech Systems MultiLoad II SCS User Manual

Chapter 9 – Weights & Measures
300
Firmware Version 3/4.31.37

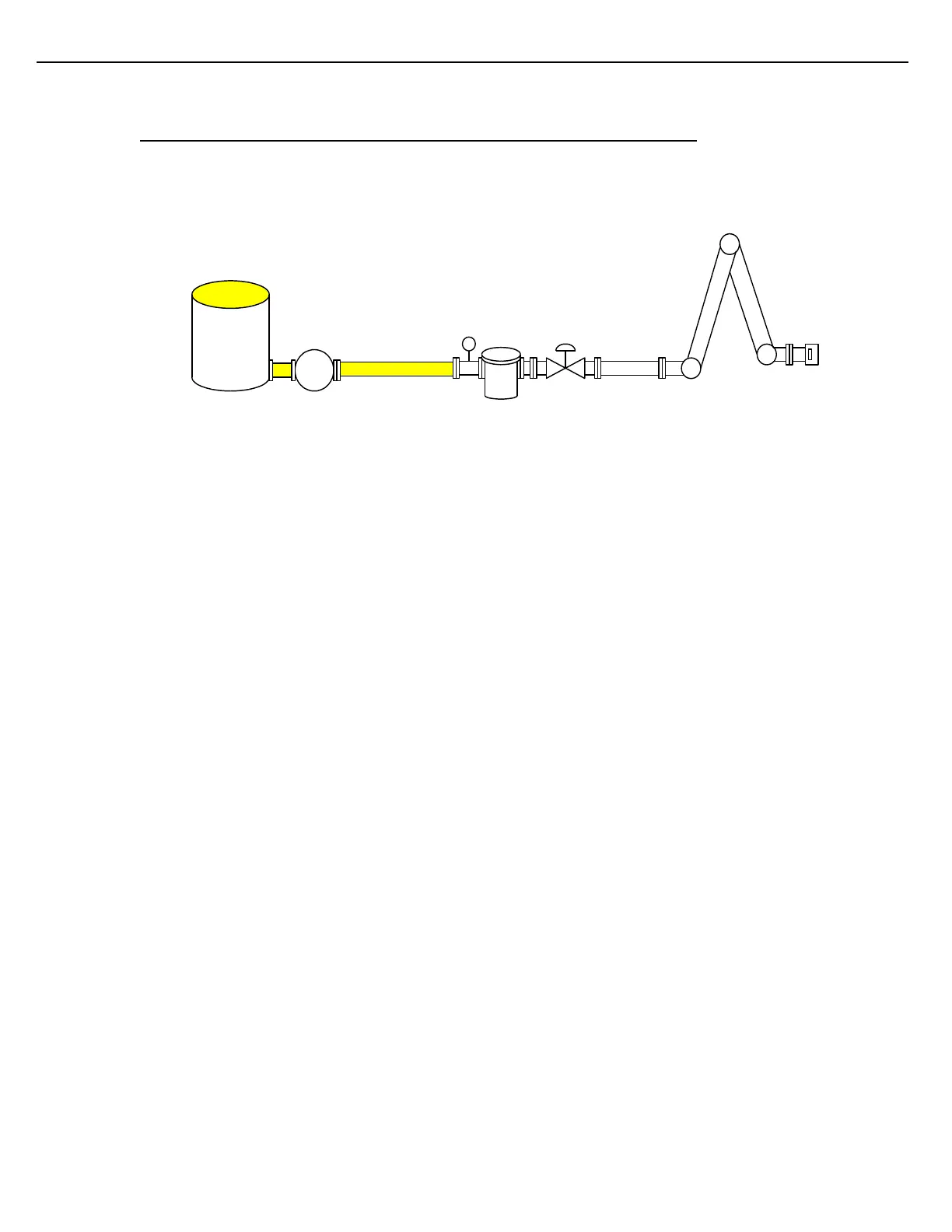

9.6 MULTILOAD STRAIGHT DELIVERY (SINGLE COMPONENT) CALCULATIONS
P
Regular
T1
CV
M1
Comp #1
Meter (Meter Level) values are reported as:
Gm=M1
Tm=T1
Dm=D1 OR Dr
Nm=Gm*VCFr(Tm,Dm)
Mm=Nm * Dr OR Mm=Gm * Dm
Where: Gm=Gross volume loaded for the Meter
M1=Gross volume reported by meter M1
Tm=Temperature for the Meter
T1= Volume weighted average temperature reported by probe T1
Dm=Density for the Meter
D1=Volume weighted average Density measured OR specified for meter M1
Dr=Density specified for the Regular component
Nm=Net volume loaded for the Meter
VCFr=API Correction Table for Regular
Mm = Mass loaded for the Meter
Regular product (Component Level) values are reported as:
Gr=Gm
Tr=Tm
Dr=Dr’ OR Dm
Nr=Nm
Mr=Mm
Where: Gr=Gross volume loaded for the Regular component
Tr=Temperature for the Regular component
Dr=Density for the Regular component
Dr’=Density specified for the Regular component
Nr=Net volume loaded for the Regular component
Mr=Mass loaded for the Regular component
