l On each end of the Lifting Bar Kit are the front and
rear mounting holes: the front connects the lifting
chain to the machine table, and the rear connects to
the machine column itself.
l In the center of the Lifting Bar Kit are two mounting
holes: one for each mill model.

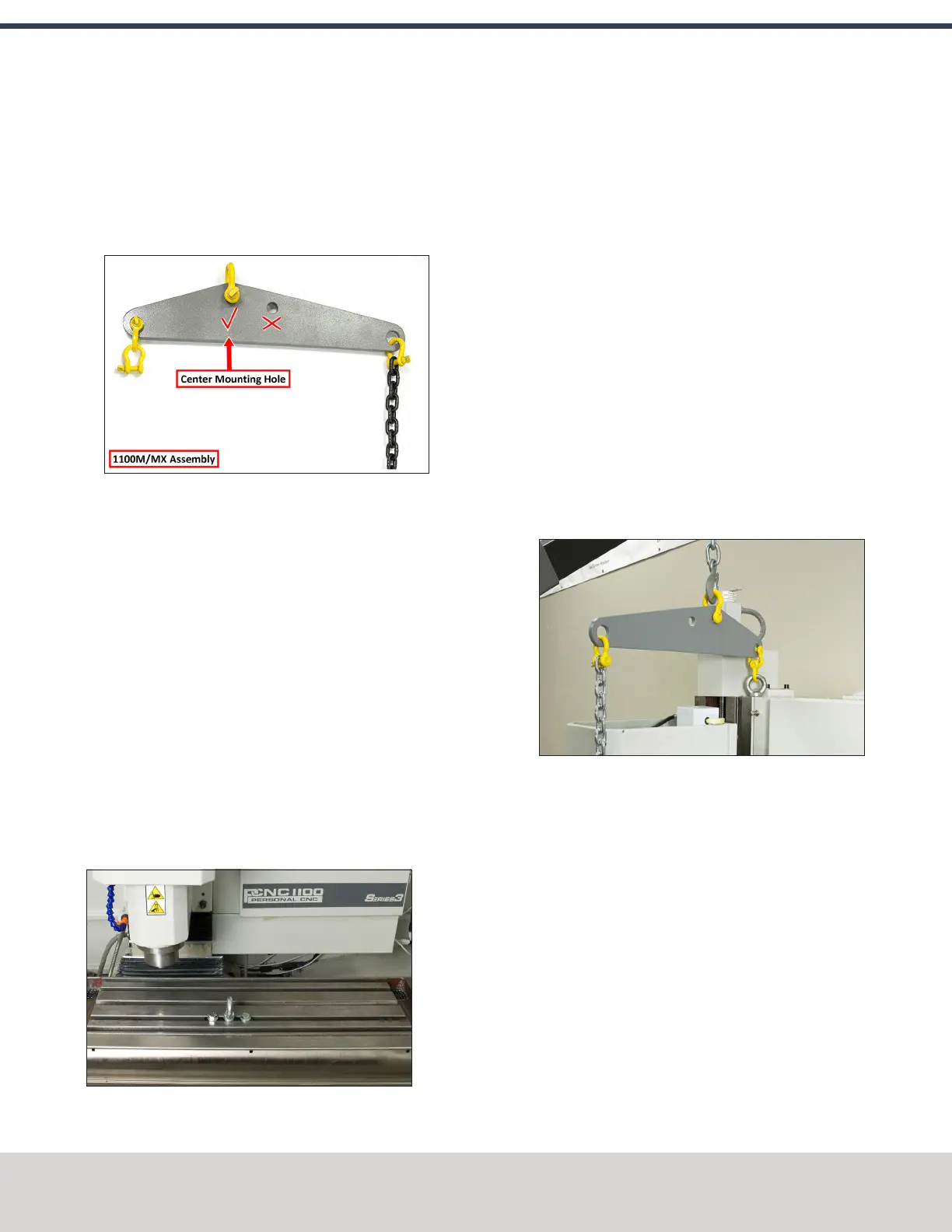

Figure 4-10: Center mounting hole on the Lifting
Bar Kit.
2. Put one 3/8-in. forged lifting clevis and the lifting chain
into the front mounting hole.
3. Depending on your machine, the center hole that you use
varies. Put the 1/2-in. forged lifting clevis in the
appropriate center mounting hole that you identified in
Step 1.
4. Depending on your machine, the procedure for the rear
mounting hole varies:
l
1100M/MX Put two 3/8-in. forged lifting clevises
into the rear mounting hole.
Connect the Machine for Lifting
1. Move three M12 T-nuts into the front T-slot on the
machine table and arrange them in the center as shown
in the following image.
Figure 4-11: Lifting Bar Kit hardware arranged on the
machine table.
2. Put the M12 lifting eye in the center M12 T-nut.
3. Securely tighten the M12 lifting eye with an adjustable
wrench.
4. Put one M12 × 25 mm hex bolt and one M12 flat washer
into the each of the remaining M12 T-nuts.
5. Securely tighten the two M12 × 25 mm hex bolts and
two M12 flat washers with an adjustable wrench.
6. Connect the loose end of the lifting chain to the M12
lifting eye.
7. Connect the hook from your engine hoist to the center
1/2-in. forged lifting clevis on the lifting bar.
8. Depending on your machine, the procedure for
connecting the lifting bar varies:
l
1100M/MX Connect the lifting bar's rear 3/8-in.
forged lifting clevis to the M12 lifting eye on the top
of the machine column.
Figure 4-12: Lifting Bar Kit connected to the
machine.
Lift the Machine
1. Without yet lifting the machine, raise the engine hoist to
remove any slack in the lifting chain.
