2. Attach the left front panel to the left side panel with
eight M5 × 0.8 - 10 screws.

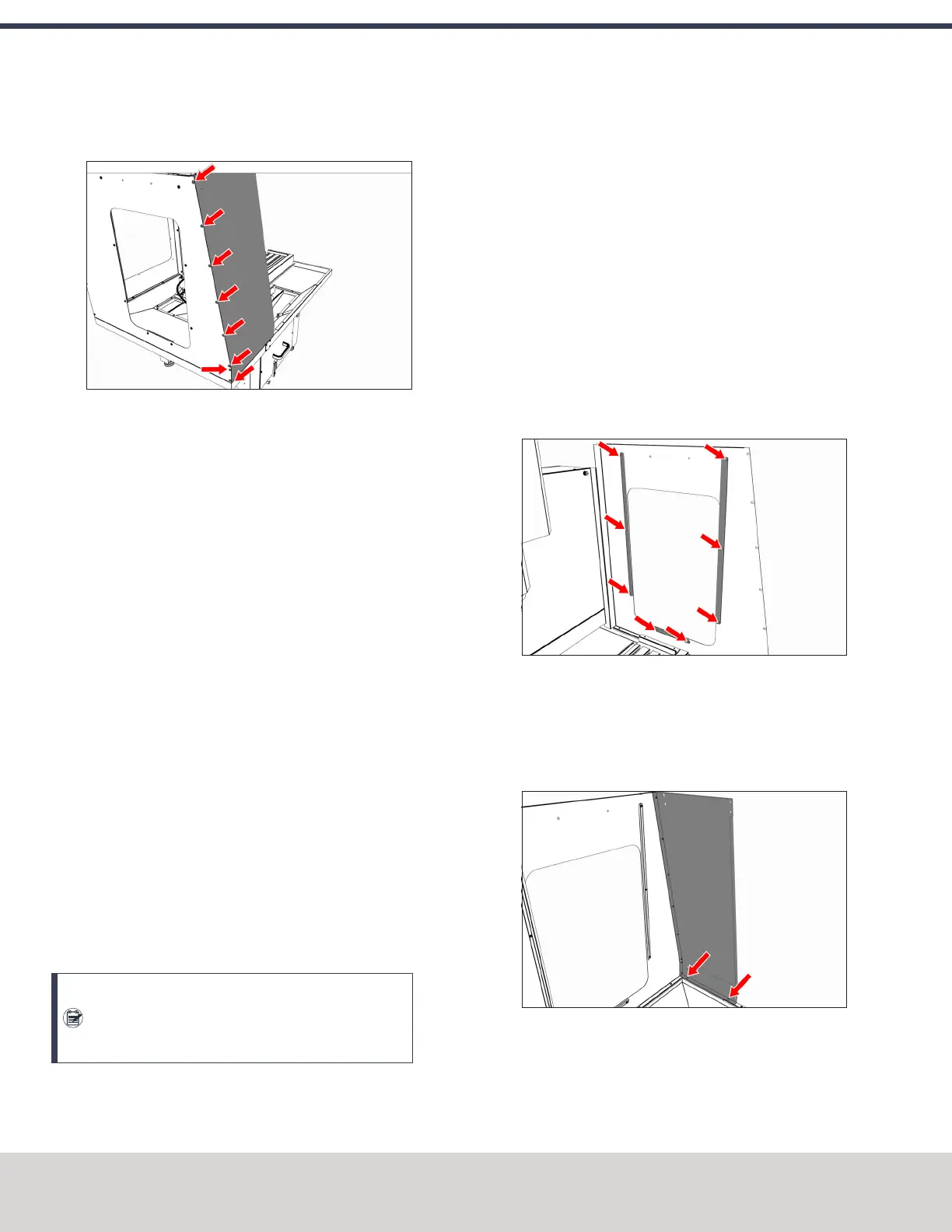

Figure 4-89: Left front panel attached to the left side
panel.
Install the Right Rear Side Panel
1. Find the three installed M5 × 0.8 - 10 screws on the right
side of the electrical cabinet.
2. Remove and set aside the three M5 × 0.8 - 10 screws.
3. Attach the right rear side panel to the electrical cabinet
with the three M5 × 0.8 - 10 screws that you set aside in
Step 2.
Install the Right Rear Top Panel
1. Find the three installed M5 × 0.8 - 10 screws along the
top of the electrical cabinet.
2. Remove and set aside the three M5 × 0.8 - 10 screws.
3. Attach the right rear top panel to the electrical cabinet
with the three M5 × 0.8 - 10 screws that you set aside in
Step 2.
Install the Right Side Panel
1. Attach the right side panel to the right rear panel with
three M5 × 0.8 - 10 screws.
2. Attach the right side panel to the right chip pan with four
M6 × 1.0 - 12 screws.
Install the Right Side Window Retainers
Note: To make it easier to install all components,
don't install the side windows at this time. Wait until
later in the procedure.
1. Push a strip of rubber trim on to the edges of:
l Two light gray vertical window retainers
l One light gray horizontal window retainer
When finished, use shears or a knife to cut the excess
trim.
2. Loosely install two vertical window retainers (light gray)
on both sides of the right side panel's window opening
with two sets of three M5 × 0.8 - 10 screws.
Don't fully tighten the screws. Leaving the window
retainers loose makes it easier to install the side
windows.
3. Loosely attach one horizontal window retainer (light
gray) to the bottom of the right side panel's window
opening with two M5 × 0.8 - 10 screws.
Figure 4-90: Side window retainers attached to the
right side panel.
Install the Right Front Panel
1. Attach the right front panel to the right chip pan with
two M6 × 1.0 - 12 screws.
Figure 4-91: Right front panel attached to the right
chip pan.
