4: INSTALLATION
3. Repeat Steps 1 to 2 to attach the wide door to the top
and bottom linear rail assemblies on the remaining side
of the enclosure.

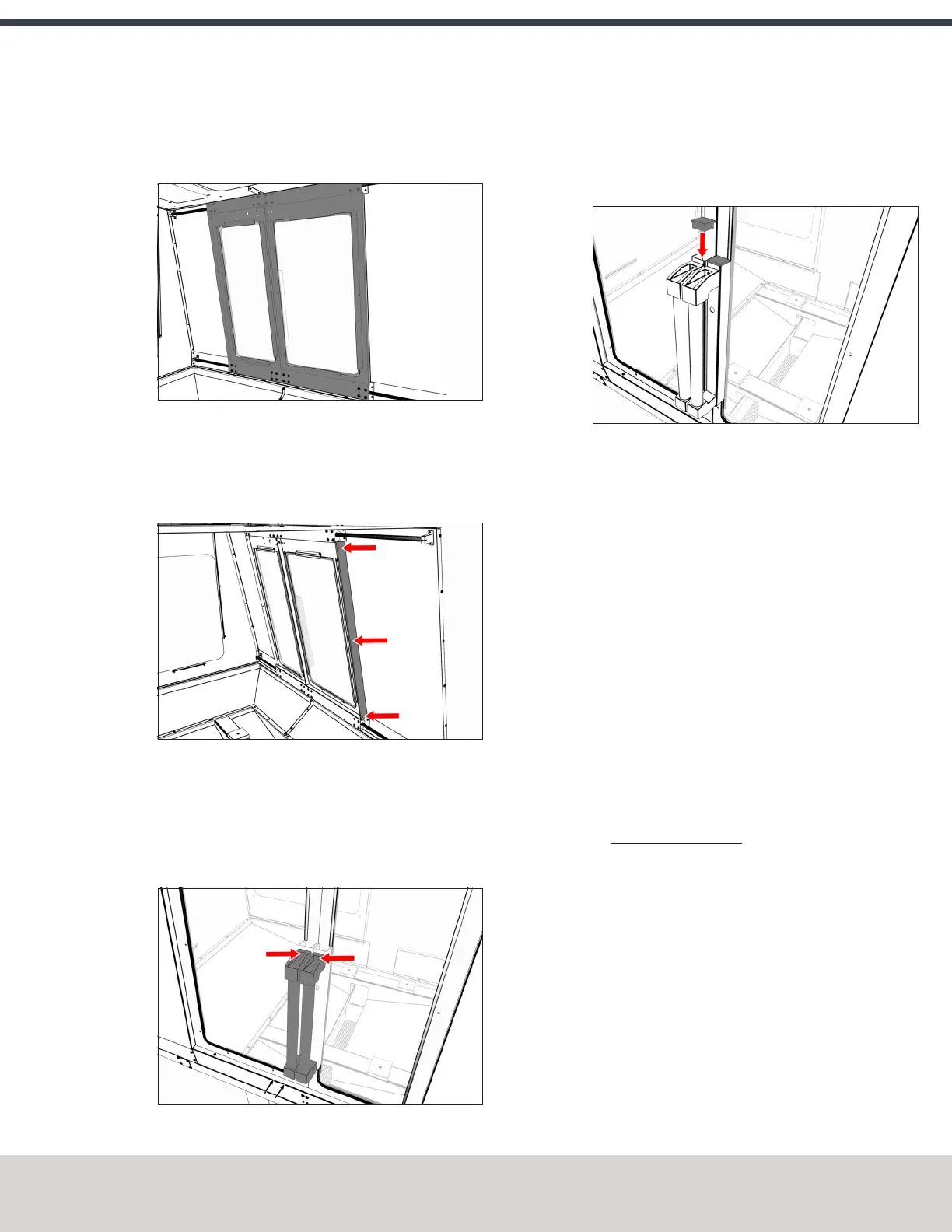

Figure 4-109: Both front doors attached to the
enclosure.
4. To the edge of the front door that's closest to the left
side of the enclosure, attach one door seal with three
M5 × 0.8 - 10 screws.
Figure 4-110: Door seal attached to the edge of the
front door.
5. Repeat Step 4 for the remaining front door.
6. Attach the handles to both front doors with two sets of
two M8 x 1.25 - 20 screws and two sets of two M8 flat
washers.
Figure 4-111: Both front door handles attached to the
enclosure.
7. Push one square tube plug into the top of each door
handle.
Figure 4-112: Square tube plugs pushed into the door
handles.
Install the Door Latch
1. Attach the door latch strike plate on the left front door
with a 2.5 mm hex wrench and two M3 screws.
2. Attach the door latch in the pocket on the right door with
two M3 screws.
Install the Floodlights
1. Use a multimeter to verify the ground connection of both
floodlights:
a. Measure the resistance between the floodlight's
power connector ground pin and the floodlight's
bracket screw.
b. Read the OHMS value that displays. The value should
be less than 5 OHMS. If the value is greater than 5
OHMS, don't install the floodlight. Email
support@tormach.com to contact Tormach Technical
Support for guidance on how to proceed.
2. Position one floodlight over the opening on the right top
panel. Take care not to drop the light through the
opening into the enclosure.
