4: INSTALLATION
5. Loosely attach two of the mount arm brackets to the left
side of the controller with four M4 screws using a 2.5
mm hex wrench, as shown in the following image. Verify
that the curved edge is facing away from the controller.
Note: Don't completely tighten the brackets to
the controller. You'll adjust them when you're
adjusting the height of the entire console
assembly.

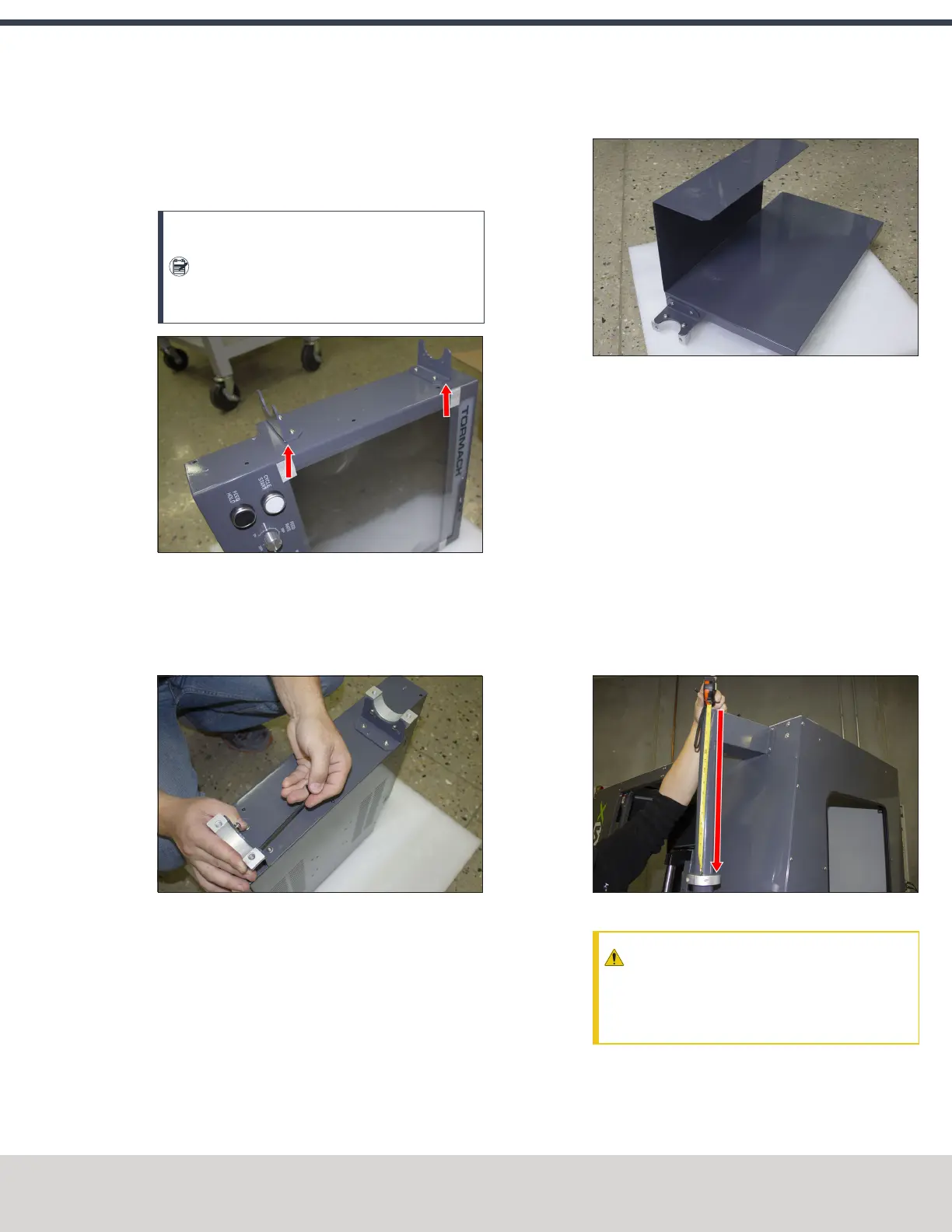

Figure 4-149: Two mount brackets attached to the
controller.
6. Attach one side of two split collars to the mount arm
brackets with four M6 screws and four washers using a 3
mm hex wrench.
Figure 4-150: Split collars attached to the mount arm
brackets on the controller.
7. Find the keyboard tray provided. Then, attach the
remaining mount arm bracket to the left side of the
keyboard tray with two M4 screws using a 2.5 mm hex
wrench. Verify that the curved edge is facing away from
the keyboard tray.
8. Attach one side of one split collar to the mount arm
bracket with two M6 screws, two washers, and two nuts
using a 3 mm hex wrench.
Figure 4-151: Split collar attached to the mount arm
bracket on the keyboard tray.
9. Find the provided jog pendant bracket. Then, attach it to
the left side of the controller (between the two mount
arm brackets) with two M4 screws using a 2.5 mm hex
wrench.
10. Set the keyboard tray aside.
Lift and Secure the Controller Assembly
1. Attach the remaining split collar to the mount arm, and
completely tighten it using a 6 mm hex wrench. This
split collar determines the height for the overall console
assembly, so we suggest attaching it 16-1/2 in. from the
top of the enclosure.
Figure 4-152: Split collar attached to the mount arm.
CAUTION! Team Lift Required:You must have
the aid of more than one person to lift and
move the object. The object is heavy, and lifting
it by yourself can cause serious injury.
2. Lift the console and hold it on the right side of the mount
arm.
