4: INSTALLATION
5. Tap the end plug into the square tube arm with a dead-
blow hammer (or similar).
6. Secure the keyboard table to the monitor mount with a 4
mm hex wrench and four M5 socket head cap screws.

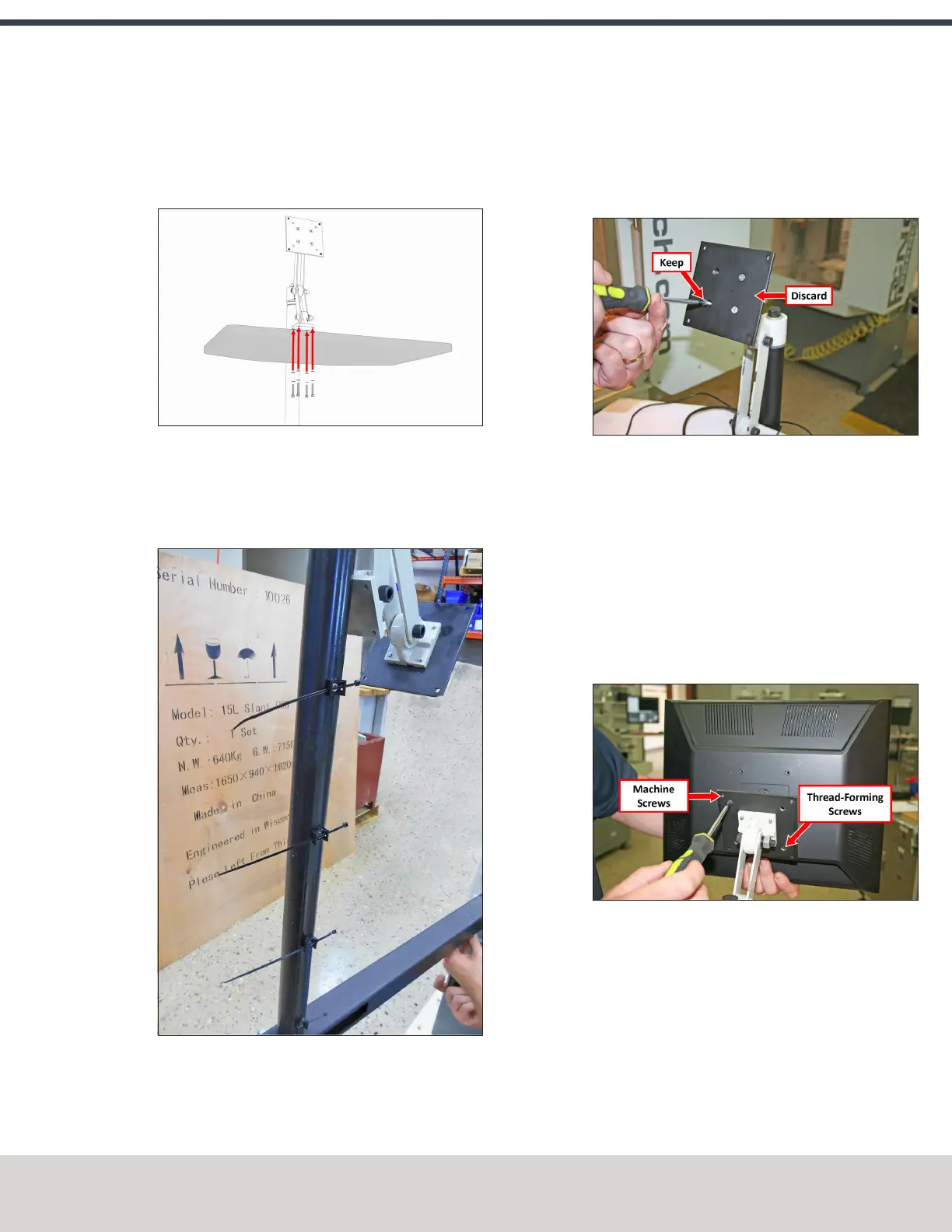

Figure 4-21: Keyboard table aligned to the monitor
mount.
7. Attach four wire tie mounts to the monitor post with a
small, flat-blade screwdriver and four 4 mm flat head
cap screws.
Figure 4-22: Four wire tie mounts attached to the
monitor post.
Install the Monitor
1. Remove the four screws on the existing monitor
mounting plate with a Phillips screwdriver. Set aside the
screws, and discard the existing monitor mounting plate.
Figure 4-23: Existing monitor mounting plate.
2. Mount the VESA mount plate to the Controller Arm with
the four screws that you set aside in Step 1.
3. Align the monitor with the VESA mount plate.
4. Attach the top of the monitor to the VESA mount plate
with a Phillips screwdriver and two M4 × 10 mm
machine screws.
5. Attach the bottom of the monitor to the VESA mount
plate with a Phillips screwdriver and two M4 × 10 mm
thread-forming screws.
Figure 4-24: Monitor installed on the VESAmount
plate.
Make Monitor Connections
1. Connect the monitor's cables.
2. Route all of the cables' loose ends down the Controller
Arm.
