Assemble the Front Doors

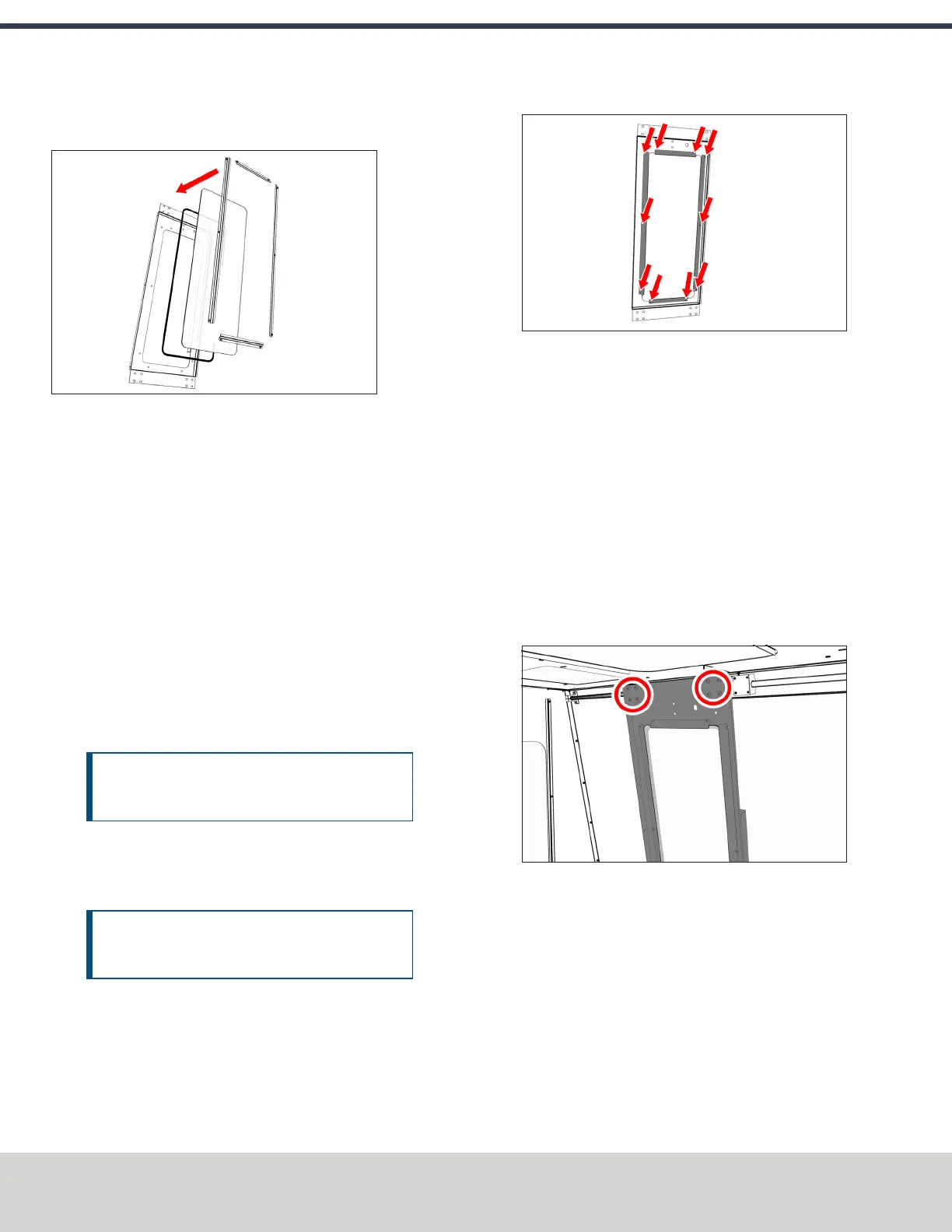

Figure 4-106: Rubber trim, window, and window retainers
layered to assemble the front door.
1. Push a strip of rubber trim onto the edge of the window
opening on each front door. Make sure that the trim
starts at one end of the door handle mount, continues
around the perimeter of the window, and ends at the
opposite side of the door handle mount. When finished,
use shears or a knife to cut the excess trim.
2. Remove and discard the protective plastic film from
each window.
3. On the inside of one front door, put one window on top
of the rubber trim.
4. Attach one dark gray, vertical window retainer to both
sides of the front door's window opening with two sets
of three M5 × 0.8 - 10 screws.
NOTICE! To prevent window damage from over-
tightening, use your fingers to tighten the screws.
5. Attach one dark gray, horizontal window retainer to the
top and bottom of the front door's window opening with
two sets of two M5 × 0.8 - 10 screws.
NOTICE! To prevent window damage from over-
tightening, use your fingers to tighten the screws.
Figure 4-107: Window retainers attached to the front
door.
6. Repeat Steps 1 through 5 to assemble the remaining
front door.
Install the Front Door Assemblies
Each front door is attached to the enclosure by securing it to
the linear bearings: the wider door is mounted on the left side
of the enclosure, and the narrower door is mounted on the
right side of the enclosure.
To install the front doors:
1. Starting with the top linear assembly, attach the narrow
door to the two upper linear bearings with two sets of
four M5 × 0.8 - 10 screws.
Figure 4-108: Narrow door attached to the top linear
assembly.
2. Move the bottom of the narrow door into alignment with
the bottom linear assembly. Then, attach the narrow
door to the two bottom linear bearings with two sets of
four M5 × 0.8 - 10 screws.
©Tormach® 2020
Specifications subject to change without notice.
Page 76 Tormach 1100MX Operator's Manual (Version 0720A)
For the most recent version, see tormach.com/support
4: INSTALLATION
