4: INSTALLATION
4. Select Install.

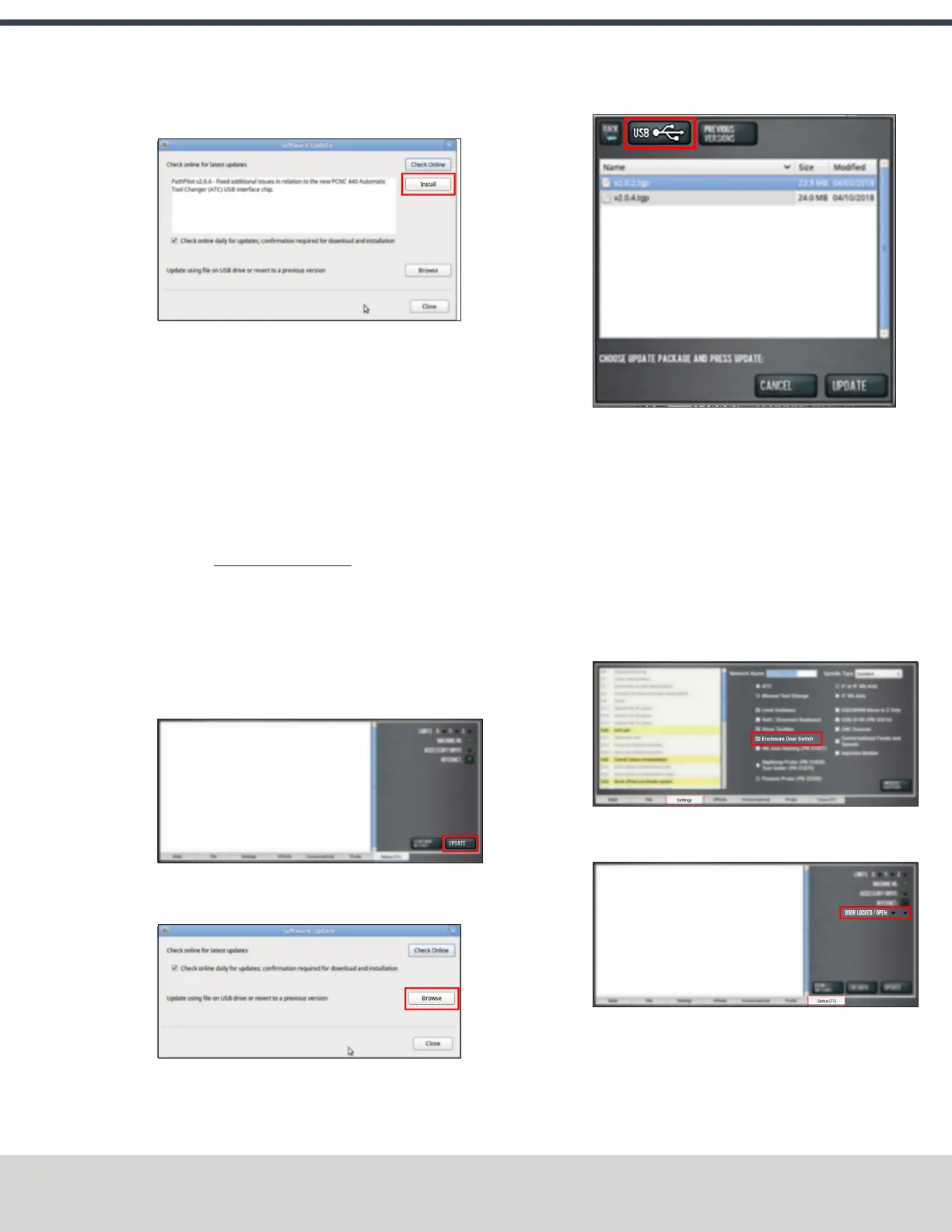

Figure 4-133: Install button on the Software Update
dialog box.
The update file is downloaded, and a notification dialog
box displays.
5. From the dialog box, select OK.
The update file is installed on the PathPilot controller.
6. Follow the on-screen instructions to restart the PathPilot
controller.
Install an Update File from a USB Drive
1. From the PathPilot support center, download the most
recent PathPilot update file.
2. Transfer the PathPilot update file to a USB drive.
3. Put the USBdrive into the PathPilot controller.
4. Confirm that the PathPilot controller is powered on and
out of Reset mode.
5. From the Status tab, select Update.
Figure 4-134: Update button on the Status tab.
6. From the Software Update dialog box, select Browse.
Figure 4-135: Software Update dialog box.
7. From the Browsedialog box, select USB.
Figure 4-136: Browse dialog box.
8. Select the desired update file, and then select Update.
The update file is installed on the PathPilot controller.
9. Follow the on-screen instructions to restart the PathPilot
controller.
Enable the Door Lock Switch Kit
If you have a Door Lock Switch Kit, you must first enable it in
PathPilot.
To enable the Door Lock Switch Kit:
1. On the Settings tab, select Enclosure Door Switch.
Figure 4-137: Settings tab.
On the Status tab, the Door Locked / Open LEDs display.
Figure 4-138: Status tab.
2. Reference the machine: select Ref Z, Ref X, and Ref Y.
3. Open the enclosure doors.
