6.4.2 Icon

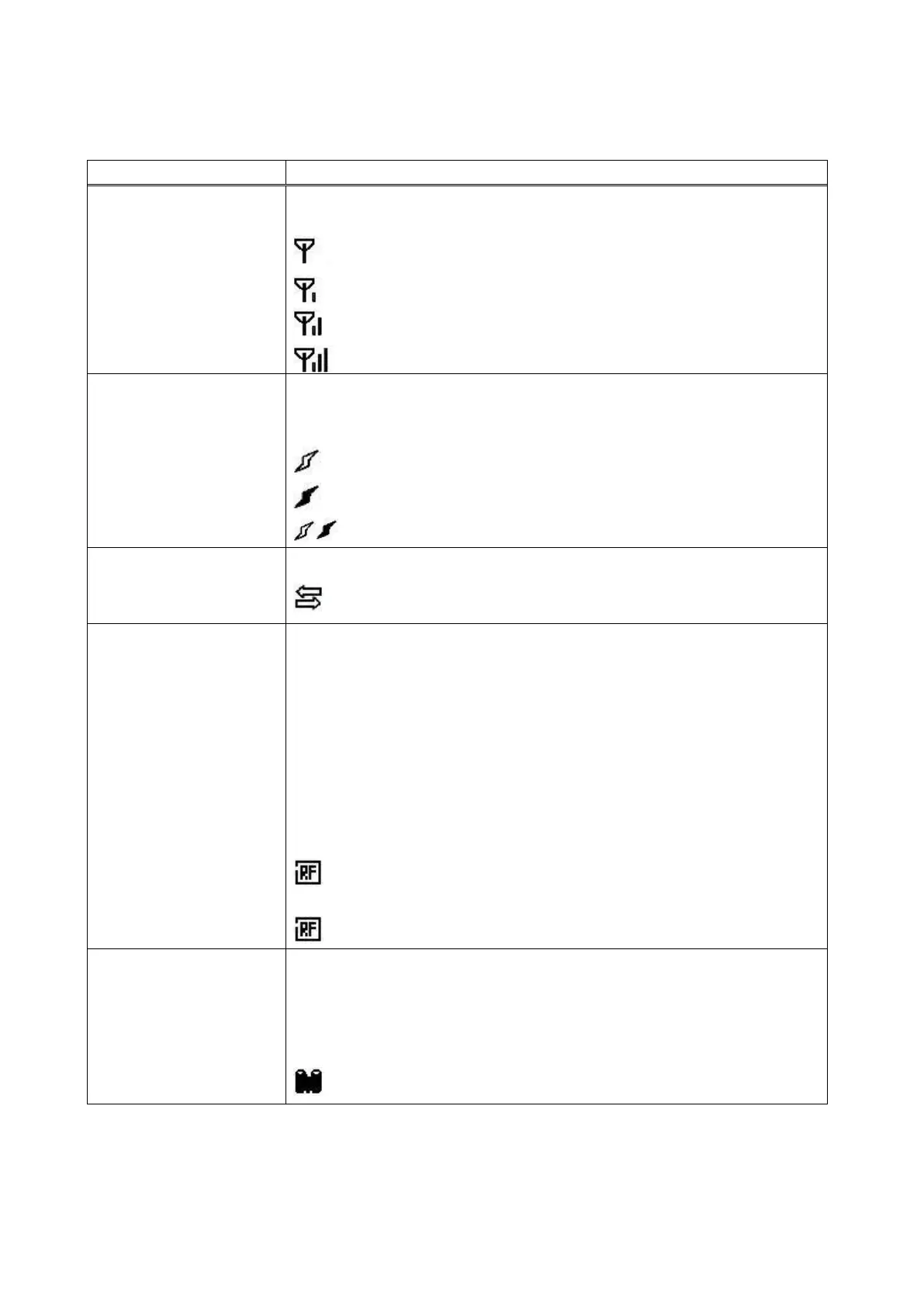

Five kinds of icon are displayed in the bottom line of the online mode screen.
These icons are displayed only in the online mode screen.
Icon
Explanation
Wireless LAN icon
 Displayed and used when the wireless LAN module is installed.
 The graph shows the radio field strength.
Graph 0: Outside the communication range
Graph 1: Radio field strength is weak.
Graph 2: Radio field strength is middle.
Graph 3: Radio field strength is strong.
Link icon
 Displayed and used when the wireless LAN module is installed.
 Displayed while the printer is communicating by wireless LAN.
 Flashes while roaming.
OFF: No connection
ON: Connecting to an access point
Flashing: Roaming (*1)
Data transmission icon
 Appears when a print job is present.
ON: Print job is present.
RFID icon
 Displayed and used when the RFID module is installed.
 Appears when the RFID module type has been set and a
communication between the printer and the RFID module is enabled.
 Flashes while communications and operating sequence are made with
the RFID module.
- The communications without radio wave output are included.
- After radio wave output is instructed to the module, this icon flashes even
when there is no radio wave output.
(Flashes while the module stops outputting radio wave under the influence
of other carriers or while changing the channel.)
ON: Module type has been set and the printer is ready to
communicate with the RFID module.

Flashing: Communicating
Ribbon near end icon
 Ribbon near end is detected.
 Flashes when the ribbon is close to the end.
 Ribbon near end is detected depending on the diameter of unused
ribbon. 38 mm is equivalent to 30-meter ribbon and 43 mm is
equivalent to 70-meter ribbon.
Flashing: Ribbon near end state (*1)
(*1) The icon flashes at a 1-second interval (ON: 500 msec. OFF: 500 msec.)
