4.7 Keyboard 4 Replacement Procedures
3. Lift the upper side of the keyboard and turn it face down on the palm rest.
4. Remove the following screw and keyboard support plate.
• M2.5×8B FLAT BIND screw ×1
5. Disconnect the keyboard cable from the connector CN3200 on the system board and
remove the keyboard.
CN3200
M2.5x8B FLAT BIND
Keyboard support plate
Keyboard cable

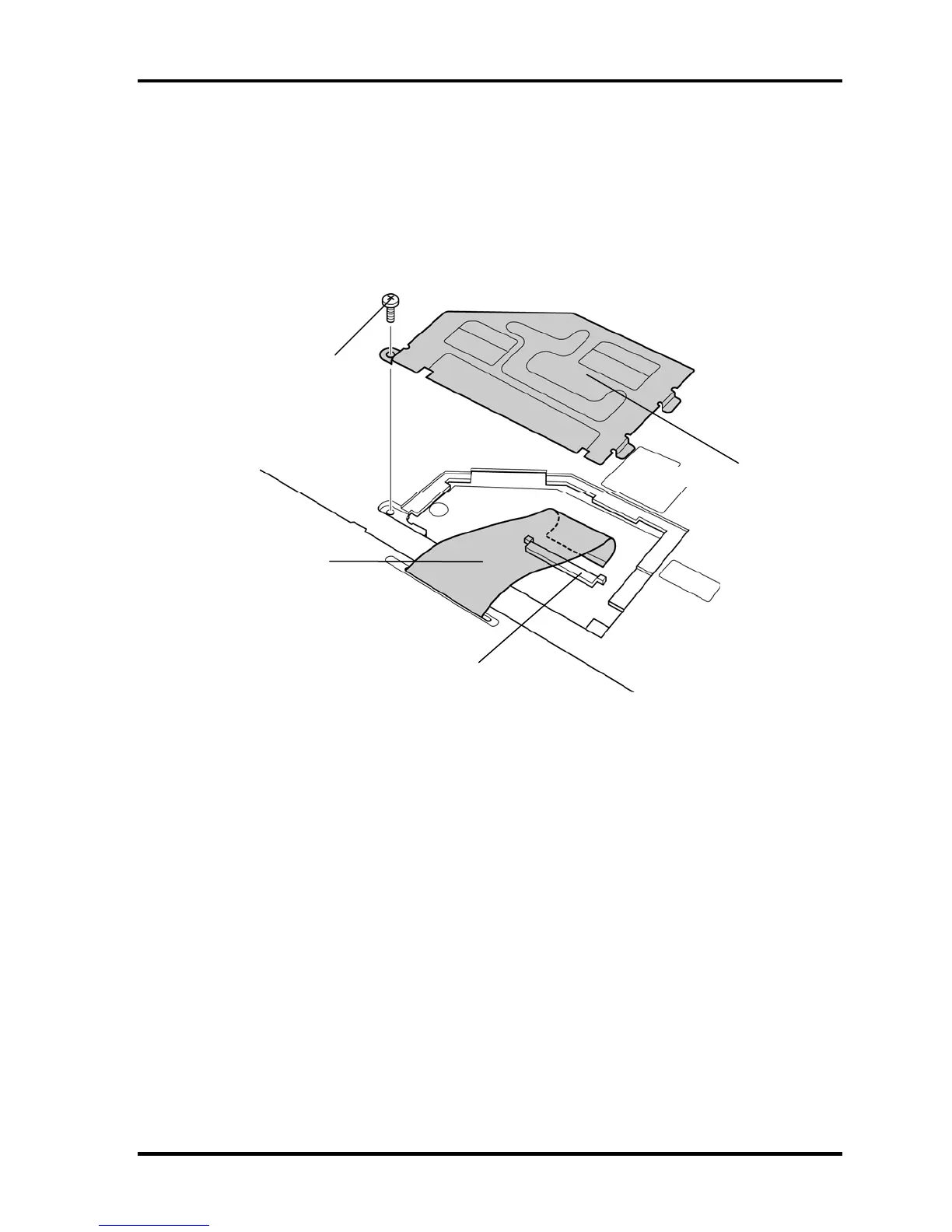

Figure 4-11 Removing the keyboard (2)
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-21
