4.12 Touch pad 4 Replacement Procedures
Insulator
Insulator
Button cable
Touch pad cable
Dual Mode touch pad
Double-sided tape
(Rux pad model)
Insulator
Insulator
Button cable
Touch pad cable
Double-sided tape
Touch pad
(Touch pad model)
M1.8×3S S-THIN HEAD
TP board

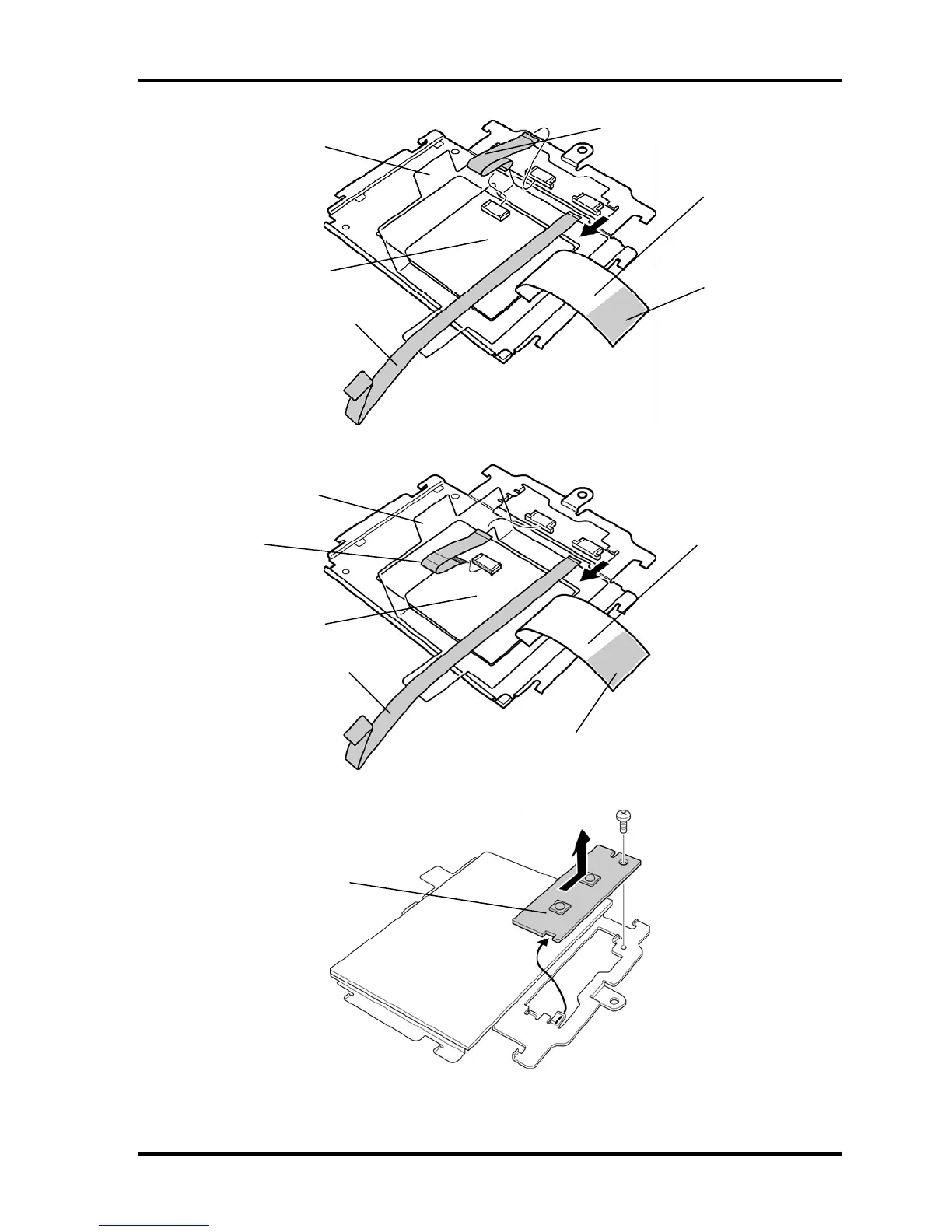

Figure 4-19 Removing the cables and TP board
