4 Replacement Procedures 4.12 Touch pad
Installing the touch pad
The following describes the procedure for installing the touch pad (See Figure 4-18, 4-19).
1. Install the TP board to the touch pad and secure it with the following screw.
• M1.8×3S S-THIN HEAD screw ×1

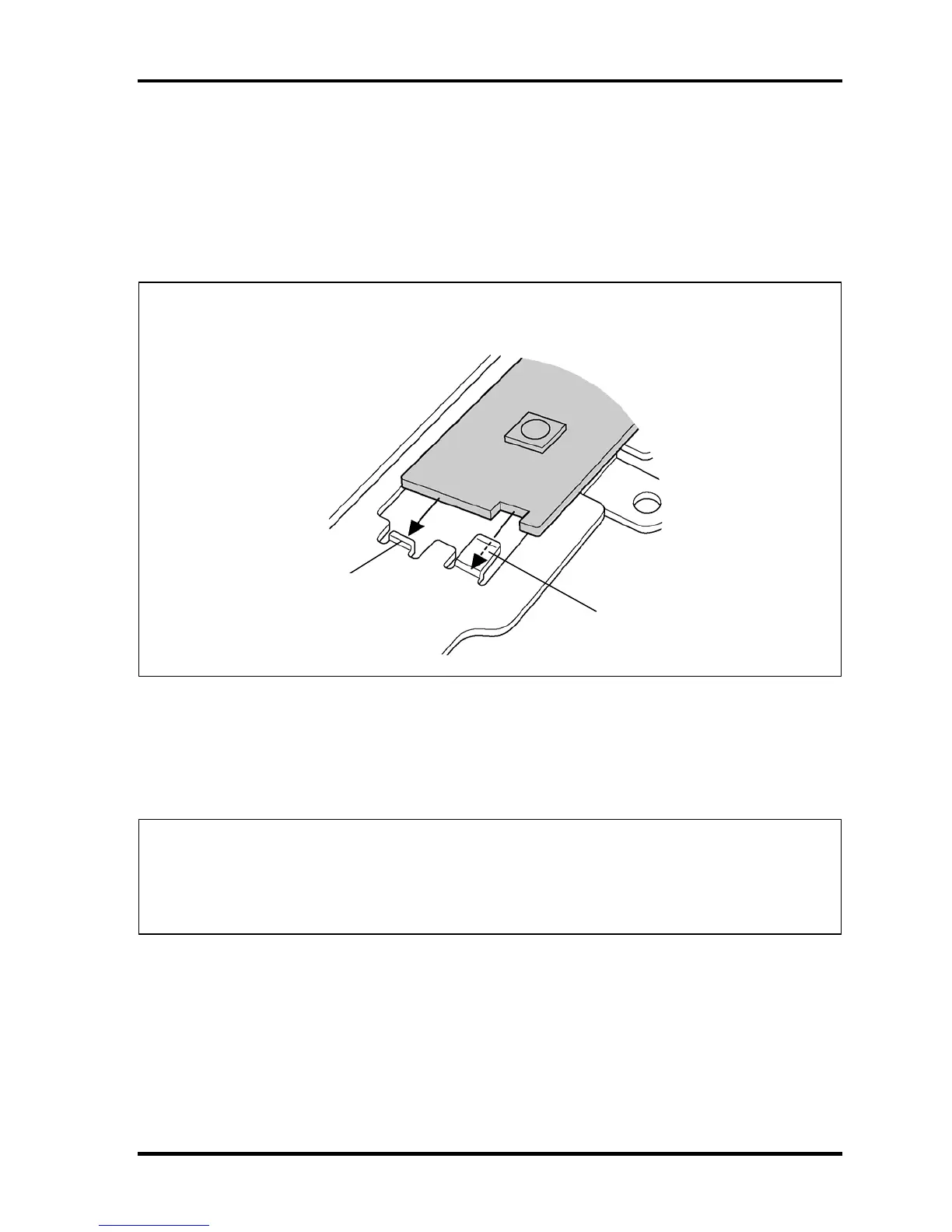

NOTE: When installing the TP board, insert the dent of the TP board under the guide
and slide the TP board to the rib.
Guide
Rib
2. Turn up the insulator and connect the button cable to the connector on the touch pad
and TP board.
3. Turn up the insulator and connect the touch pad cable to the connector on the TP
board.
NOTE: Do not reuse the touch pad so that it can not be used after peeling off from the
computer. Be sure to stick a new touch pad.
When installing the touch pad, be careful not to get the bubbles under the touch
pad.
4. Install the touch pad assembly to the cover assembly while sliding it in the opposite
direction of the arrow in Figure 4-18.
5. Secure the touch pad assembly with the following screw.
• M2.5×6S Tapping screw ×1
4-34 [CONFIDENTIAL] QOSMIO G30 Maintenance Manual (960-546)
