4.17 Optical disk drive 4 Replacement Procedures
4. Remove the following screw securing the ODD side bracket and remove the ODD
side bracket.
• M2.0×3S S-THIN HEAD screw ×1
5. Remove the following screws securing the ODD rear bracket.
• M2.0×2.7B S-THIN HEAD screw ×2
6. Remove the ODD rear bracket from the ODD assembly.
ODD side bracket
ODD rear bracket
M2.0x3S S-THIN HEAD
M2.0x2.7B S-THIN HEAD

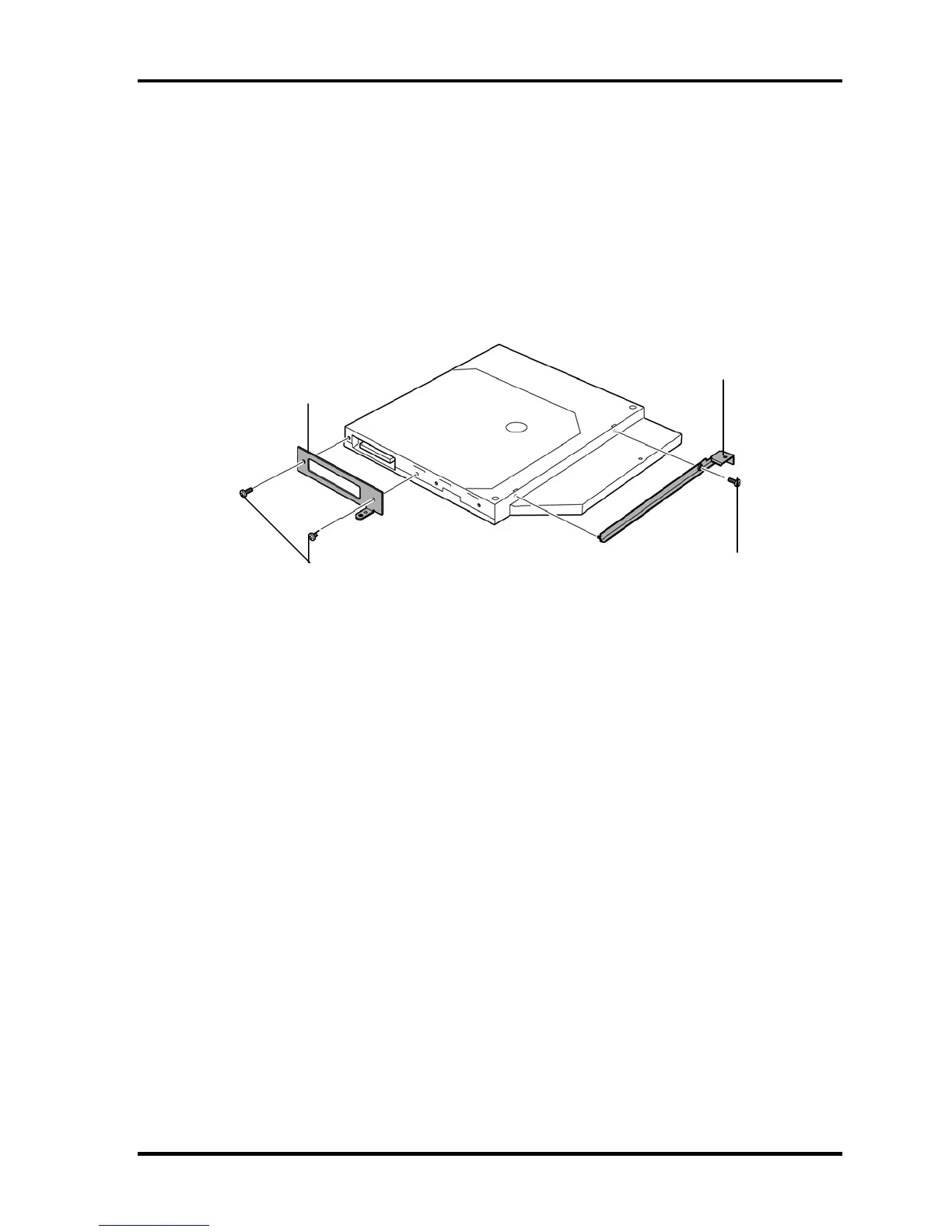

Figure 4-26 Removing the ODD rear bracket
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-43
