4.36 Fluorescent Lamp 4 Replacement Procedures

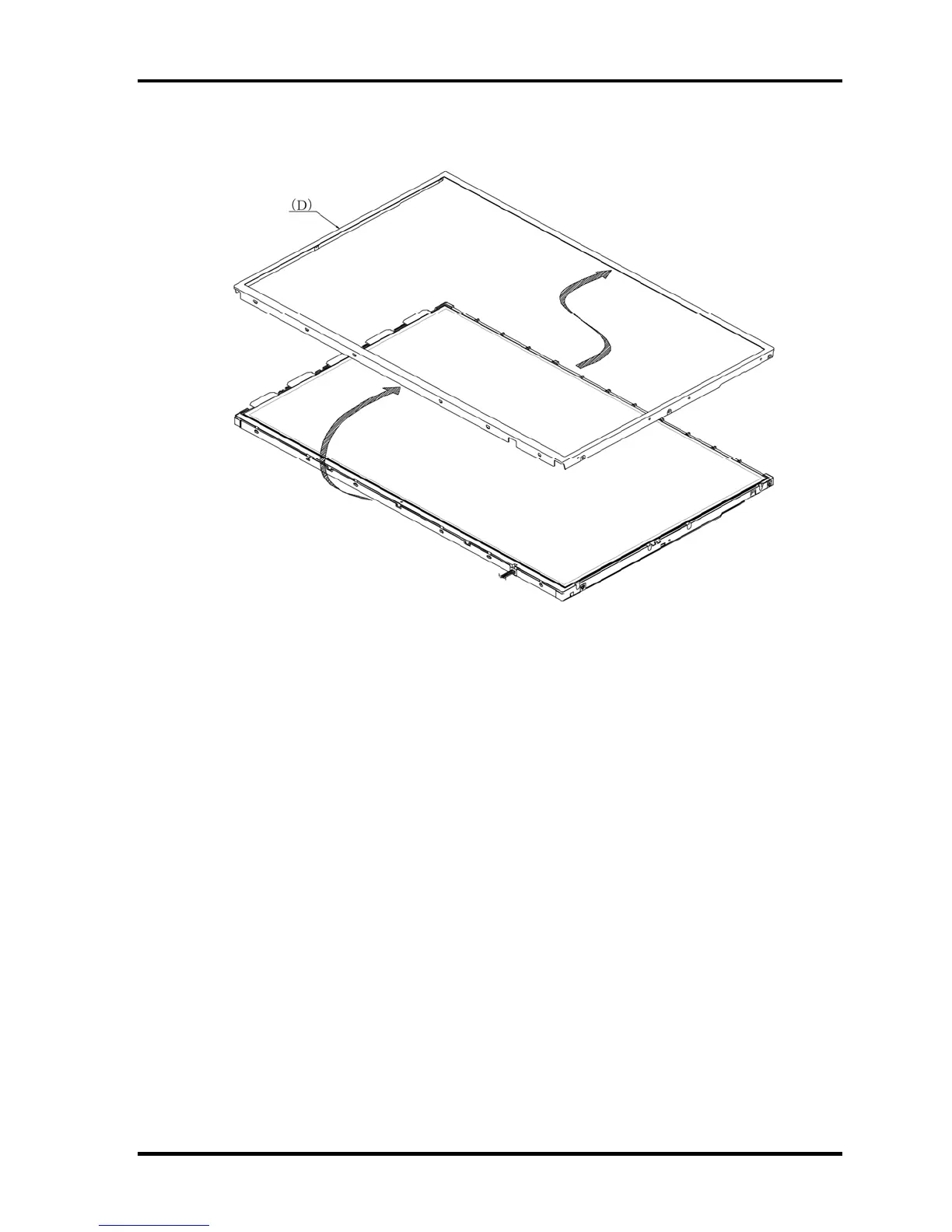

2. Turn the LCD module face up and remove the bezel (D).
(2) Remove the bent portion of the bezel.
(1) Remove 6 latches of the bezel.
Figure 4-61 Replacing 17.1 Inch Sharp fluorescent lamp (2)
QOSMIO G30 Maintenance Manual (960-546) [CONFIDENTIAL] 4-91
