Setting the frequency using the setting dial, and run/stop using the
panel keypad (2)

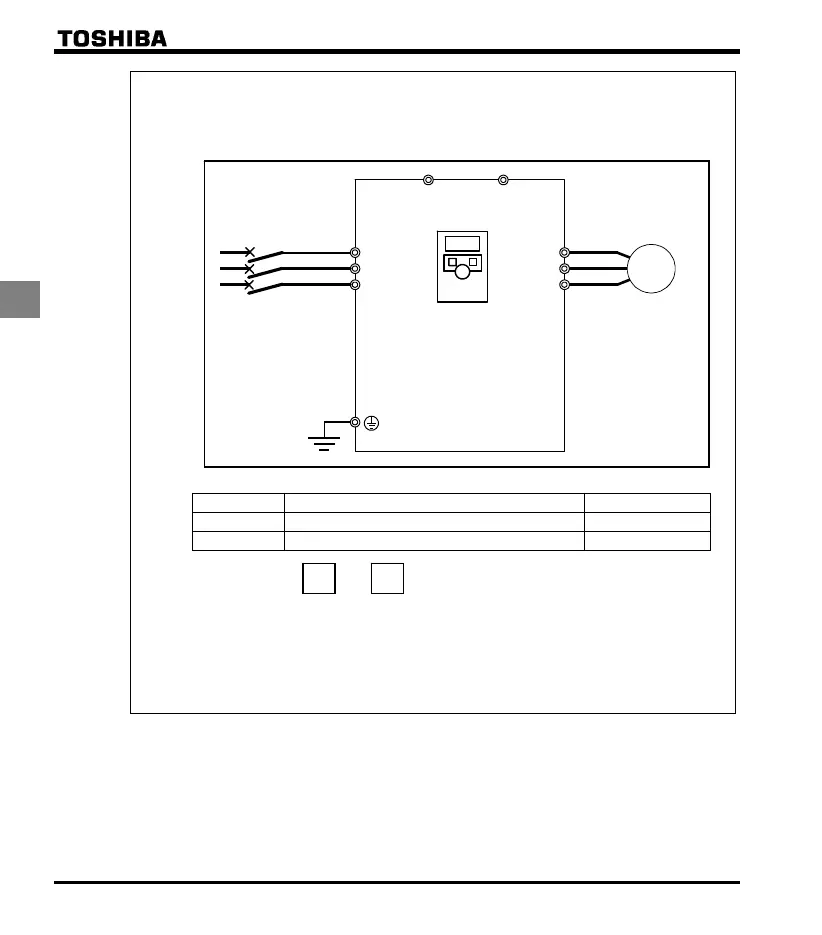

(1) Wiring
(2) Parameter setting
Title Function Pro
g
rammed value

Command mode selection 1

Frequenc
y
settin
g
mode selection 1
(3) Operation
Run/stop: Press the and keys on the panel.
Frequency setting: Turn the setting dial to set the frequency.
To save the frequency setting, press the center of the setting dial.
and the set frequency will flash on and off alternately.
Motor
IM
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
PB
PA/+
Operation panel
Ex.2
RUN
STOP
