C-9
3
Setting the frequency using the setting dial, and run/stop using
external signals

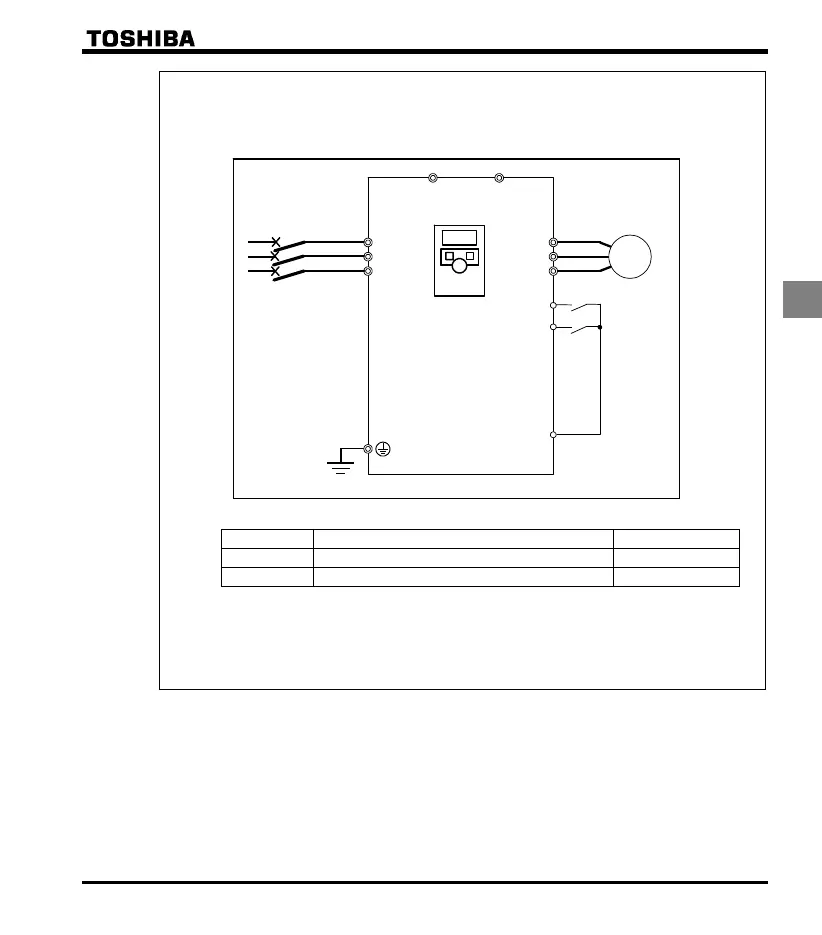

(1) Wiring
(2) Parameter setting
Title Function Pro
g
rammed value

Command mode selection 0

Frequenc
y
settin
g
mode selection 1 or 2
(3) Operation
Run/stop: ON/OFF input to F-CC, R-CC. (with sink logic)
Frequency setting: Turn the setting dial to set the frequency.
Motor
IM
F
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
Forward
signal
R
CC
PB
PA/+
Reverse
signal
Common
MCCB
Operation panel
Ex.3
