Toshiba TOSVERT VF-nC3E - Page 58

E6582233
C-10
3
Setting the frequency using external signals, run/stop using external
signals.

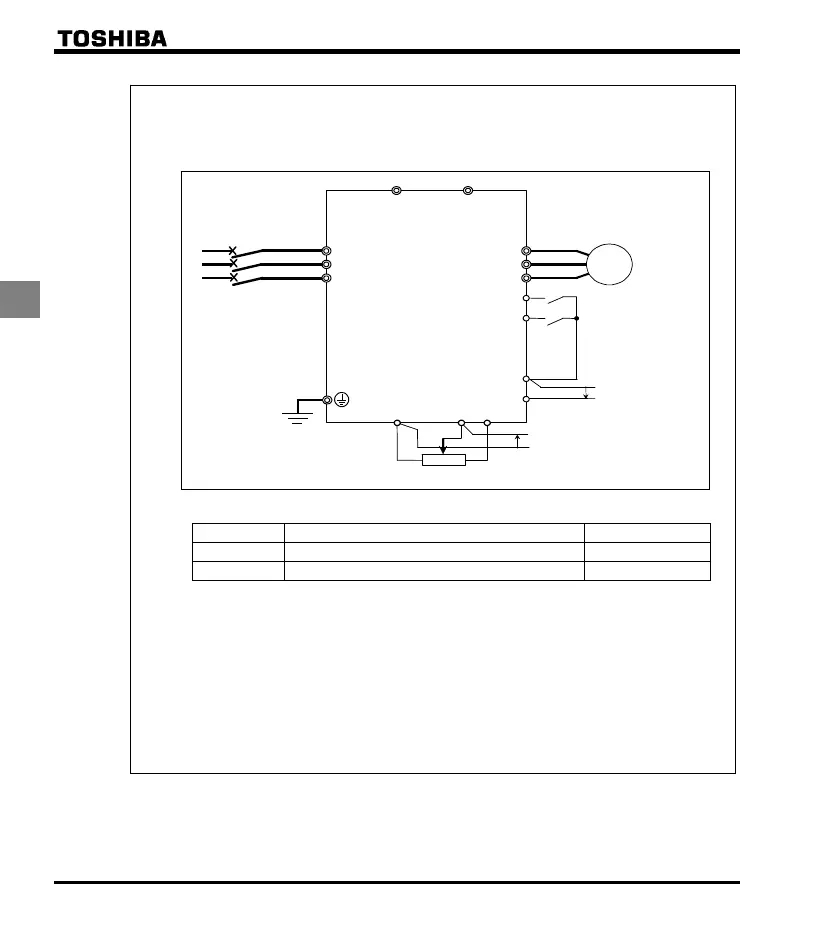

(1) Wiring
(2) Parameter setting
Title Function Pro
g
rammed value

Command mode selection 0

Frequenc
y
settin
g
mode selection 0
(3) Operation
Run/stop: ON/OFF input to F-CC, R-CC. (with sink logic)
Frequency setting: VI: Input 0-10Vdc (external potentiometer) or 4-20mAdc to set the frequency.
* Set the voltage/current input of VI in parameter .
0: Voltage signal input (0-10V)
1: Current signal input (4-20mA)
3: Voltage signal input (0-5V), when the P5 terminal is connected and the external potentiometer is
used
Motor
IM
F
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
Forward signal
R
PB
PA/+
Reverse signal
MCCB
CC
VI
Common
Current signal: 420mA
CC
VI
PP
Voltage signal: 010V / 05V
External potentiometer
(Otherwise, input voltage signal between the terminals VI-CC.)
Ex.4
