Ball screw spline unit
2.7.2 Ball Screw Spline Unit Location

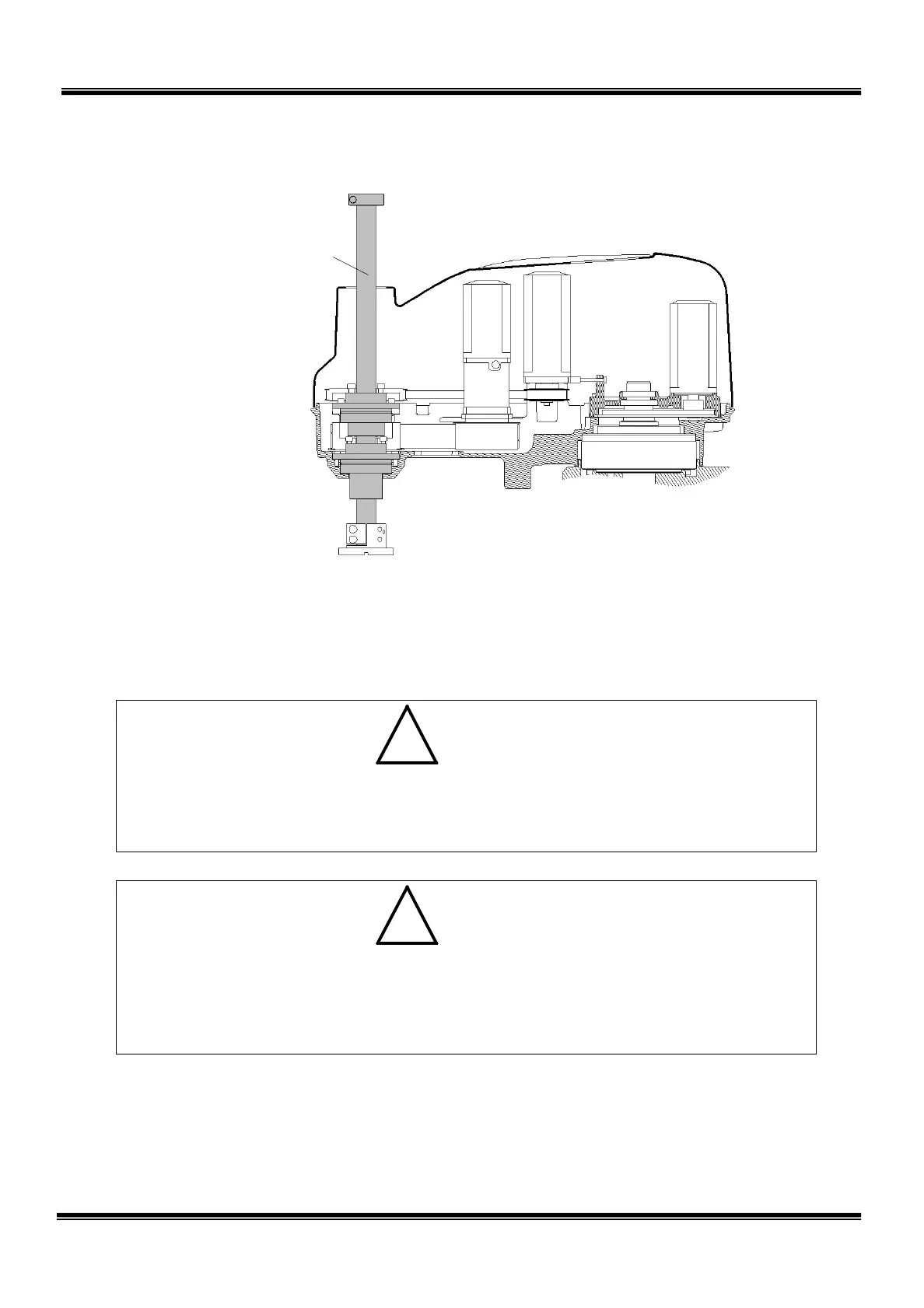

Fig. 2.12 Ball screw spline unit location
2.7.3 Filling Grease to Ball Screw Spline Unit
! CAUTION
• When vertically moving the ball screw by hand, take careful precautions not to
have your hand or finger caught.
• As there is a fear that the grease drops, cover the peripheral equipment, etc.
! CAUTION
• When the grease has run short, cut or scratch will be caused on the slide unit,
etc., resulting in drop of the performance. To avoid this, take careful
precautions to prevent shortage of the grease.
• Be sure to use the grease designated by Toshiba Machine.
Fill the grease to the ball screw spline unit every three (3) months.
At daily inspection also, make sure that the ball screw spline unit is filled with a
sufficient volume of grease.
STE 85306
– 55 –
