MAINTENANCE MANUAL
Axis 2
reduction gear
Axis 4
reduction gear
Axis 1 reduction gear
2.8.2 Reduction Gear Locations

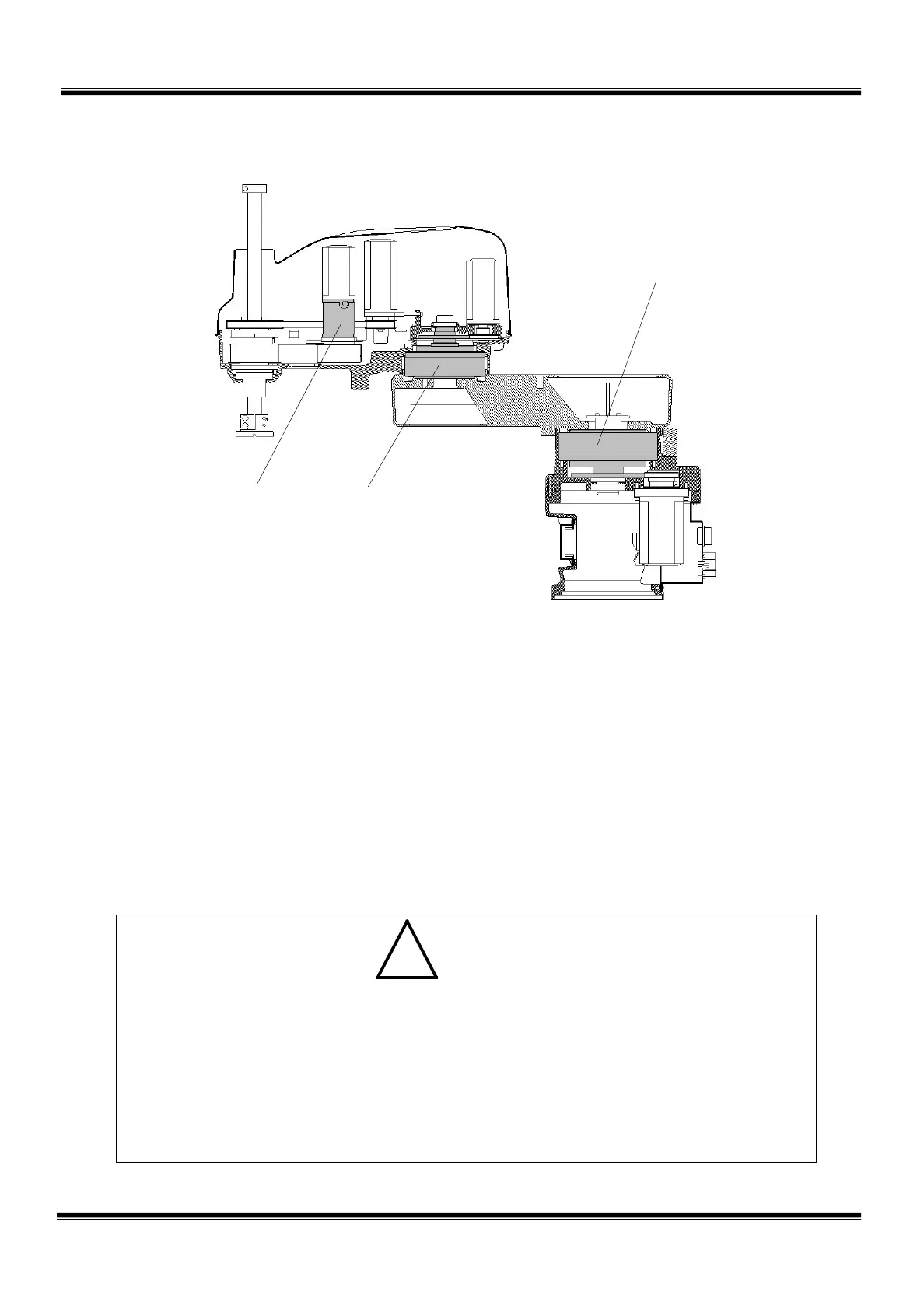

Fig. 2.13 Reduction gear locations
2.8.3 Filling Grease to Reduction Gear
When the reduction gears are used under the normal operating conditions, regular
greasing of them is unnecessary. Replace the reduction gears at the time of
overhauling. For the axes 1 and 2, however, if the reduction gears are used under
the conditions of high operation duty and heavy load, fill the grease to them every
10,000 hours (i.e., approximately two (2) years). Greasing of the axis 4 reduction
gear is unnecessary.
! CAUTION
When the grease has run short, cut or scratch will be caused on the reduction
gear interior or gear, resulting in drop of the performance. To avoid this, take
careful precautions to prevent shortage of the grease.
Be sure to use the grease designated by Toshiba Machine.
Increase in internal pressure will adversely affect the starting torque and
damage the internal seal. To avoid this, be sure to observe the grease filling
volume.
STE 85306
64
