2.2 Details of Inspection
2.2.1 Check of Each Bolt (or Screw) for Clamping
(1) Tool Set Bolts
Make sure, using the hexagonal wrench key, that the hexagon socket head cap
screws of the tool set flange, which are clamped to the tool shaft are tightened
completely. If loosened, tighten them completely.
Make sure, using the hexagonal wrench key, that the hexagon socket head cap
screws securing the tool flange and tool are tightened completely. Otherwise,
tighten them completely.

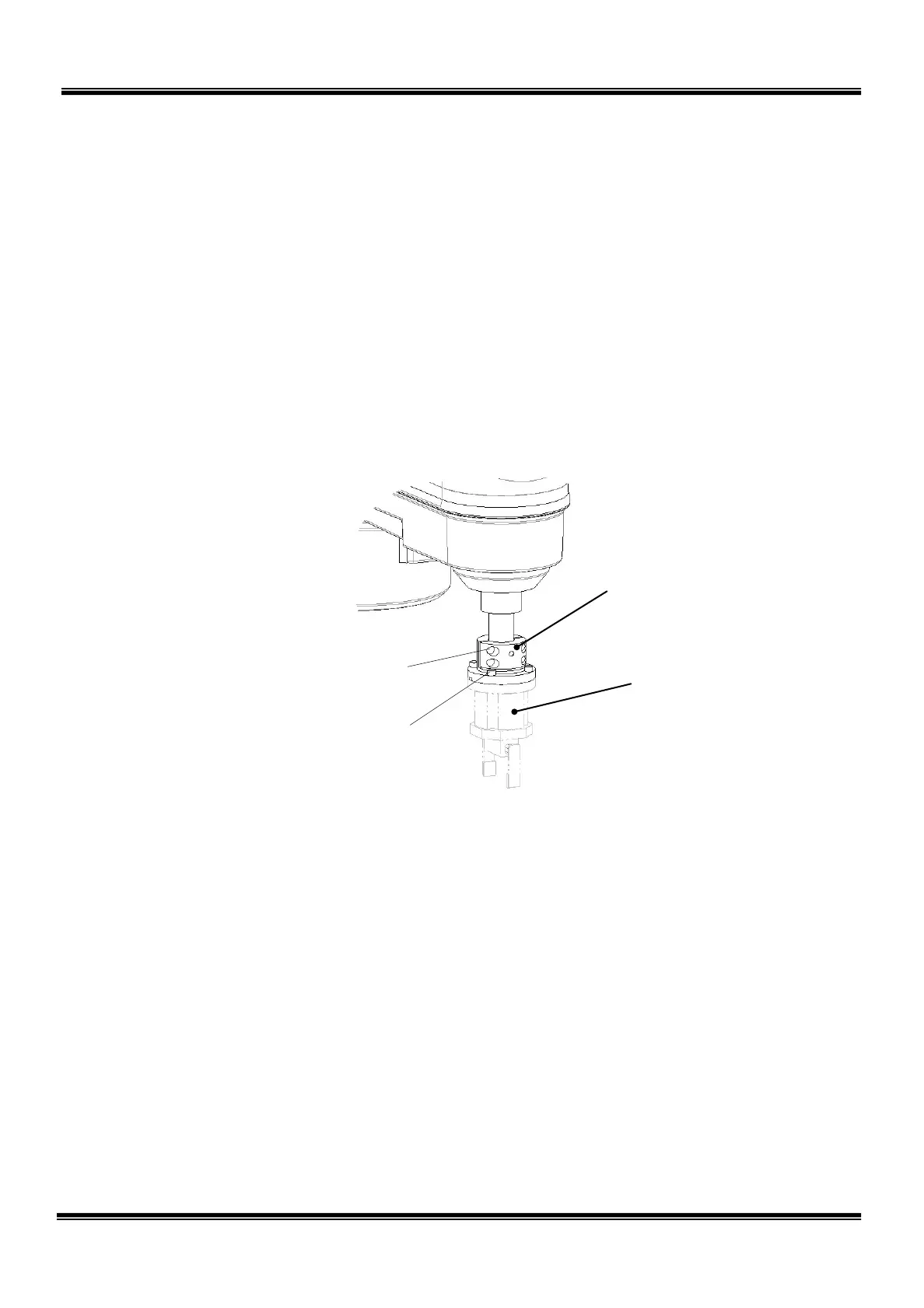

Fig. 2.1 Tool set bolts
(2) Robot Installation Bolts
Make sure, using the hexagonal wrench key, that the installation bolts of the
main robot base are tightened completely. If loosened, tighten them
completely.
Tool flange clamp bolt
M5 x 4 pcs.; Recommended
clamping torque 8.8 N·m
Tool set bolt
M5 x 4 pcs.; Recommended
clamping torque 8.8 N·m
STE 85306
– 18 –
