Toshiba TS3100 - Page 61

MAINTENANCE MANUAL

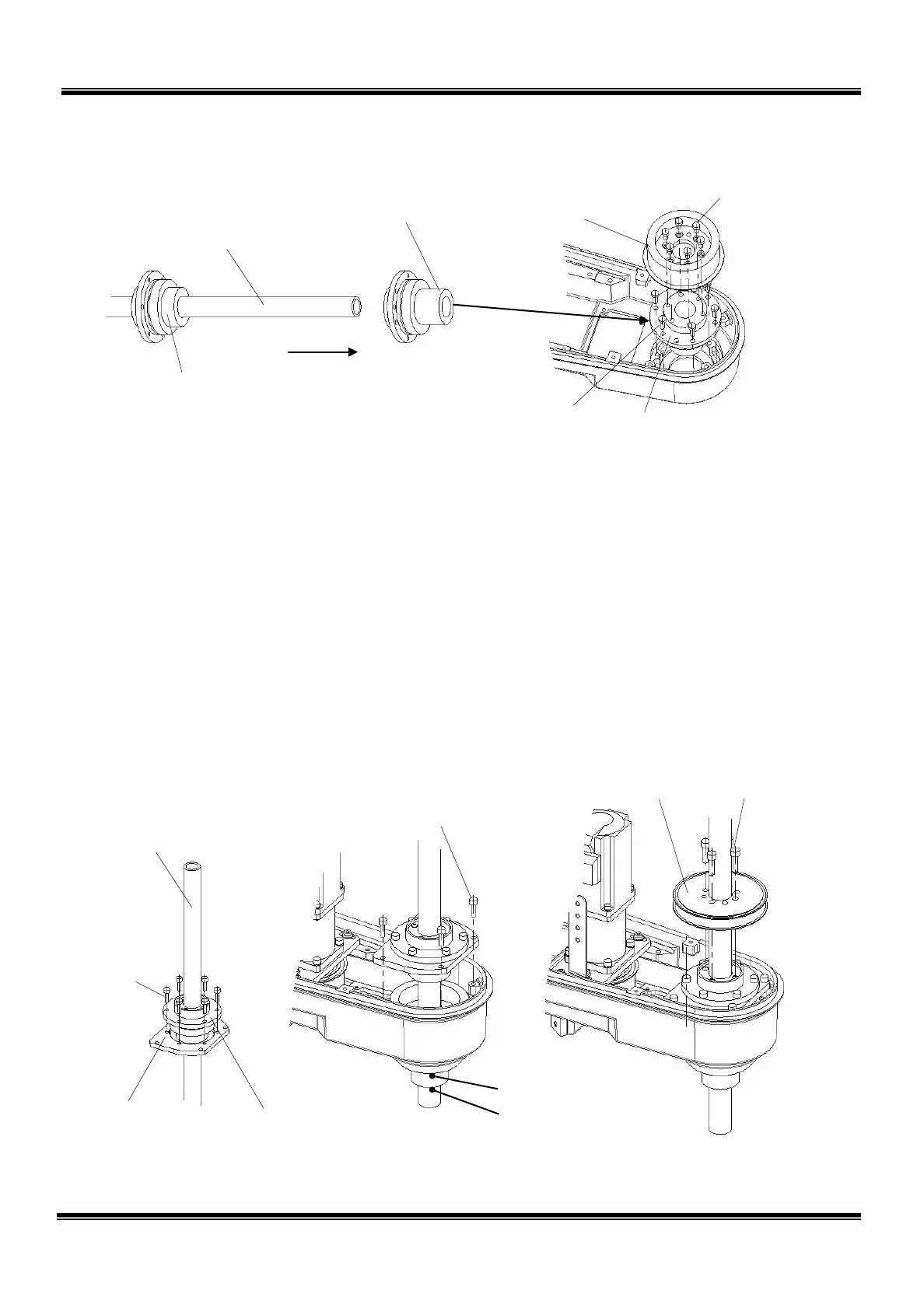

Nut flange
M5×16
Ball screw nut
Ball screw spline shaft
Marking on shaft
Marking on ball spline nut
M5×16
Recommended clamping
torque: 8.8 N
·m
Axis 3 nut pulley
M6×20
Recommended clamping
torque: 17 N
·m
4) Mount the axis 4 timing belt and axis 4 motor, then adjust the belt tension.
5) Mount the ball screw nut integrated with the shaft onto the nut flange, then pass
them through the ball spline nut. At this time, align the phases of both
markings put on the tip of the ball spline nut and the shaft.
6) Secure the nut flange to the arm 2 with the four (4) bolts (M5 × 16).
At first, tighten the bolts temporarily. Move the shaft up and down by hand and
make sure that it moves smoothly, then tighten the bolts completely.
7) Mount the axis 3 nut pulley with the four (4) bolts (M6 × 20).
Ball spline nut
Low head bolt M5×16
Recommended clamping
torque: 5.7 N·
m
Ball spline nut
Axis 4 nut pulley
M5×10
Recommended clamping
torque: 8.8 N
·m
Ball screw spline shaft
Ball screw nut
STE 85306
– 61 –
