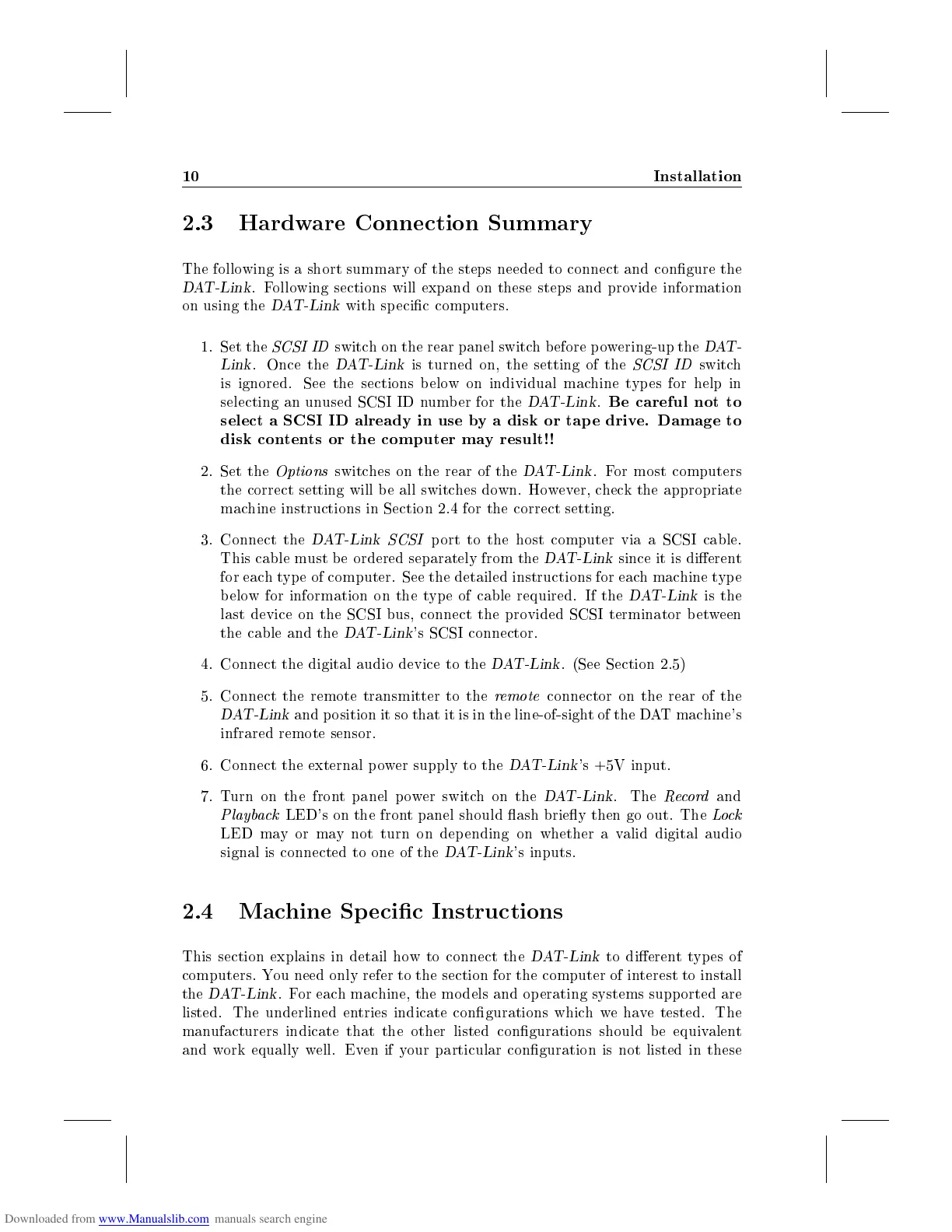

10 Installation
2.3 Hardware Connection Summary
The following is a short summary of the steps needed to connect and congure the
DAT-Link
. Following sections will expand on these steps and provide information
on using the
DAT-Link
with sp ecic computers.
1. Set the
SCSI ID
switch on the rear panel switch before p owering-up the
DAT-
Link
. Once the
DAT-Link
is turned on, the setting of the
SCSI ID
switch
is ignored. See the sections b elow on individual machine types for help in
selecting an unused SCSI ID numb er for the
DAT-Link
.
Be careful not to
select a SCSI ID already in use by a disk or tap e drive. Damage to
disk contents or the computer may result!!
2. Set the
Options
switches on the rear of the
DAT-Link
. For most computers
the correct setting will b e all switches down. However, check the appropriate
machine instructions in Section 2.4 for the correct setting.
3. Connect the
DAT-Link
SCSI
port to the host computer via a SCSI cable.
This cable must be ordered separately from the
DAT-Link
since it is dierent
for eachtyp e of computer. See the detailed instructions for each machine type
below for information on the type of cable required. If the
DAT-Link
is the
last device on the SCSI bus, connect the provided SCSI terminator between
the cable and the
DAT-Link
's SCSI connector.
4. Connect the digital audio device to the
DAT-Link
. (See Section 2.5)
5. Connect the remote transmitter to the
remote
connector on the rear of the
DAT-Link
and position it so that it is in the line-of-sight of the DAT machine's
infrared remote sensor.
6. Connect the external p ower supply to the
DAT-Link
's +5V input.
7. Turn on the front panel power switch on the
DAT-Link
. The
Record
and
Playback
LED's on the front panel should ash briey then go out. The
Lock
LED may or may not turn on dep ending on whether a valid digital audio
signal is connected to one of the
DAT-Link
's inputs.
2.4 Machine Sp ecic Instructions
This section explains in detail how to connect the
DAT-Link
to dierenttypes of
computers. You need only refer to the section for the computer of interest to install
the
DAT-Link
. For each machine, the mo dels and operating systems supported are
listed. The underlined entries indicate congurations which we have tested. The
manufacturers indicate that the other listed congurations should be equivalent
and work equally well. Even if your particular conguration is not listed in these

Table of Contents
