Port Configuration
3-85
3
- System priority is combined with the switch’s MAC address to form the LAG
identifier. This identifier is used to indicate a specific LAG during LACP
negotiations with other systems.
• Admin Key – The LACP administration key must be set to the same value for ports
that belong to the same LAG. (Range: 0-65535; Default: 1)
• Port Priority – If a link goes down, LACP port priority is used to select a backup
link. (Range: 0-65535; Default: 32768)
Set Port Partner – This menu sets the remote side of an aggregate link; i.e., the
ports on the attached device. The command attributes have the same meaning as
those used for the port actor. However, configuring LACP settings for the partner
only applies to its administrative state, not its operational state, and will only take
effect the next time an aggregate link is established with the partner.
Web – Click Port, LACP, Aggregation Port. Set the System Priority, Admin Key, and
Port Priority for the Port Actor. You can optionally configure these settings for the
Port Partner. (Be aware that these settings only affect the administrative state of the
partner, and will not take effect until the next time an aggregate link is formed with
this device.) After you have completed setting the port LACP parameters, click Apply.

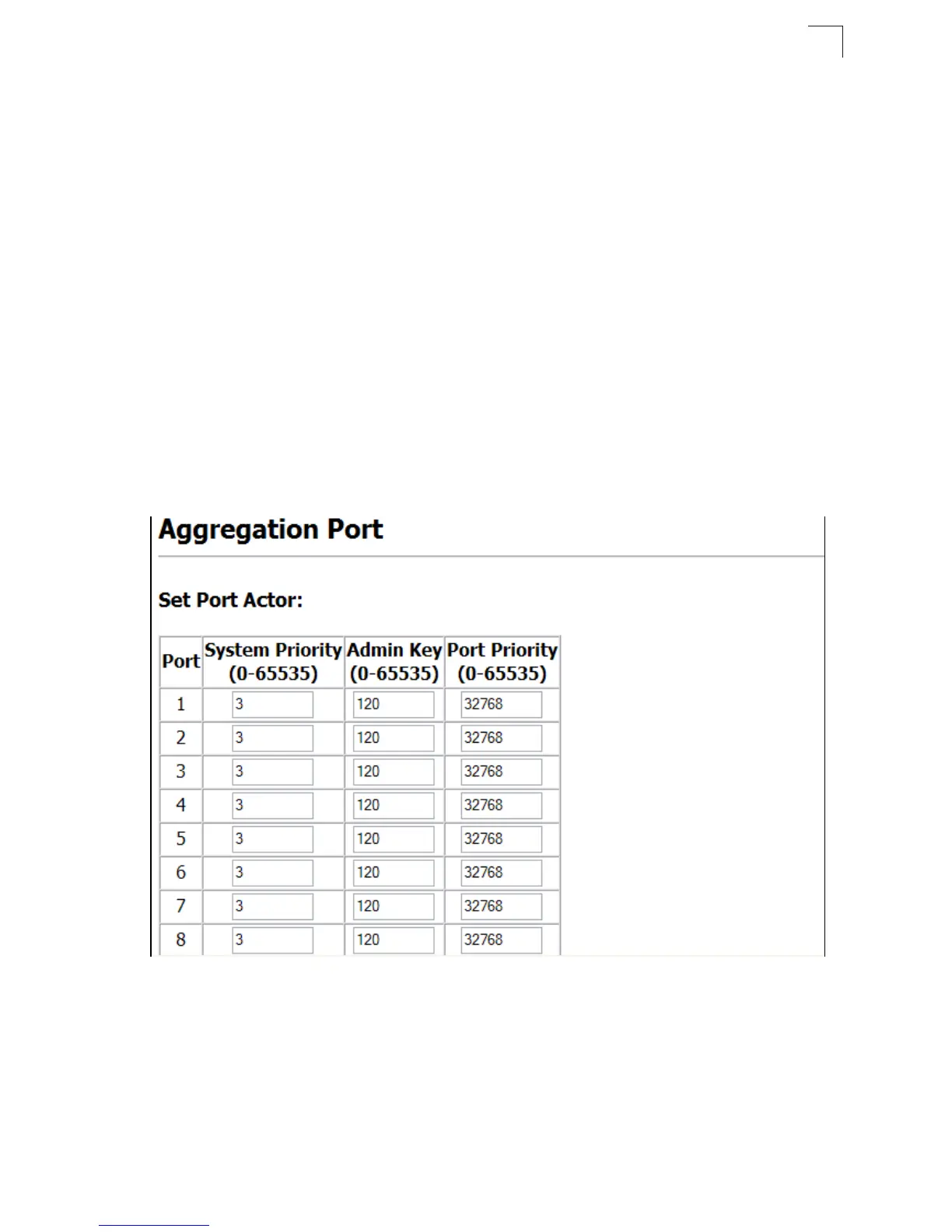

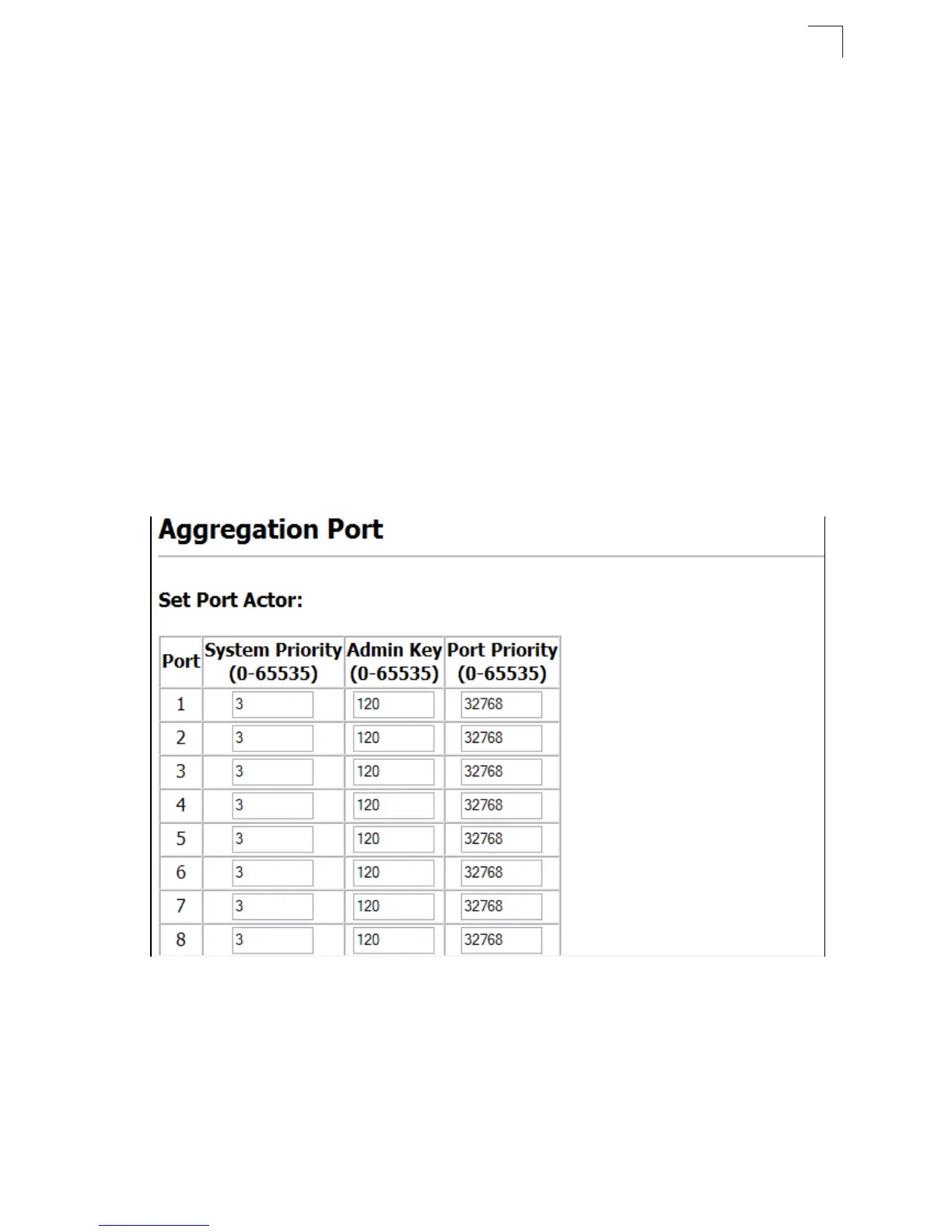

Figure 3-53 LACP Port Configuration
