• Protocol Type – The only option for the LLC Other frame type is IPX Raw. The
options for all other frames types include IP, ARP, or RARP.
Web – Click VLAN, Protocol VLAN, Configuration.

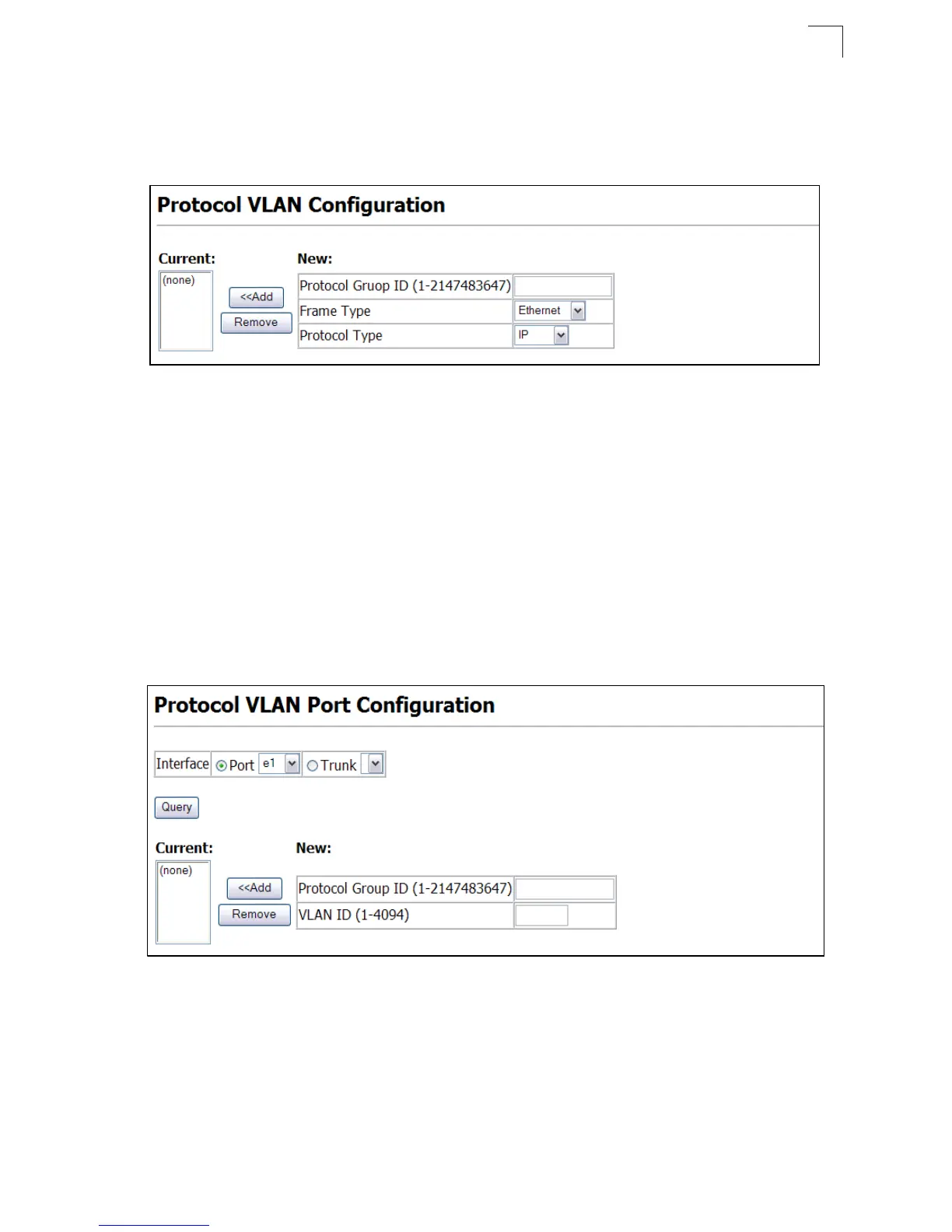

Figure 3-82 Protocol VLAN Configuration
Configuring Protocol VLAN Interfaces
Use the Protocol VLAN Port Configuration menu to set the protocol VLAN settings
per port.
Command Attributes
• Interface – Port or Trunk indentifier.
• Protocol Group ID – Protocol Group ID assigned to the Protocol VLAN Group.
(Range: 1-2147483647)
• VLAN ID – VLAN to which matching protocol traffic is forwarded. (Range: 1-4094)
Web – Click VLAN, Protocol VLAN, Port Configuration.
Figure 3-83 Protocol VLAN Port Configuration
