Configuring Domain Name Service
3-181
3
Web – Click MVR, Group Member Configuration. Select a port or trunk from the
“Interface” field, and click Query to display the assigned multicast groups. Select a
multicast address from the displayed lists, and click the Add or Remove button to
modify the Member list.

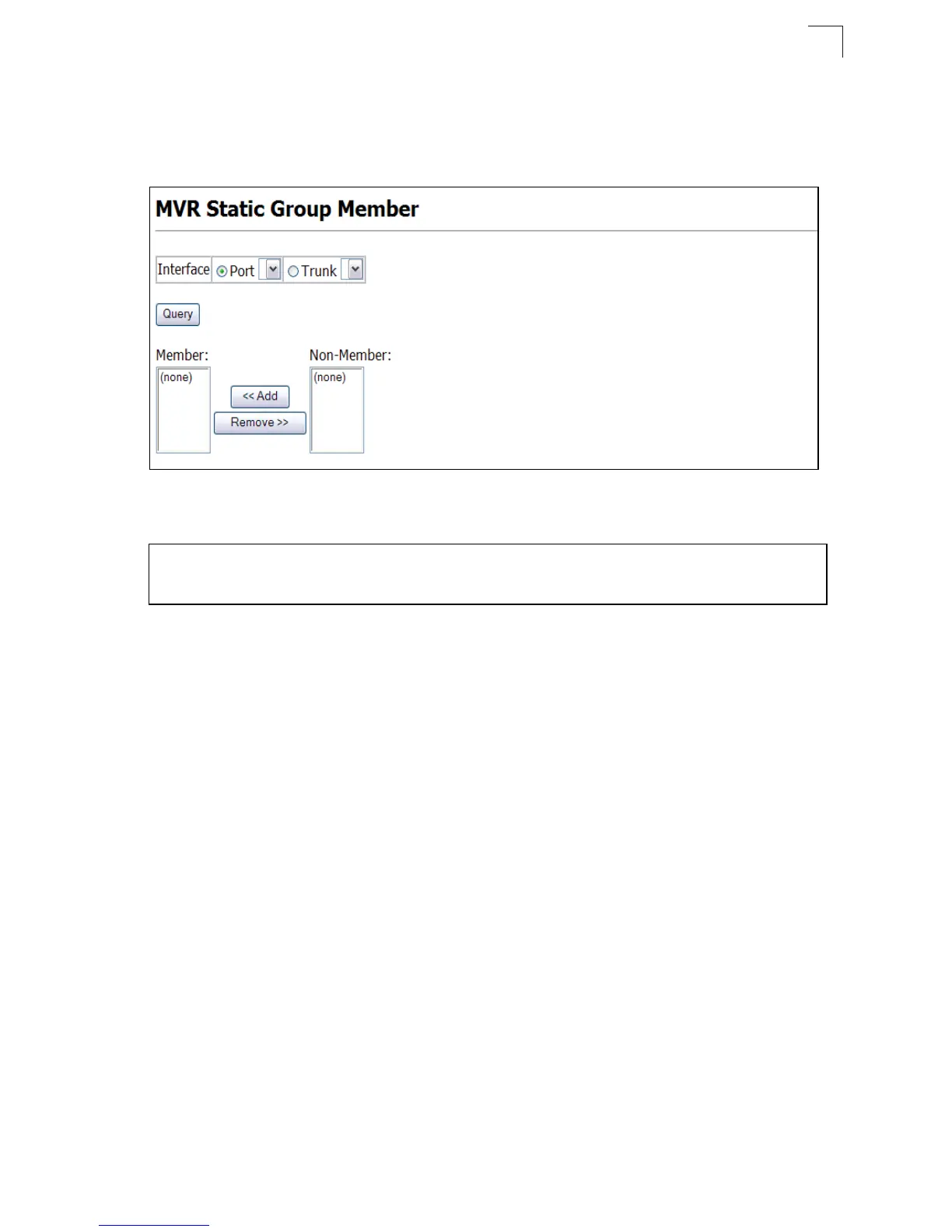

Figure 3-110 MVR Group Member Configuration
CLI – This example statically assigns a multicast group to a receiver port.
Configuring Domain Name Service
The Domain Naming System (DNS) service on this switch allows host names to be
mapped to IP addresses using static table entries or by redirection to other name
servers on the network. When a client device designates this switch as a DNS
server, the client will attempt to resolve host names into IP addresses by forwarding
DNS queries to the switch, and waiting for a response.
You can manually configure entries in the DNS table used for mapping domain
names to IP addresses, configure default domain names, or specify one or more
name servers to use for domain name to address translation.
Configuring General DNS Service Parameters
Command Usage
• To enable DNS service on this switch, first configure one or more name servers,
and then enable domain lookup status.
• To append domain names to incomplete host names received from a DNS client
(i.e., not formatted with dotted notation), you can specify a default domain name or
a list of domain names to be tried in sequential order.
• If there is no domain list, the default domain name is used. If there is a domain list,
the default domain name is not used.
Console(config)#interface ethernet 1/2
Console(config-if)#mvr group 228.1.23.1 4-219
Console(config-if)#
