Quality of Service
3-161
3
Attaching a Policy Map to Ingress Queues
This function binds a policy map to the ingress queue of a particular interface.
Command Usage
• You must first define a class map, then define a policy map, and finally bind the
service policy to the required interface.
• You can only bind one policy map to an interface.
• The current firmware does not allow you to bind a policy map to an egress queue.
Command Attributes
• Ports – Specifies a port.
• Ingress – Applies the rule to ingress traffic.
• Enabled – Check this to enable a policy map on the specified port.
• Policy Map – Select the appropriate policy map from the scroll-down box.
Web – Click QoS, DiffServ, Service Policy Settings. Check Enabled and choose a
Policy Map for a port from the scroll-down box, then click Apply.

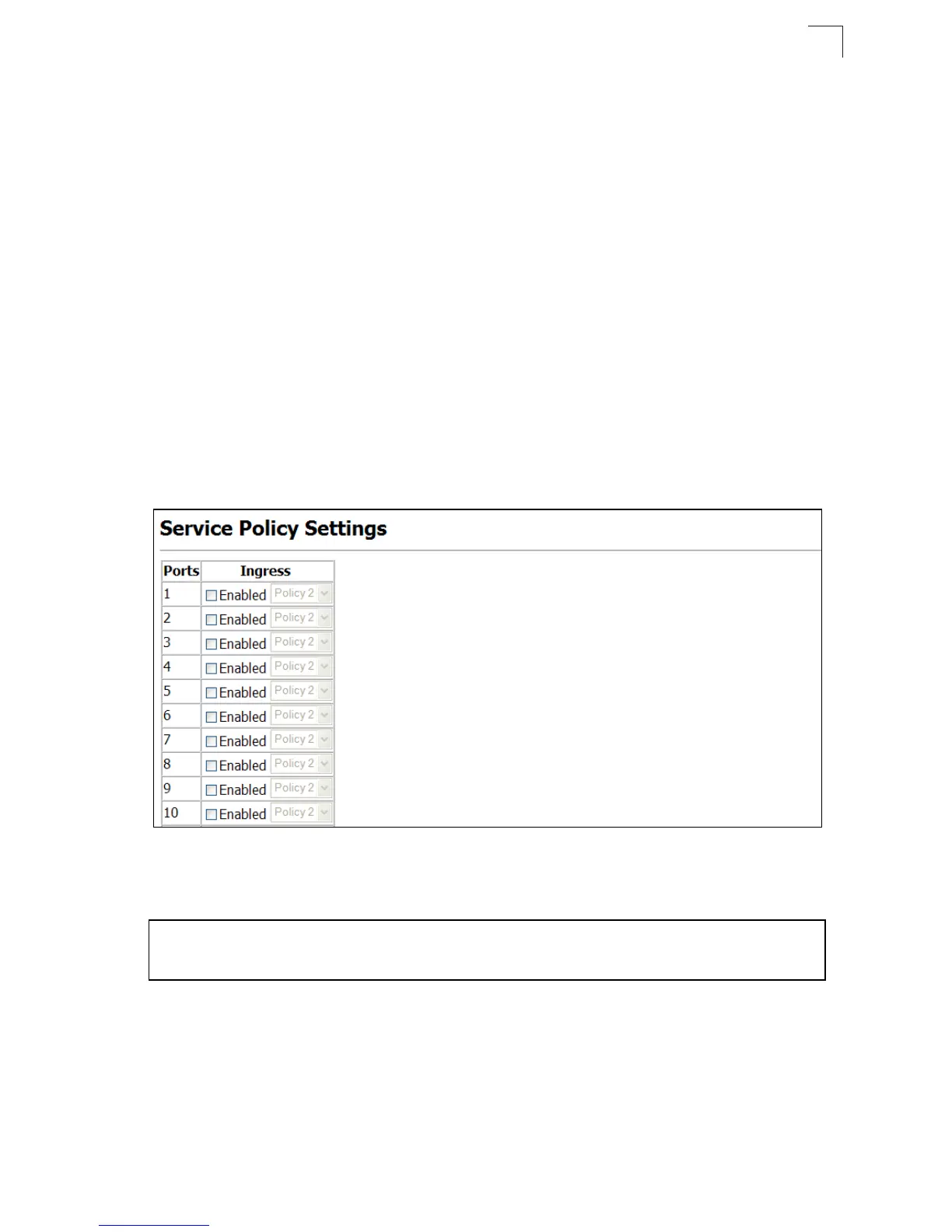

Figure 3-96 Service Policy Settings
CLI - This example applies a service policy to an ingress interface.
Console(config)#interface ethernet 1/5 4-120
Console(config-if)#service-policy input rd_policy#3 4-203
Console(config-if)#
