II. Functions & Controls
A. Front Panel
CABLE FOR FLOWPROBE /FLOWSENSOR CONNECTION
Two meter cable attached to accept HQ-style connector of Flowprobe/Flowsensor.
DEFIBRILLATOR - PROOF TYPE CF
Cardiac-oating equipment.
FLOWSOUND
®
ON/OFF
Turns FlowSound
®
on and off. Volume control knob is located on the
rear panel.
INVERT ON/OFF
Reverses the polarity of the ow signal on the AureFlo
®
Monitor
screen, chart recorder, front panel LED display, rear panel analog
outputs and USB connector.
PRINT ON/OFF
Starts and stops the chart recorder.
CHART RECORDER
(Not provided on Models HT310-FT, HT320-HT, HT350 & HT360)
The chart recorder automatically scales the paper to the ow being
measured.
LED ALPHANUMERIC DISPLAY
● ULTRASOUND SIGNAL QUALITY
● MEAN VOLUME FLOW in mL or L/min and
● STATUS/ERROR MESSAGES

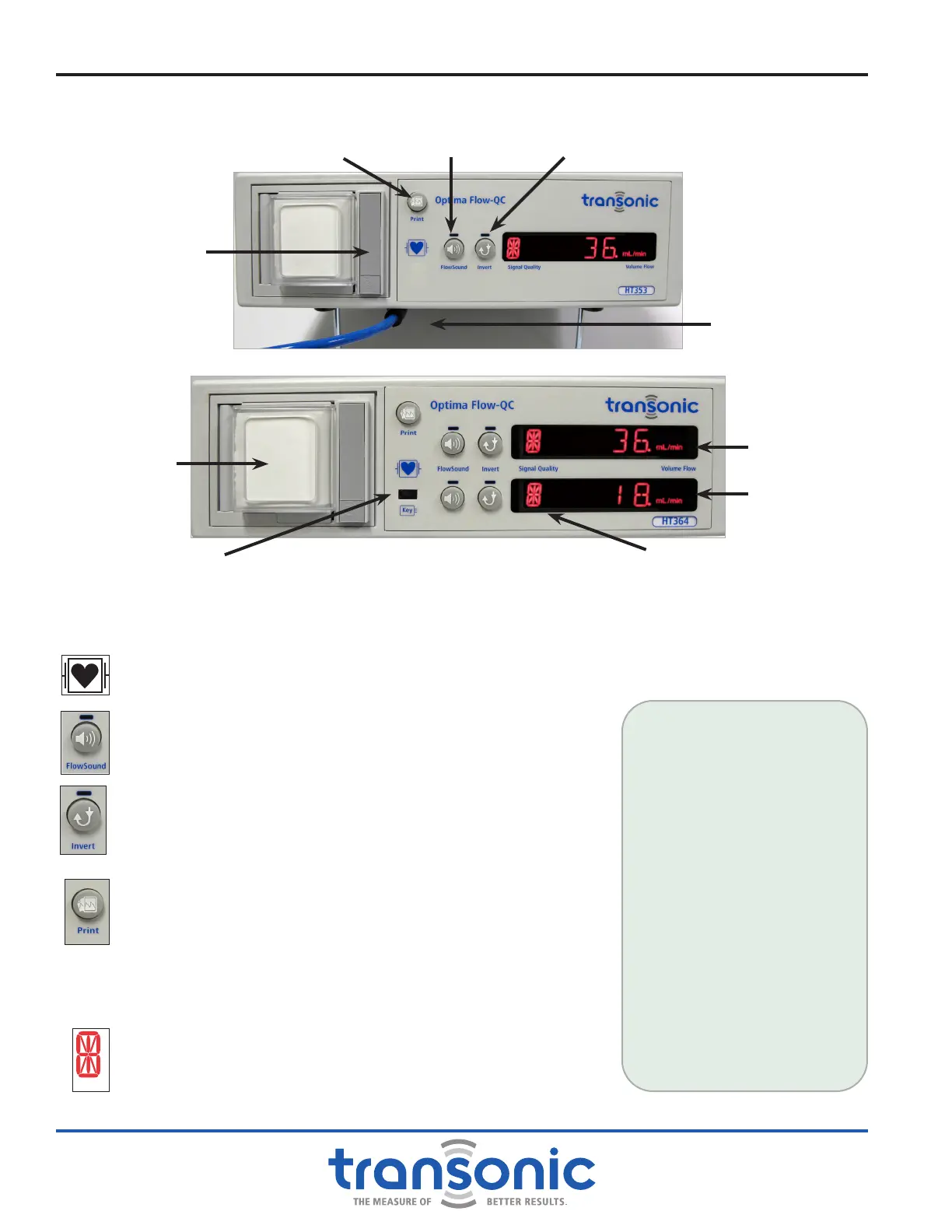

Fig. 2.1: HT353 Flowmeter Front Panel
Chart Recorder
Print On/Off
Signal Quality Indicator
Chart Recorder Door
LED
Alphanumeric
Display
FlowSound
®
On/Off
Invert On/Off
Disposable Flow-QC
®
Key Port
Cable for Flowprobe/
Flowsensor Connection
Fig. 2.2: HT364 Flowmeter Front Panel
BENEFITS OF
FLOWSOUND
®
Provides audio feedback on
signal quality. The surgeon
can hear when there is good
contact while still focusing on
the surgical eld.
The surgeon has
instantaneous feedback on
changing ow conditions.
FOR EXAMPLE: A surgeon can
manipulate a kinked vessel or
graft and immediately detect
an improvement in ow.
FlowSound
®
warns that a key
activation period is ending
by emitting three beeps
each minute for the last ve
minutes of key activation.
