D. AureFlo
®
Cart
The AureFlo
®
Cart holds the AureFlo
®
Monitor, one HT300 Series
Compatible Flowmeter and a standard PC printer. It provides AC power
to the Flowmeter and touch-panel display, and an isolated 18VDC power
supply for a Transonic
®
recommended printer. The cart has two xed
shelves, 1 sliding drawer, 1 VESA mount for the Panel PC and 1 mounting
bracket for an HT300 (-FT) Series Compatible Flowmeter (Fig. 1.1).
E. HT300 Series (-FT) Compatible Flowmeters
HT300 Series Flowmeters house electronics for processing ultrasonic
transit-time ow signals. AureFlo
®
works with HT300(-FT) Series
FlowTrace
®
Compatible Flowmeters ONLY. For AureFlo
®
to work with
HT300 Series Flowmeters not listed below, the Flowmeter must be
returned to Transonic
®
for an -FT upgrade (IX. Equipment Return
Instructions, page 34). All HT35x/HT36x Series Flowmeters are
FlowTrace
®
compatible without requiring an upgrade.
The table below lists all HT300(-FT) Series FlowTrace
®
Compatible Flowmeters with their distinguishing
features (channels, RoHS compliance, key operated) and compatible Flowprobe/ Flowsensor Series.
MODEL # # OF CHANNELS
COMPATIBLE
FLOWPROBE SERIES
FLOWPROBES #
OF USES
RoHS
COMPLIANT
KEY
ACTIVATED
HT310-FT 1 HQD- 50 No No
HT312-FT 1 H QC- 8, 16 No No
HT313-FT 1 HQD- 50 No No
HT314-FT 1 HQD- 50 No Yes
HT320-FT 2 HQD- 50 No No
HT322-FT 2 HQ C- 8, 16 No No
HT323-FT 2 HQD- 50 No No
HT331-FT 1 HQN- 1, 16 No No
HT350 1
All HQ-Series
Perivascular Flowprobes
(HQC-, HQD-, HQE-,
HQF-, HQG- & HQN-)
1, 8, 16, 50* Yes No
HT353 1 1, 8, 16, 50* Yes No
HT353C 1 1, 8, 16, 50* Yes No
HT354 1 1, 8, 16, 50* Yes Yes
HT354C 1 1, 8, 16, 50* Yes Yes
HT360 2 1, 8, 16, 50* Yes No
HT363 2 1, 8, 16, 50* Yes No
HT364 2 1, 8, 16, 50* Yes Yes
* Number of Flowprobe uses depends on Flowprobe Series (some Probes are available in multiple versions with different number of
uses). Length of measurement period is also Probe type dependant.

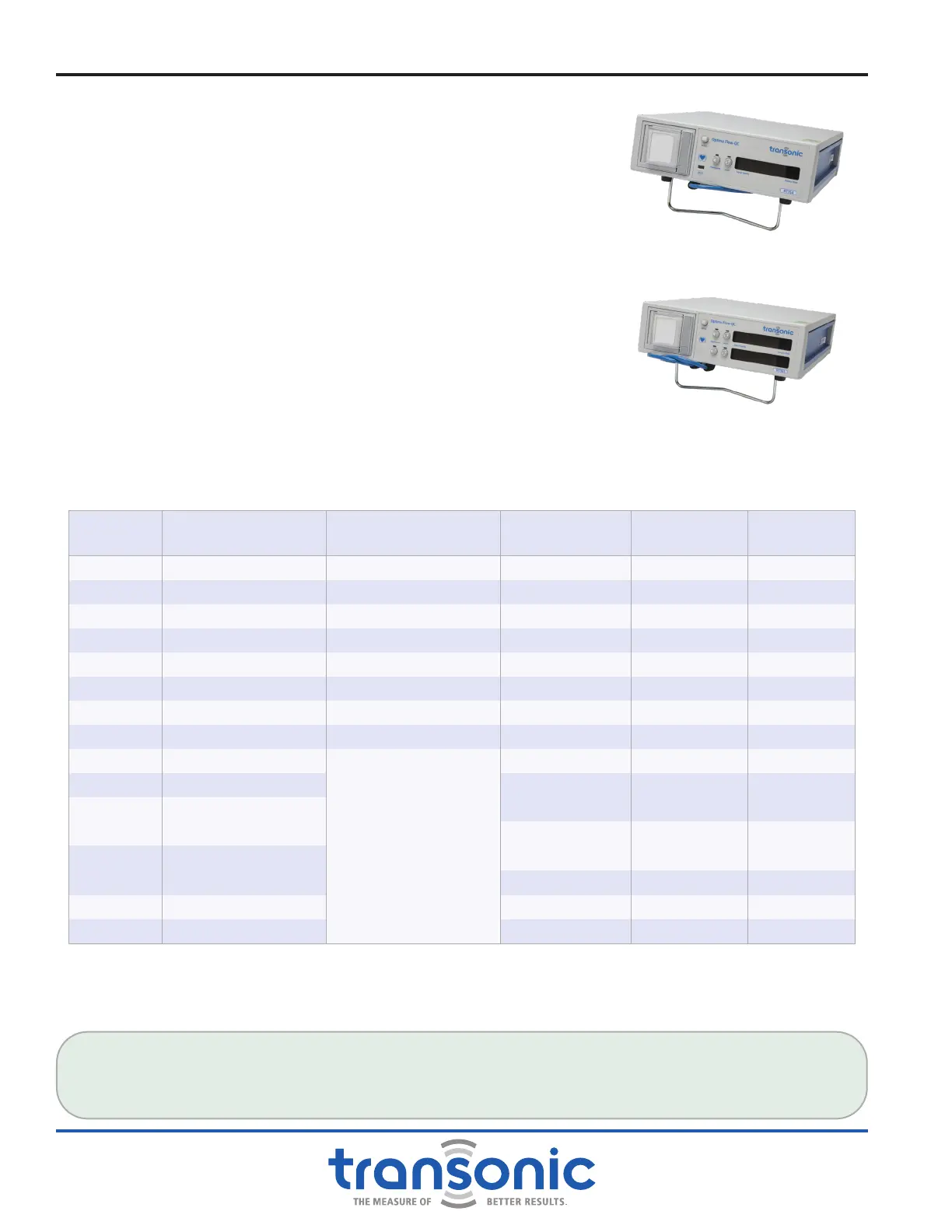

Fig. 1.2: HT354 Single Channel Flowmeter
Fig. 1.3: HT363 Dual-Channel Flowmeter
Introduction
FLOWTRACE
®
(-FT) COMPATIBILITY
Isolated USB ports on the back panel of HT300 Series FlowTrace
®
Compatible Flowmeters provide a
digital output to FlowTrace
®
. Older Flowmeters must be upgraded by factory authorized service staff to
communicate with FlowTrace
®
.
