AU-OPR-AureFloFT-EN,
Rev H
7
B. Back Panel
POWER ON/OFF SWITCH
To turn on power press (—) to turn off power press
(0)
ANALOG OUTPUTS
UNISCALE Output: 10 Hz low pass ltered;
Automatic gain adjustment for xed scaling of
multiple Probe sizes. Accepts 1/8"miniphono
connector.
HT31x-FT & HT35x: 1 Uniscale output
HT32x-FT & HT36x: 2 Uniscale outputs
SENSITIVITY SWITCHES
To select the Uniscale scaling for analog outputs
SCALE SIGNAL BUTTON
To set scaling of external devices connected to
Uniscale and USB outputs.
PRESSURE INPUT
1/4” Phono Jack input for pressure signal from
patient monitor.
ECG INPUT
1/4” Phono Jack input for ECG signal from patient
monitor.
USB PORT
For USB (Type B) connection to a PC-style
computer
FLOWSOUND
®
VOLUME CONTROL
Adjusts the volume level of the audio output.
CHART RECORDER MODE
RUN/STOP: for continuous printing at 20 mm/sec
SLOW: Prints strip at 20 mm/sec
FAST: Prints strip at 40 mm/sec

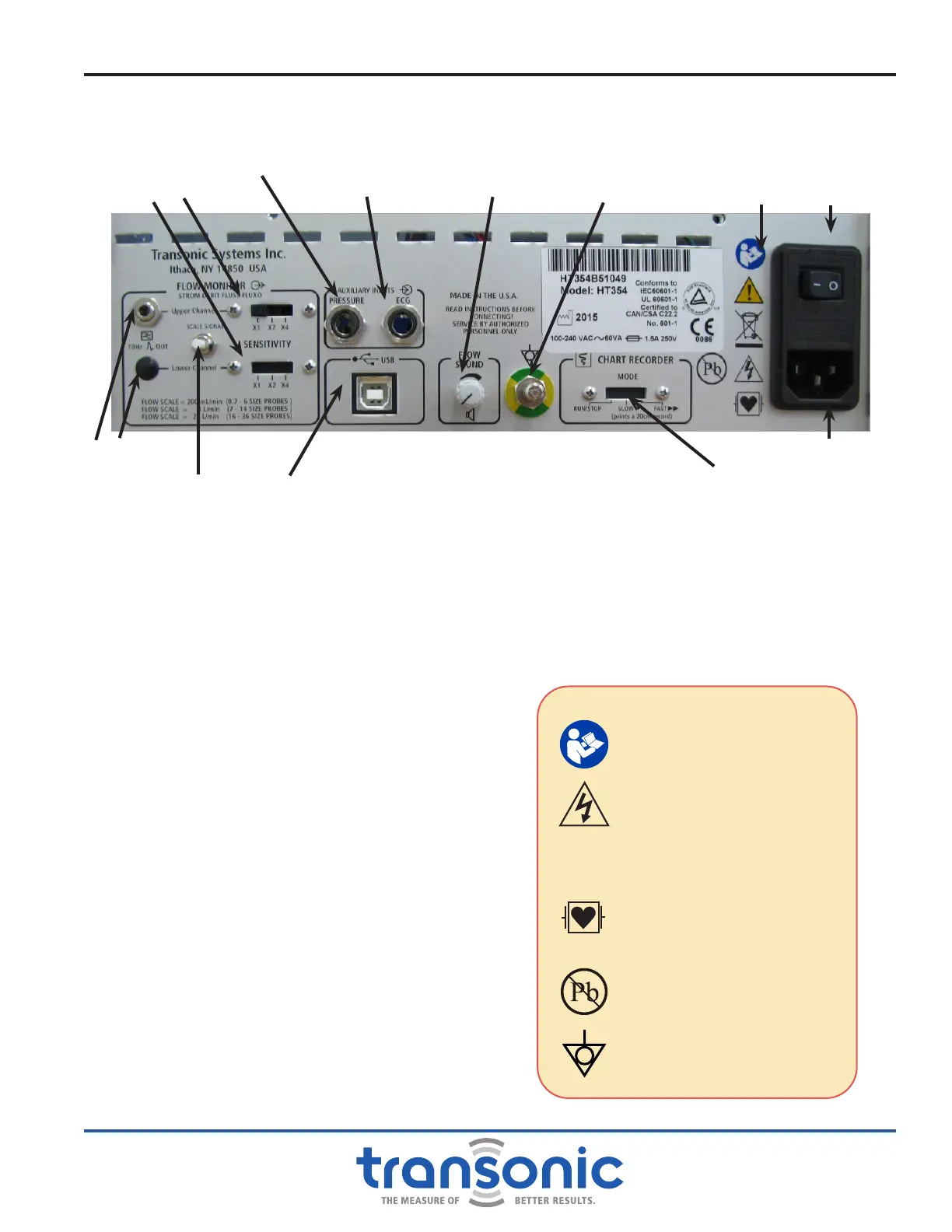

Fig. 2.5: HT35x/HT36x Flowmeter Back PanelAnalog Outputs
Sensitivity Switches
Auxiliary Analog
Input (ECG)
FlowSound
®
Volume
Control
Safety Legends
Power On/Off
Switch
Power Supply Plug
Scale Signal Button
Chart Recorder Mode
Switch
Ground Pin
USB Port
WARNINGS
Attention: Consult
accompanying documents
Dangerous Voltage: service
by trained technicians only
C
2797
CE Conformity Mark
Debrillator proof type CF
equipment when used with
the proper cables.
This device was manufactured
in accordance with RoHS
standards for lead content.
Equipotentiality pin:
Instrument ground
Functions & Controls
Pressure Input
