User's Manual
750 50 0042 03 14

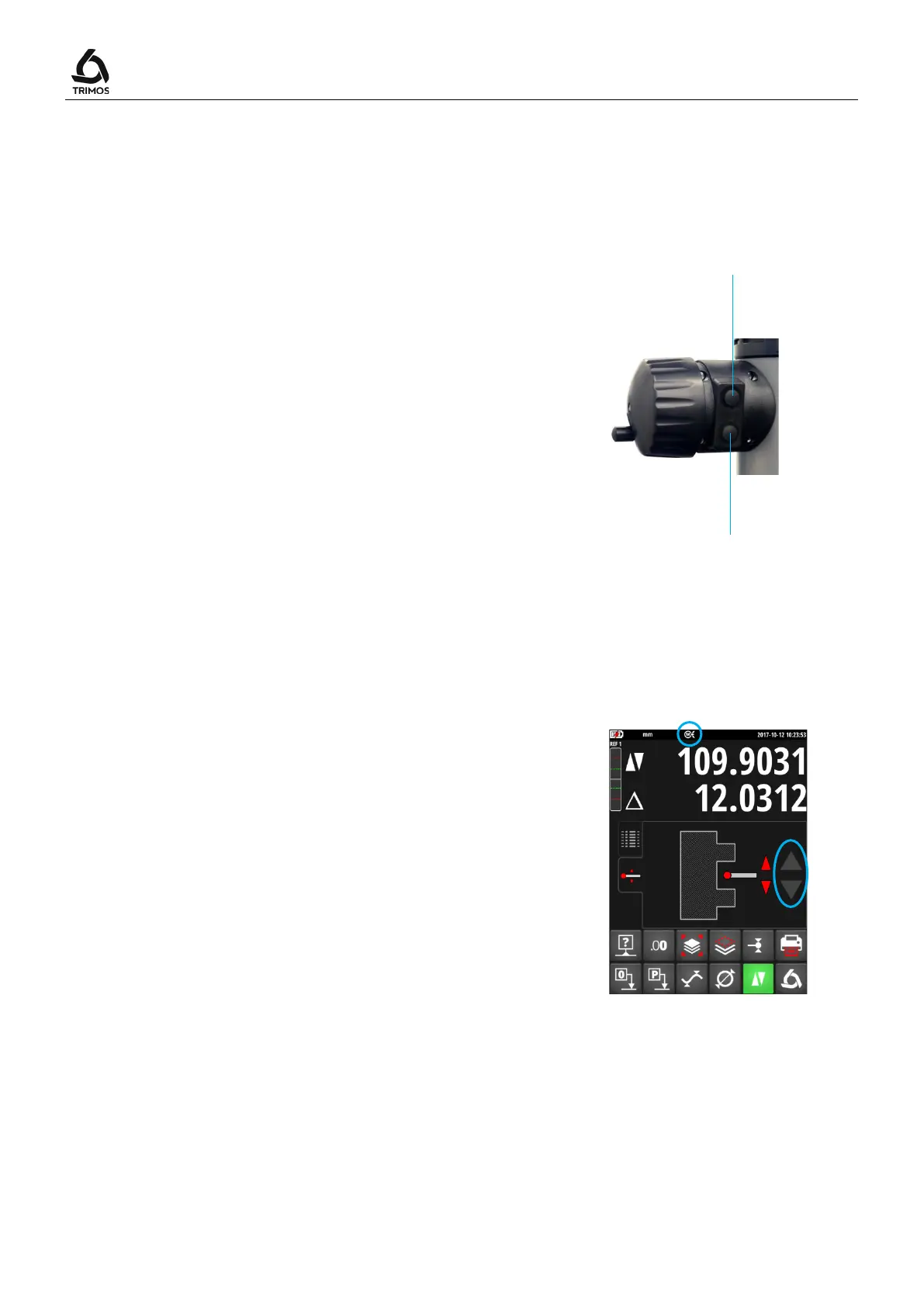

Motorised displacement is carried out with the help of 2
buttons placed behind the handwheel or in some cases
the touchscreen.
Rapid Displacement
A prolonged press on one of the buttons causes a rapid
movement in the chosen direction. The carriage will
continue its displacement as long as the pressure is
maintained.
Slow Displacement (Probing)
A short pressure causes a continuous displacement in
probing speed, i.e. speed used for measuring. As soon
as the probe gets in touch with a surface, a
measurement is made.
Release of Probe
When the probe is in contact with the part (after
probing), a short pressure on the button for the opposite
direction allows to release the probe (ca. 0.5 mm).
Movement Stop
While displacing in low speed mode, a short pressure on
the button for the same direction as that of the
displacement will stop the movement.
When the graphic display mode is selected, the
displacement is carried out with the help of 2 grey
arrows to the right of the screen.
Its usage is identical to the one described above in case
of buttons.
displacement
displacement
