Troxler 3440-L User Manual
4
of 1
of 1 rating
210 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
TRANSPORT CASE
GAUGE
AC CHARGER
DC ADAPTER
SCRAPER PLATE/
DRILL ROD GUIDE
DRILL
ROD
EXTRACTION
TOOL
REFERENCE
BLOCK
GAUGE CER
TIFICA
TE
& WARRANTY
OPERA
TOR'S MANUAL W/
Q
UICK REFERENCE
GUIDE
1. INTRODUCTION

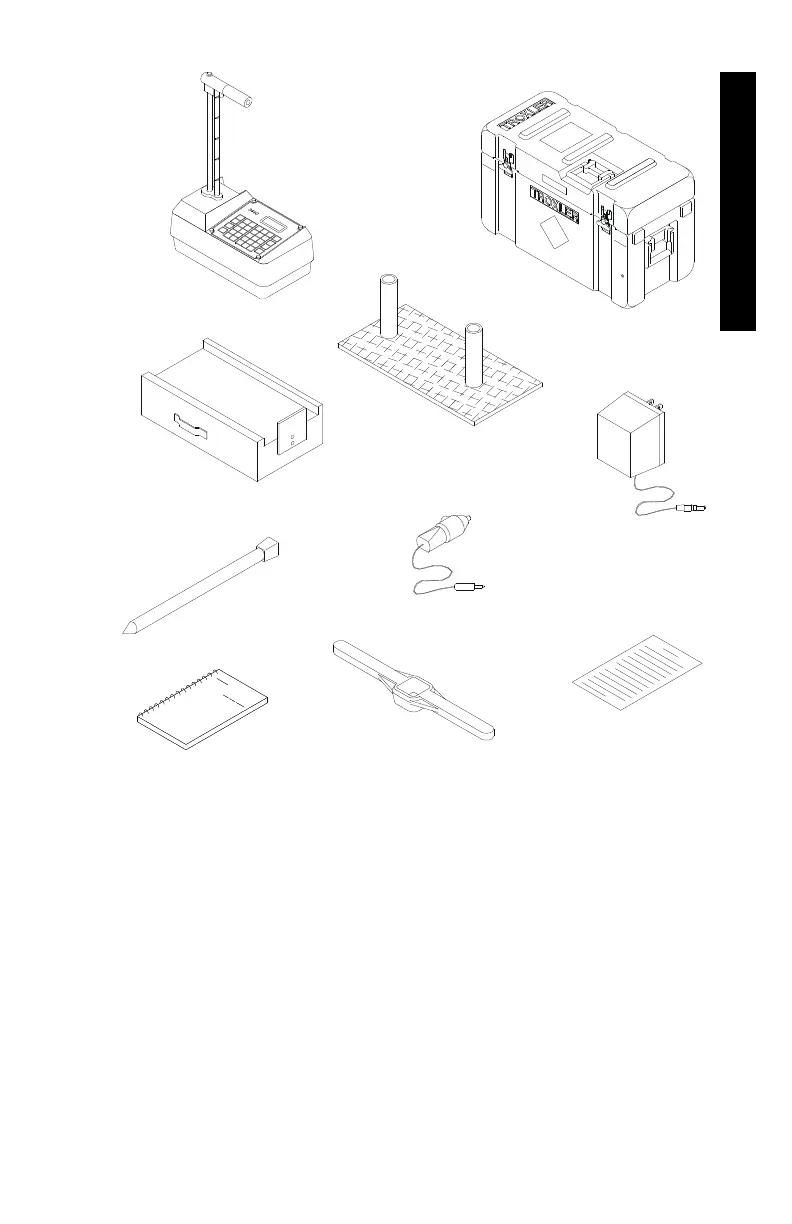

Figure 1–1. 3440-L Gauge and Standard Accessories
Model 3440-L
1–5
18
20
Table of Contents
Table of Contents
7
Chapter 1. Introduction to the Model 3440-L
15
Introduction
16
Gauge and Accessories
18
Control Panel Keypad
20
Chapter 2 Getting Started
23
Default Chapter
24
Turning the Gauge on
24
Daily Inspection
24
Basic Parameter Setup
26
Setting Measurement Units
26
Count Time Selection
27
Mode Selection
28
Selecting a Project Number
30
Setting the Clock/Calendar
33
Taking the Standard Count
35
Viewing the Last Four Standard Counts
39
Chapter 3. Measurement Site Preparation
41
Soil and Base Course Preparation
42
Asphalt Surface Preparation
44
Chapter 4 . Taking a Density/Moisture Measurement
46
Taking a Reading
46
Storing a Reading
48
Table of Contents
53
Chapter 5 . 3440-L Operations
55
Offsetting a Reading
55
Count Time Function
64
Store Function
64
Recall a Stored Proctor/Marshall Value
66
Enter a New Proctor/Marshall Value
66
Voidless Density Value
67
Status Function
68
Mode Function
69
Project Function
69
Print Function
70
Printing a Single Project
71
Erase Function
73
Counts Function
73
Recall Function
74
Depth Function
74
Manual Mode
74
Automatic Mode
75
Calculator Function
76
Addition
76
Subtraction
77
Division
77
Multiplication
77
Chain Calculations
77
Memory Storage Arithmetic
77
Chapter 6 Special Functions
79
Stat Test
81
Viewing Stat Test Data
83
Printing Stat Test Data
84
Drift Test
85
Execute Drift Test
85
Viewing Drift Test Data
86
Recover Erase
87
Keypad Data
88
Auto-Station
89
Special Calibration
90
Enable Special Calibration
90
Disable a Special Calibration
91
Perform a Special Calibration (Recalibration)
91
Nomograph
93
Enable Nomograph
94
Disable Nomograph
94
Change/View Nomograph Data
94
Precision
100
Set Units
102
Baud Rate
103
Communication Protocol
104
Battery Monitor
105
Battery Status
107
Source Decay
108
Special Roadway
109
Chapter 7 Extended Functions
111
Time/Date
112
Customer Name
113
Serial Number
114
Calibration Date
115
Calibration Constants
116
Rod Length
118
Erase Standard Counts
119
Burn-In
120
Memory Clear
120
Calibration Standard
121
Remote Control
122
Appendix C Radiological Safety
137
Appendix C
138
Nuclear System. this Appendix Provides a Brief Discussion of General
138
Radiation Types
138
This Appendix Is Required Reading for Anyone Who will Operate the 3440-L
138
Radiation Exposure
139
3440-L Radiation Profile
140
Monitoring Radiation
140
Emergency Procedures
142
Appendix D Licensing Requirements
145
Source Encapsulation
142
Appendix D
146
Radiation Safety Program
146
Security
146
Specific License
146
This Licensing Requirements Outlined in this Appendix Apply to All Troxler
146
Incidents
147
Leak Test
147
Notice to Employees
147
Training
147
Disposal
148
Record Keeping
148
Appendix E Transportation and Shipping
151
Appendix E U.s. Requirements
152
Accident Notification Requirements
153
Hazmat Training
153
Canadian Shipping Requirements
154
Appendix F Periodic Maintenance and Service
155
APPENDIX F Batteries
156
Alkaline Battery Use
157
Mechanical Maintenance
158
Sources
158
Inspecting Source Rod
158
Cleaning the Tungsten Sliding Block
158
Scraper Ring/Tungsten Sliding Block Maintenance
159
Gaskets
161
3440-L Gauge Top Shell
162
Electronic Maintenance
163
3440-L Baseboard Assembly
163
Troubleshooting
164
Error Messages
169
Replacement Parts
170
Accessories
180
Optional Accessories
180
Maintenance Supplies
180
Returning a Gauge for Service
181
Table of Contents
183
APPENDIX G Measurement Specifications
184
Si Units
184
U.s. Customary Units
184
Calibration Specifications
185
Memory Specifications
185
Radiological Specifications
185
Electrical Specifications
186
Mechanical Specifications
187
APPENDIX J Windows Hyperterminal
196
Hyperterminal Setup
196
Equipment Connection
197
Printing (Uploading) Project Data
197
Viewing Project Data
198
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Troxler 3440-L and is the answer not in the manual?
Ask a question
Troxler 3440-L Specifications
General
Brand
Troxler
Model
3440-L
Category
Measuring Instruments
Language
English
Related product manuals
Troxler 3401
210 pages
Troxler 3401-B
109 pages
Troxler 3430 Plus
218 pages
Troxler 3400-B Series
109 pages
Troxler RoadReader 3430
182 pages
Troxler 3241-C
131 pages
Troxler 3241 Series
131 pages
Troxler EGauge 4590
186 pages
Troxler 4640-B
140 pages
Troxler EGauge Combo 4540
188 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
